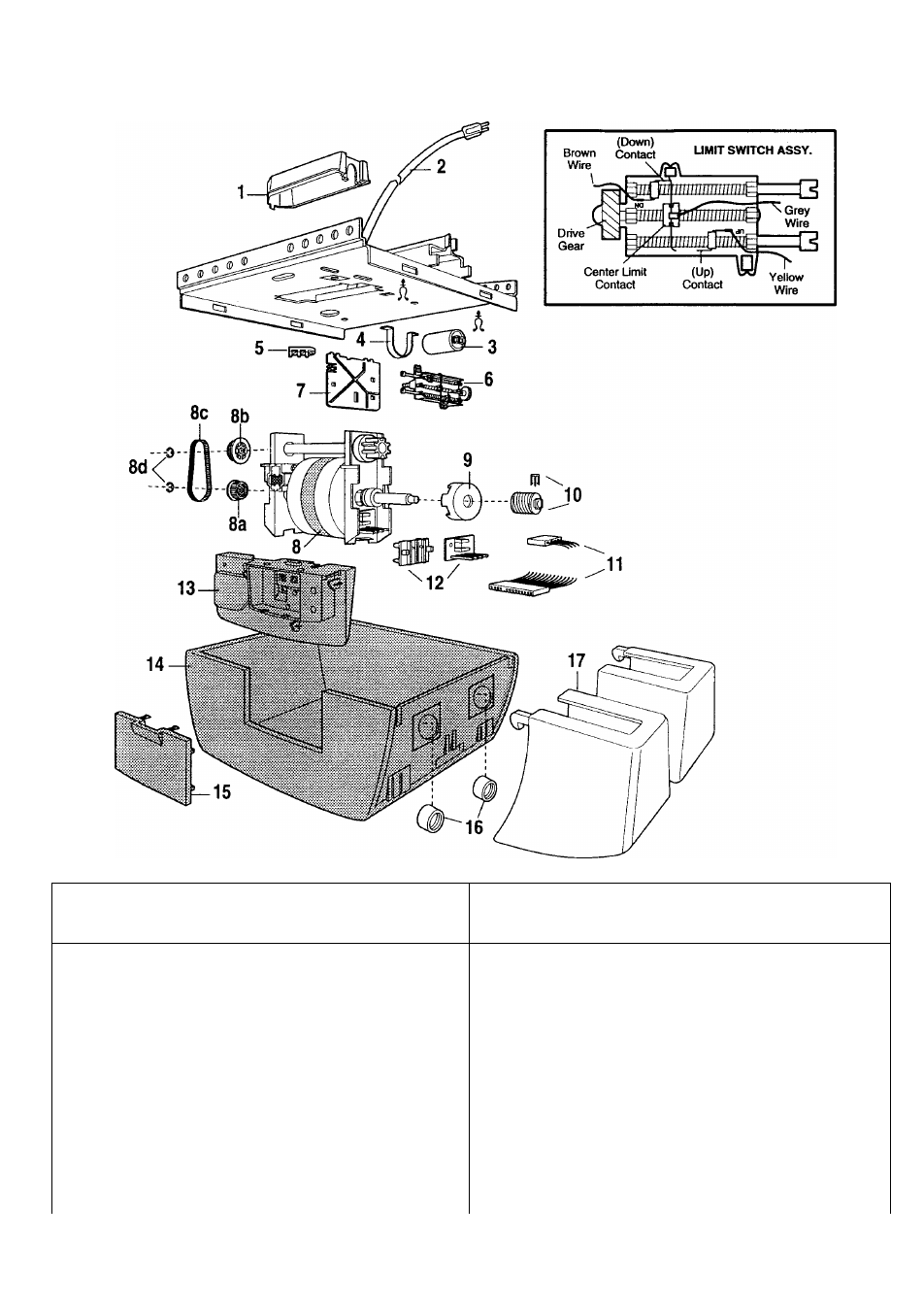

Repair Parts
Power Unit Parts
KEY
NO.
PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1
31D426
Drive shaft cover
9
41A4843
Interrupter cup
2
41B4245
Line cord
10
41A4837
Worm gear and retainer
3
30B363
Capacitor - 1/2 HP
11
41C4669
Wire harness assembly
30B387
Capacitor - 1/3 HP
12
41C4672
RPM sensor assembly
4
12A373
Capacitor bracket
13
41D4674-1D Receiver logic board assembly
5
41 A3150
Terminal block w/screws
14
41D4839-1
Cover-LM 1/2 HP
6
41D4671
Limit switch assembly
41D4839-4
Cover-LM 1/3 HP
7
12D554
Limit switch bracket
15
1C4840-1
Control Center access door
8
41D4759
Complete Motor Drive Assy., with 16
175C121
Light socket
8a
144B41
22T Pulley
17
108D47
Light lens
8b
144B42
28T Pulley
8c
20C14
Drive Belt
8d
158A69
Retainer Ring
