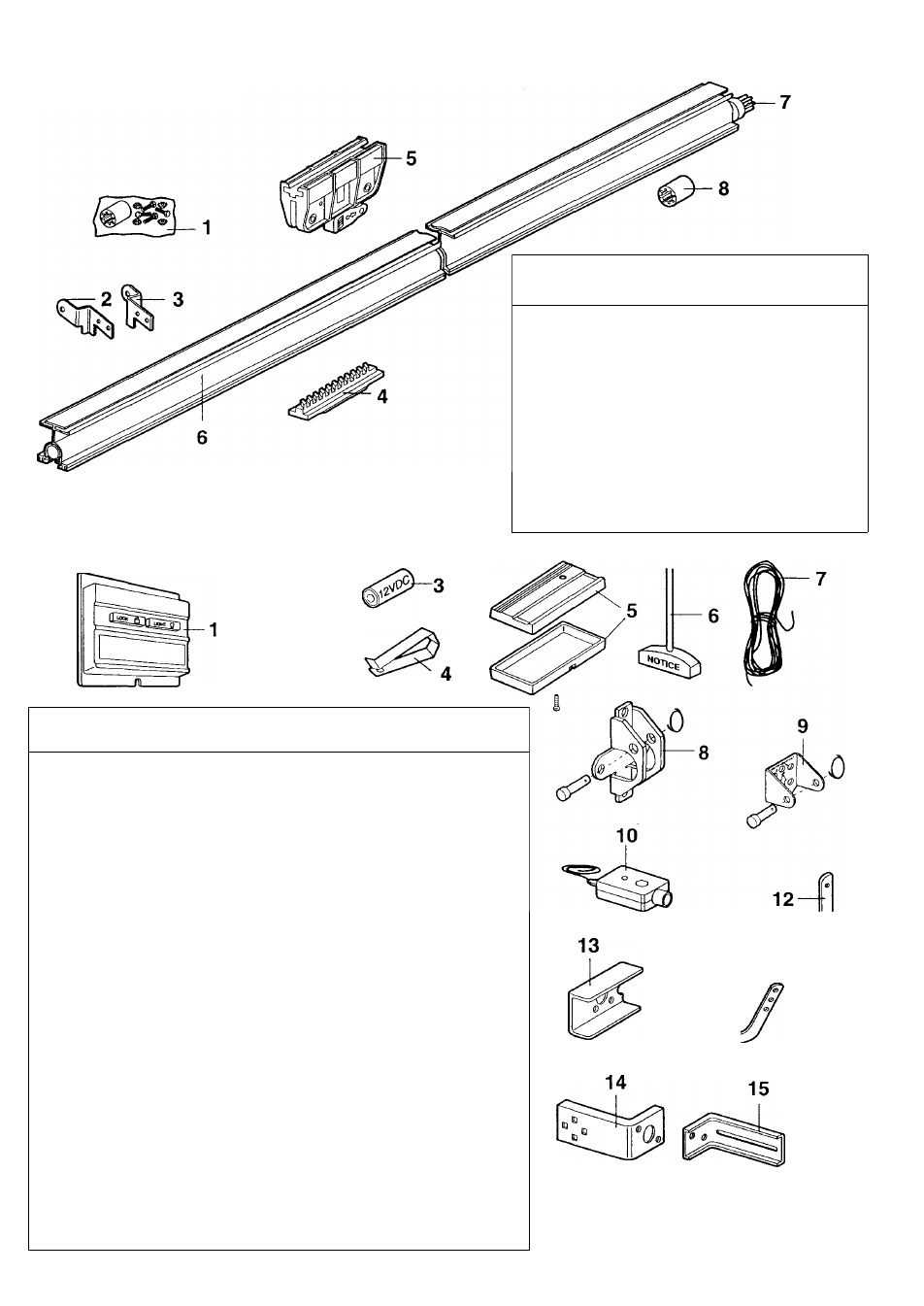

Repair Parts
r
Rail Assembly Parts
KEY
NO.
PART
NO.
DESCRIPTION
1
41A4795
Hardware bag (Includes
sprocket coupling)
2
12B569-1 Left rail bracket
3
12B569-2 Right rail bracket
4
81C168
Rack
5
41C4677
Complete trolley
assembly
6
1D4828-1 One-piece T-rail
7
41A4836
Drive sprocket kit
8
25A18
Sprocket coupling
Installation Parts
KEY
NO.
PART
NO.
DESCRIPTION
1
41A4202A
Multi-function door control panel
2
41A4166
Lighted door control button
3
10A14
12V battery
4
29C128
Transmitter visor clip
5
41A3984-7
Remote control case, cover & screw only (no
circuit board)
6
41A2828
Manual release rope & handle assy.
7
217A238
2-Conductor bell wire - white & white/red
8
41A5047
Door bracket w/clevis pin & fastener
9
41A4353
Header bracket w/clevis pin & fastener
10
41A4373A
Safety sensor kit (receiving and sending eyes
with 3' 2-conductor bell wire attached)
11
178B35
Curved door arm section
12
178B34
Straight door arm section
13
12B483
C-wrap bracket
14
12B484
Square hole bracket
15
12B485
Slotted bracket
NOT SHOWN
41A4116
Safety sensor hardware
41A4675-4
Installation hardware bag (includes hardware
listed on page 3)
114A1947
Owner's manual
