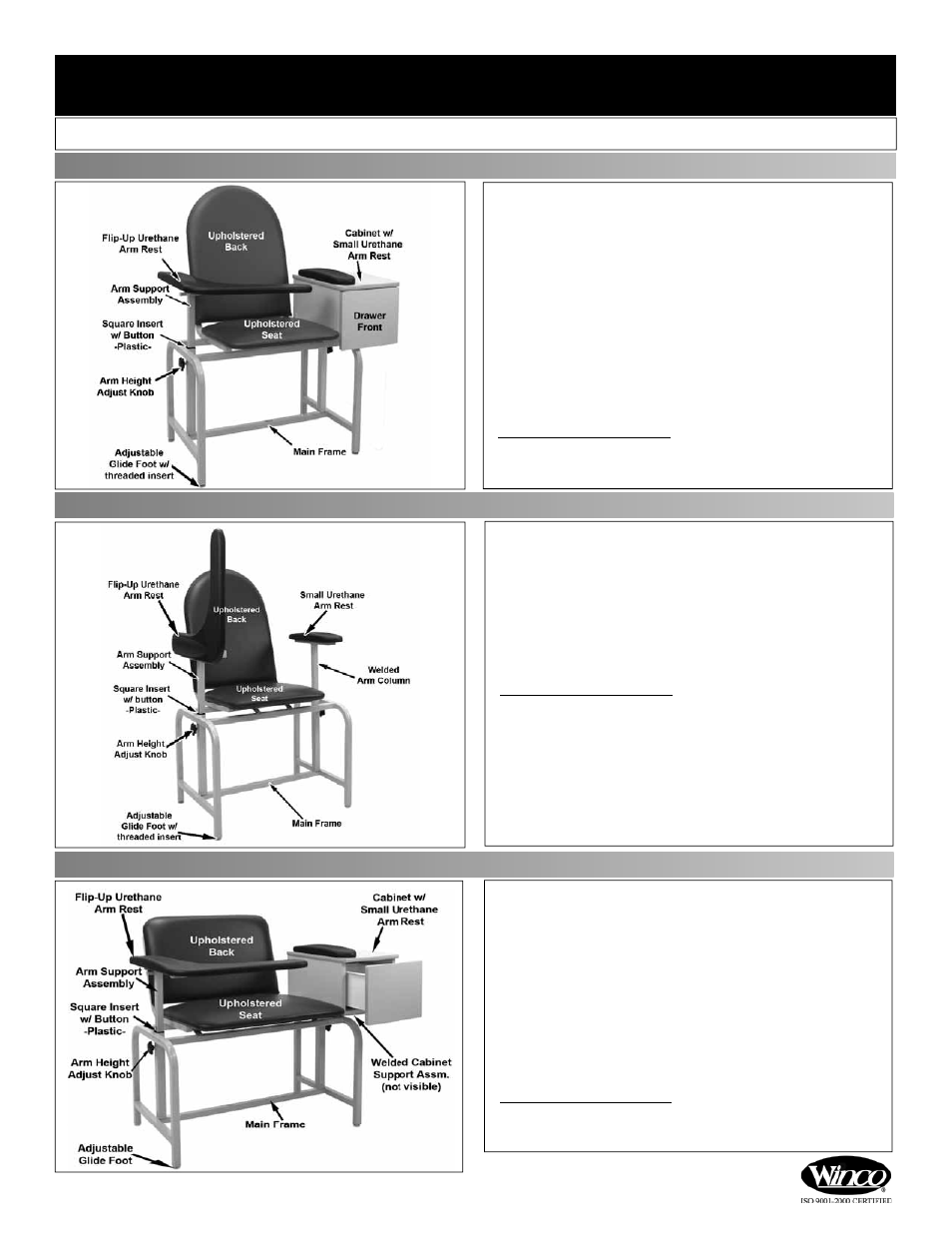

Parts Guide & List
**ALL Upholstered Parts**
(seat, back, arm pads, cabinet pad, etc...)
............Call for Special Part Numbers
2 5 7 2
2 5 7 3
Main Frame .................................................................. 226101
Arm Support Assembly ................................................ 226270
Welded Arm Column
(for Small Arm, Left)
...................... 226255
Seat & Back Frame ...................................................... 226300
Lock Nuts, (
for seat screws)
........................................... 566204
Adjustable Glide Foot......................................................500350
*With Pivot-Swing Arm Option:
*Upholstered Arms (Left or Right). .........(call for upholstered part #’s)
*Welded Arm Column (on right, instead of 226270) .................226220
Main Frame .................................................................. 226101
Arm Support Assembly ................................................ 226270
Seat & Back Frame ...................................................... 226300
Welded Cabinet Support Assm .................................... 226340
Cabinet w/drawer & glide hardware assm .................... 267405
Lock Nuts, (
for seat screws)
........................................... 566204
Lock Nuts,
(for cabinet to support assm)
.......................... 566203
Washers,
(for cabinet to support assm)
............................ 566302
Screws,
(for cabinet to support assm)
.............................. 566516
Adjustable Glide Foot......................................................500350
*With Pivot-Swing Arm Option:
*Upholstered Arm or Cabinet Pads. .......(call for upholstered part #’s)
*Welded Arm Column (Left or Right) ........................................226220
2 5 7 4
Main Frame .................................................................. 226102
Arm Support Assembly....................................................226270
Lock Nuts,
(for seat screws)
............................................ 566204
Welded Cabinet Support Assm. ................................... 226340
Cabinet w/drawer & glide hardware assm. ................... 267405
Lock Nuts,
(for cabinet to support assm)
.......................... 566203
Washers,
(for cabinet to support assm)
............................ 566302
Screws,
(for cabinet to support assm)
.............................. 566516
Adjustable Glide Foot......................................................500350
*With Pivot-Swing Arm Option:
*Upholstered Arm or Cabinet Pads. .......(call for upholstered part #’s)
*Welded Arm Column (on right, instead of 226270) .................226360
