006075 Revision O Date 06-06-12 JWC
 To raise the Upholstered Backrest, pull black lever on the Remote Release System.
 To lower the Backrest, pull the same black lever with one hand and apply pressure to the Backrest
with your other hand until the desired position is achieved, then release the black lever.
Vinyl Strap Adjustment – Should the vinyl strap on your Winco table need to be adjusted, unscrew the screw
that currently holds either side of it in place. Pierce another hole in the strap to give desired tension and re-insert
screw.
Wrinkles in Vinyl – Storage and shipping can cause wrinkles of the vinyl on your Winco table. This is normal.
Please allow 1-2 weeks at room temperature (approx. 70 degrees) to allow for vinyl to expand back to original
appearance.
Parts Reference
Do not over tighten nuts and bolts. Periodically check all fasteners for tightness.

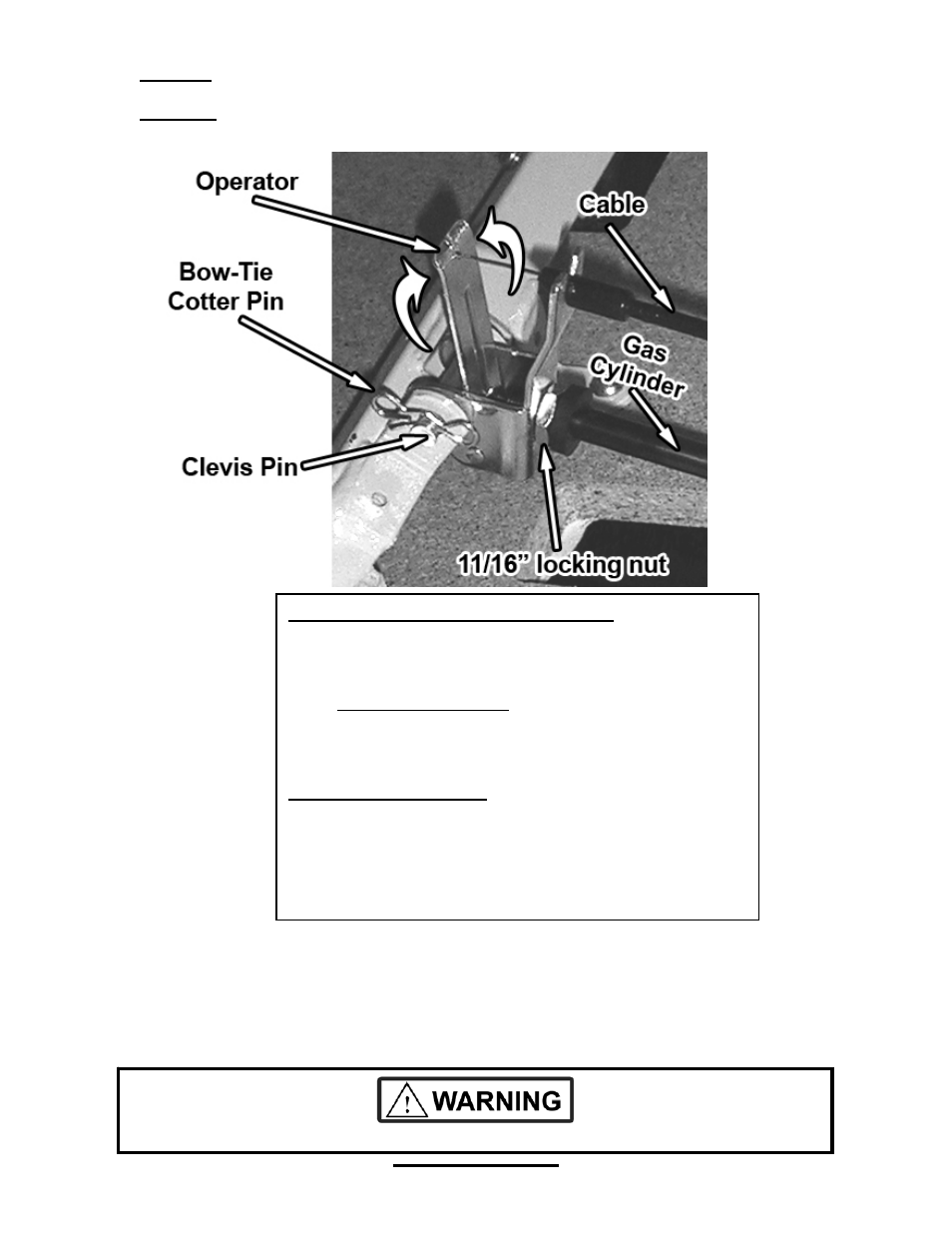

ADJUSTING GAS SPRING (cylinder):
1. Remove Cable from Operator.
2. Loosen 11/16” nut on top of Operator.
3. Remove Bow-Tie Cotter Pin from Clevis Pin.
4. Remove Clevis Pin.
5. Turn the entire Operator one full revolution:
Clockwise if backrest does not move when handle is
actuated OR Counter-clockwise if backrest will not stay in
down position.
Finish the adjustment:
6. Re-install the Clevis Pin.
7. Re-install the Bow-Tie Cotter Pin.
8. Tighten the 11/16” locking nut on top of Operator.
9. Re-install cable.
10. REPEAT these steps as needed until proper backrest
action is achieved.
