4B) (NS) Networked System applications
When PAN ID is used with a range of 1 to 250, for (NS) Networked Systems.
In this application, any controller(s) are simply routers to the system. The VWG and Jace-driver is the
coordinators to the system. The VWG and Jace-driver are the network masters for any controller(s)
reporting to them, where zoning system(s) are required to communicate and exchange data points with the
Viconics VWG and Jace-driver set. (More than one can be installed in a typical building application).
·
Wireless controller factory default channel and PAN ID = Controller(s) offline
· VWG Jace-Driver is the network coordinator
· Any controllers (VZ72’s, VZ76xx RTU’s or any VT7xxx wireless controllers) act as routers.
· Range of PAN ID on all controllers to use 1 to 250. Reserved for networked system operation.

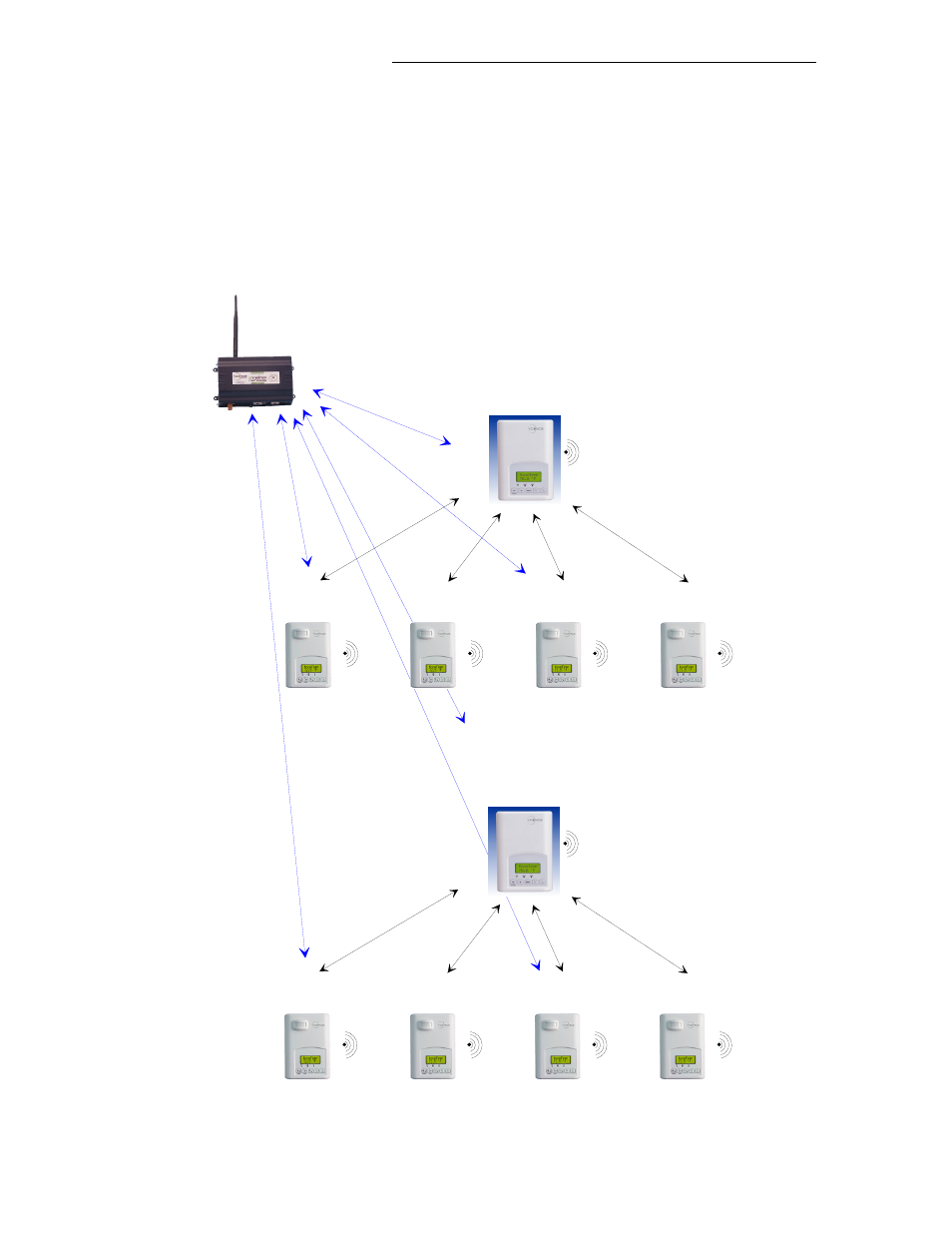

Examples:
Note:
·
Each controller(s) uses the same PAN ID and channel as VWG Jace-Driver coordinator.
· VWG and Jace-driver supports network integration for required GUI and system status objects.
Coordinator
Channel 25 ID 200
RTU VZ76 Router
Channel 25 ID 200
Zone VZ72 Router
Channel 25 ID 200 Zone VZ72 Router
Channel 25 ID 200 Zone VZ72 Router
Channel 25 ID 200 Zone VZ72 Router
Channel 25 ID 200
System 1
System 2
RTU VZ76 Router
Channel 25 ID 200
Zone VZ72 Router
Channel 25 ID 200 Zone VZ72 Router
Channel 25 ID 200 Zone VZ72 Router
Channel 25 ID 200 Zone VZ72 Router
Channel 25 ID 200
