VC3000 Series 7 Installation Guide
Viconics Technologies Inc. I Small Building Systems I 9245 Langelier Blvd. Saint-Leonard, Quebec, Canada, H1P 3K9 I +1 514 321 5660 I www.viconics.com
028-0296-07 May 2013 bm
© 2
01
3 V
ic
on
ic
s T
ec
hn
ol
og
ie
s. A
ll r
ig
ht
s r
es
er
ve
d
.

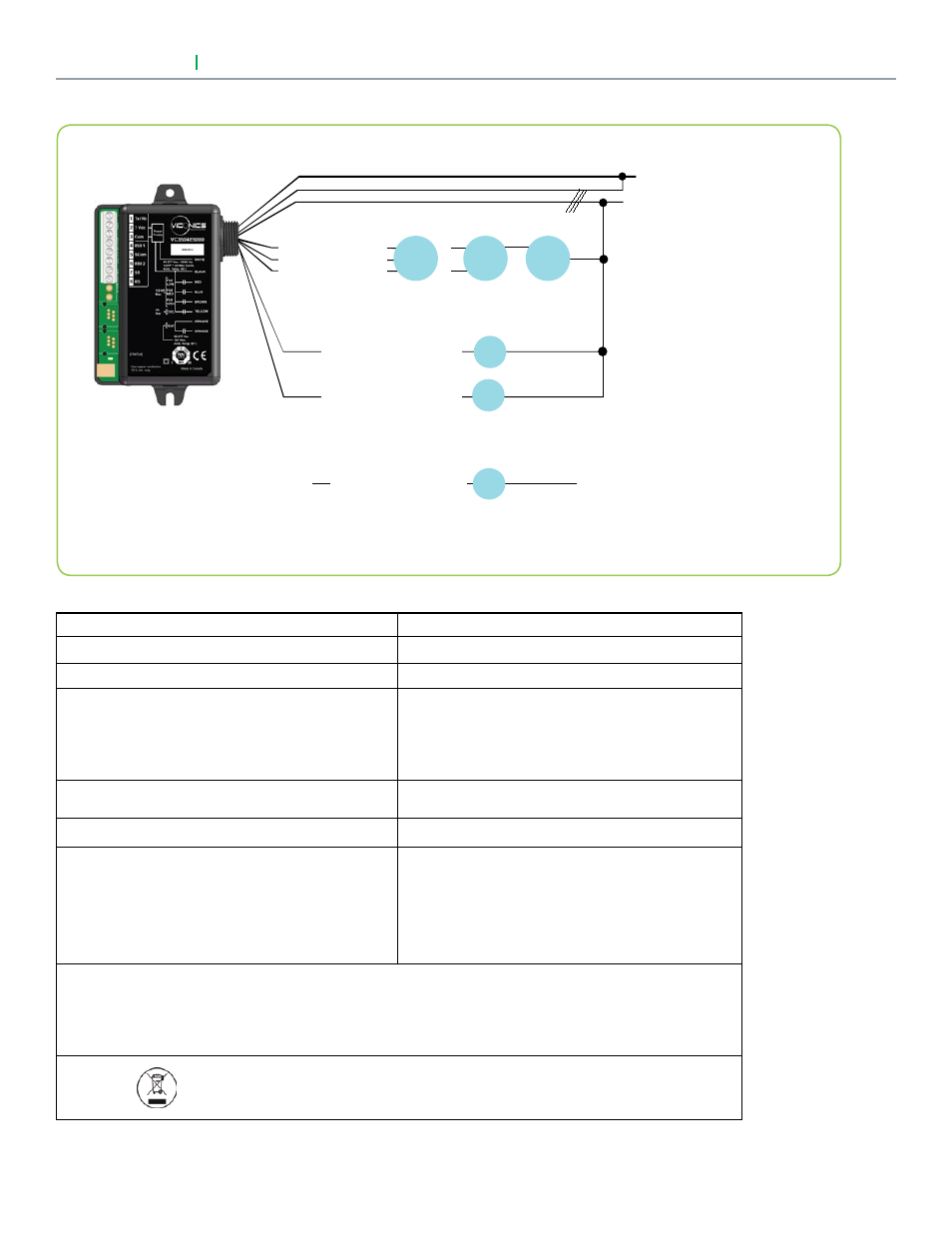

tyPICal WIRInG eXaMPle DIMensIons
VC3504E
Relay Pack
Black - Hot Power
Orange - Connected to Black-Hot
White - Neutral
Brown - High Speed
Blue - Medium Speed
Red - Low Speed
M
3 Speed
Applications
2 Speed
Applications
Single S peed
Applications
For 2 pipe applications use cooling valve yellow wire connection
Fan Speed Arrangement
By Configuration
M
Orange - Heating Valve
Yellow - Cooling Valve
V
V
M
Orange - Electric Reheat R
For electric reheat applications where current draw is above 10 A
use a line powered coil pilot duty relay or contactor for the heating element
in place of the heating valve.
Power Supply 90 to 277 VAC universal, 50-60 Hz
Fan line voltage contact electrical ratings Brown, Blue, Red wires ½ HP maximum
Main heat and cool line voltage contact electrical ratings Yellow wire 10A maximum
Output ratings
Heat Valve: (Orange wire): 10 Amps @ 277 VAC
maximum
Cool Valve: (Yellow wire): 5 Amps @ 277 VAC maximum
Fan: (red, blue, brown wire(s)): 1/2 HP @ 277 VAC
maximum
Operating conditions
0 ° C to 50 ° C (32 ° F ro 122 ° F), 0% to 95% RH
non-condensing
Approximate shipping weight: 0.34kg (0.75lb)
Agency Approvals all models
cTUVus: UL 873 (US) and CSA C22.2 No. 24 (Canada)
CE: LVD 2006/95/EC (Europe Union)
CE: EMC 2004/108/EC (Europe Union)
CE for RF: RTTE 1999/5EC
FCC: Compliant to: Part 15, Subpart B
FCC for RF: Compliant to: Part 15, Subpart C
THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING
TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE
MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE
UNDESIRED OPERATION.
Please check with your local government for instruction on disposal of this product.
sPeCIFICatIons
