VC3000 Series

Installation Guide

Viconics Technologies Inc.

I Small Building Systems I 9245 Langelier Blvd. Saint-Leonard, Quebec, Canada, H1P 3K9 I +1 514 321 5660 I www.viconics.com

028-0296-07

May 2013 bm

3 V

s T

s. A

ll r

s r

Special Precautions

Replacing Old Fan Coil Controller
If replacing an old line voltage fan coil controller, label the wires before removal of the old controller.

Electrostatic Discharge
Electronic controls are static sensitive devices. Discharge yourself of any electrostatic build-up before
manipulating or installing the terminal equipment controller.

Short-Circuits
A short circuit or wrong wiring may permanently damage the terminal equipment controller or the equipment.

Proper Installation and Use
VC3000 series transformer relay packs are to be used only as operating controls. If installed incorrectly the
intended application may fail or lead to personal injury or loss of property. It is the responsibility of the end
user to ensure that the device has been properly installed by a certified professional and that proper safety
precautions have been taken to protect against failures.

CoMMUnICatIon WIRInG to VtRX3xxa teRMInal eQUIPMent ContRolleR

InstallatIon (Cont.)

Only one VC3xxxX relay pack with remote monitoring inputs can be used under a single VTRX3xxA controller.
All other slave units must be VC3xxxX relay pack(s) without remote inputs. A maximum of 10 VC3xxxX relay
packs can be used for a single VTRX3xxA terminal equipment controller.

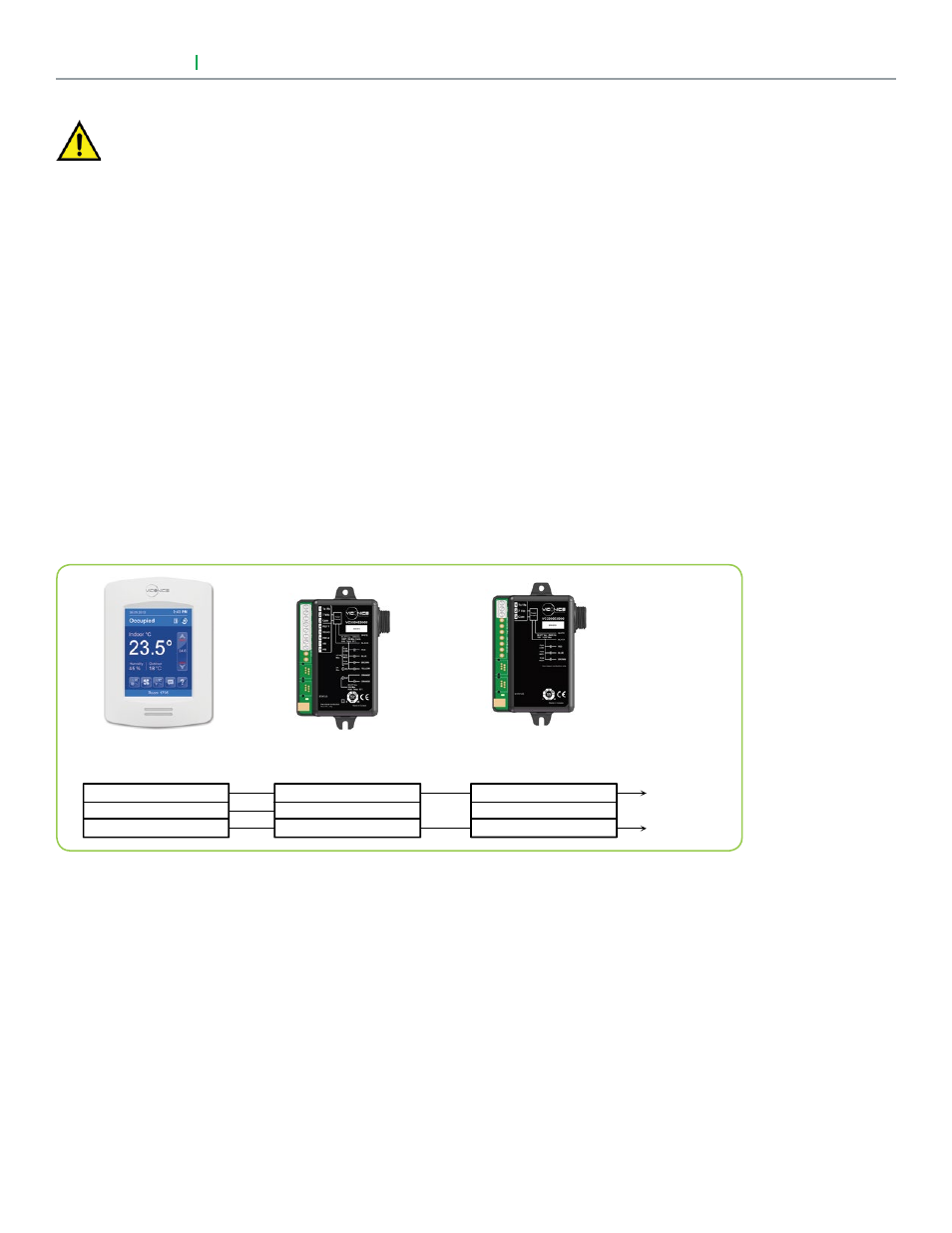

From the VTRX3xxA to the first VC3xxxX Relay Pack
• Existing or new field wires
• 3 minimum required 14-22 Ga solid or stranded. Shield not necessary.

From the first VC3xxxX Relay Pack to the
controller to all other VC3xxxX Relay Pack(s)
• Existing or new field wires
• 2 minimum required 14-22 Ga solid or stranded. Shield not necessary.
• Connect only Power Common and Tx / Rx communication

4 - Tx / Rx

5 - 7 Vdc Power Hot

6 - Power Common

VC3504E

VTRX3xxA

Terminal Controller

1 - Tx / Rx

2 - 7 Vdc Power Hot

3 - Power Common

1 - Tx / Rx

2 - 7 Vdc Power Hot

3 - Power Common

Relay Pack

VC3300E

Relay Pack

To other

VC3xxxX
Relay

Pack
