This section describes the names and functions of each part. Before you connect the CR-190i, familiarize yourself with its parts and their functions.

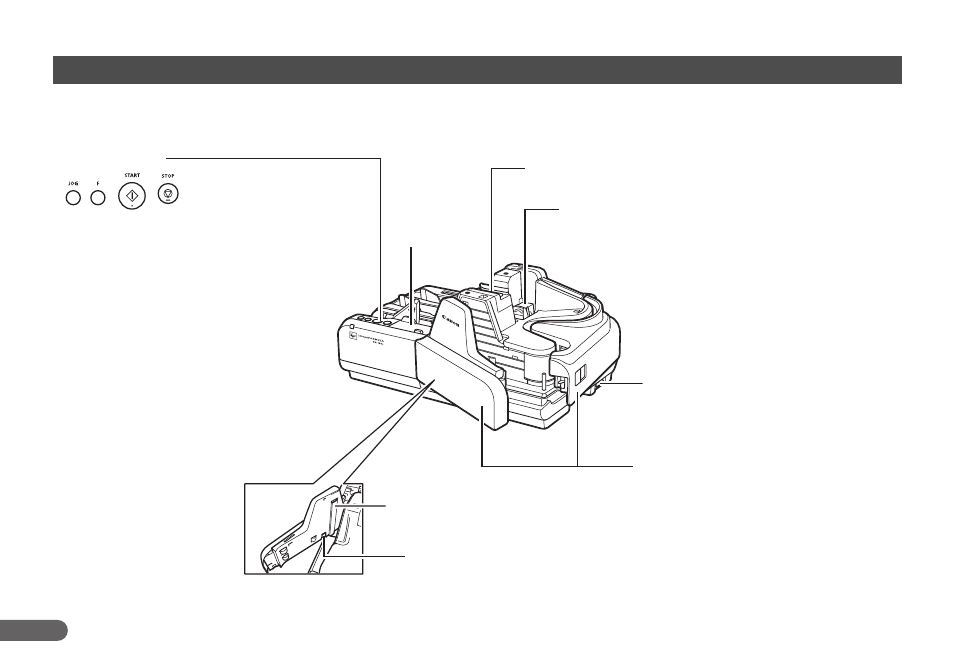

Front View

Part Names

Power Switch

Front Maintenance Cover
Open this cover to clear paper jams or to clean
the scanner.

Roller Cover

Operation Buttons

Ink Cartridge
Ink cartridge is not included. Purchase the ink cartridge
separately. (See “About the Ink Cartridge,” on p. 23.)

JOG:

Uses vibration to align the documents. (Jogger)

Function (F): You can assign this button to any function from

an application. When using the accompanying
Scanning Utility for CR-190i, switches the double
feed detection ON/OFF.

START: Starts scanning operations. Press and hold

this button during a paper jam to eject the
jammed document.

STOP: Stops scanning operations.

Scanner Unit
This unit scans the documents.

Magnetic Head for MICR
Reads MICR characters that have been printed with magnetic ink.

Built-in Nozzle Cleaning Pad
