Description
Display
selectable
pressure units
cooling water valve
isolation valve
Operating the controller is possible in four different basic setups, see ”Changing the
basic setup”.

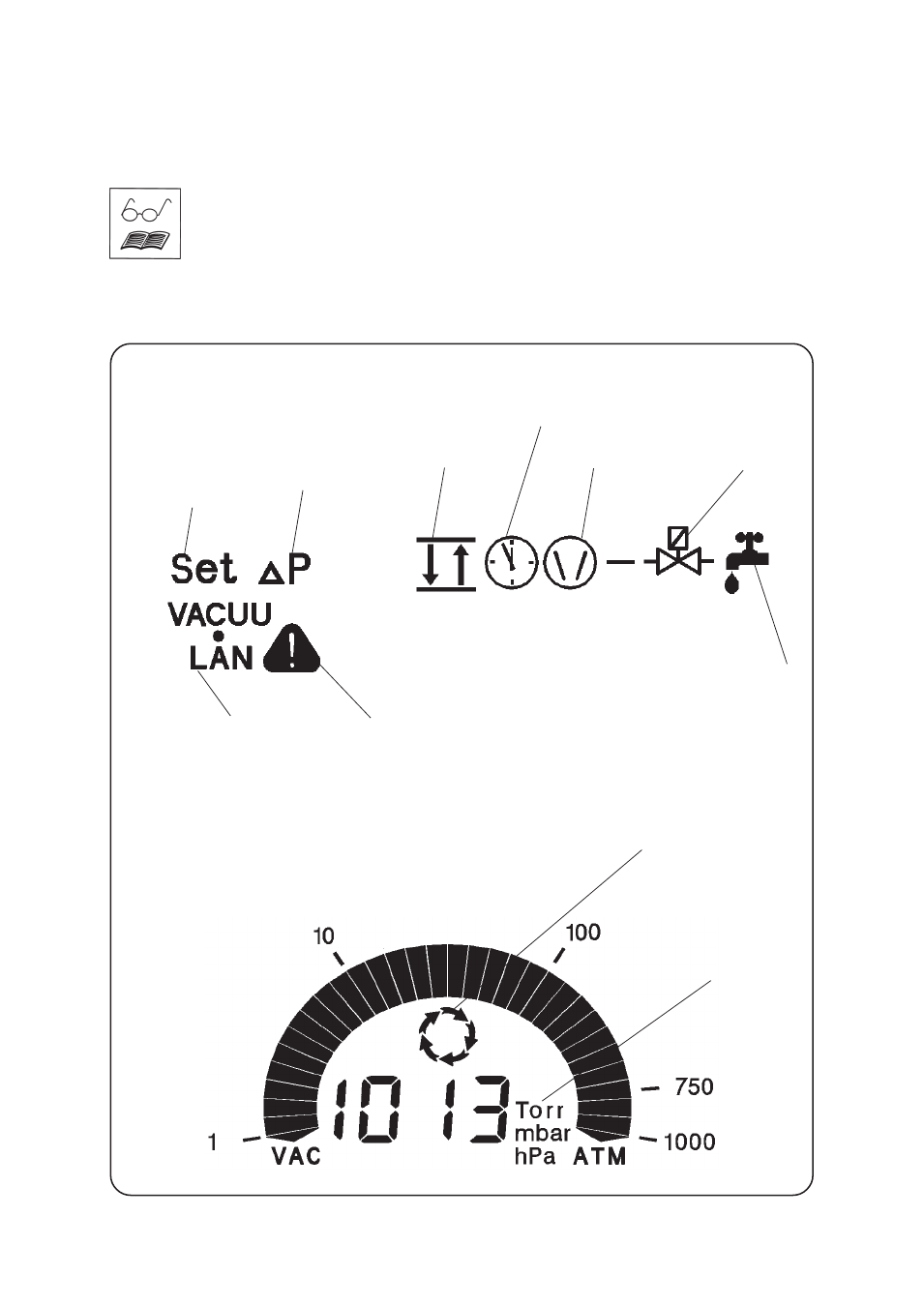

The status of the controller respectively of the connected accessories is displayed by
corresponding symbols on the LCD. After switching on the controller, the version of
the software is displayed, then the preselected basic setup. The solenoid operated
isolation valve is switched if connected (automatic identification), the cooling water
valve is switched, if the valve is configurated.
Pressure reading
process control
active
basic setup
VACUU•LAN warning symbol
(in combination with other symbols)
pump symbol pressure control setting pressure
or hysteresis
settings
countdown till switch off
