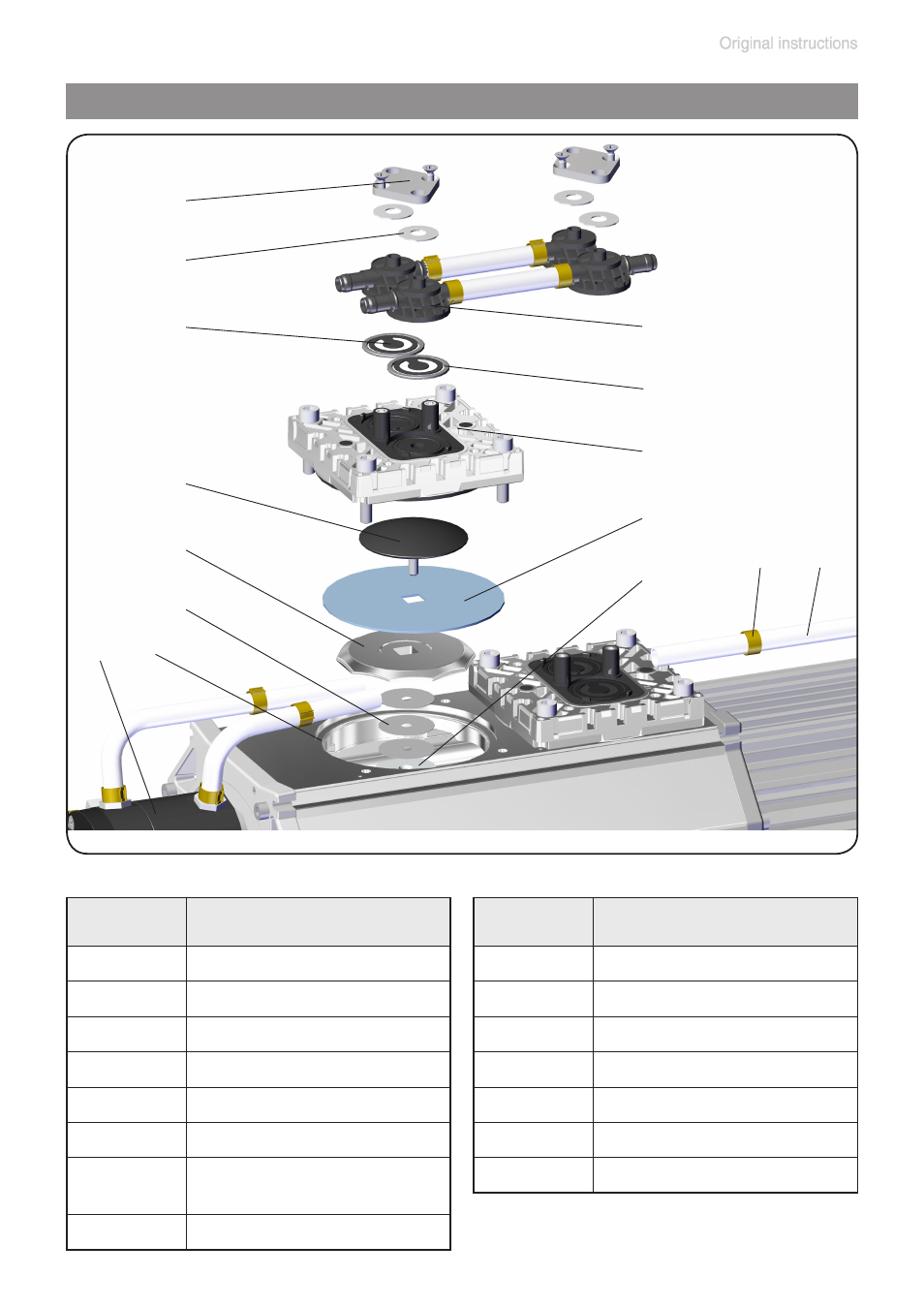

Checking diaphragms and valves
1
2
5
7
9
10
3
4
6
8
11
13
14 15
12
Position Component
1 Clamping bracket
2 Disc spring
3 Valve head
4 O-rings
5 Valves
6 Head cover
7
Diaphragm clamping disc
with square head screw
8 Diaphragm
Position Component
9 Diaphragm support disc
10 Washers
11 Connecting rod
12 Housing
13 Distributor
14 Hose clip
15 PTFE tube
