Twin city engineering supplement 895 7 – Twin City TSL & QSL; Inline Centrifugal and Mixed Flow Fans - ES-895 User Manual
Page 7
Twin City Engineering Supplement 895
7
ITEM
QTY.
DESCRIPTION
01
1
Inlet Adaptor Plate and Inlet Funnel
02
1
Wheel
03
1
Bearing Housing With End Cover Plate Belt Tube & Straightening Vanes
04
1
Discharge Cone & Belt Tube Seal (Removable)
05
1
Housing
06
1
Motor Mount (Saddle Type)
NOTES:
1. Shaft excluded from illustration.
2. Belts and driven sheave are accessible by remov-
ing discharge cone and belt tube seal.
2
1
3
4
5
6

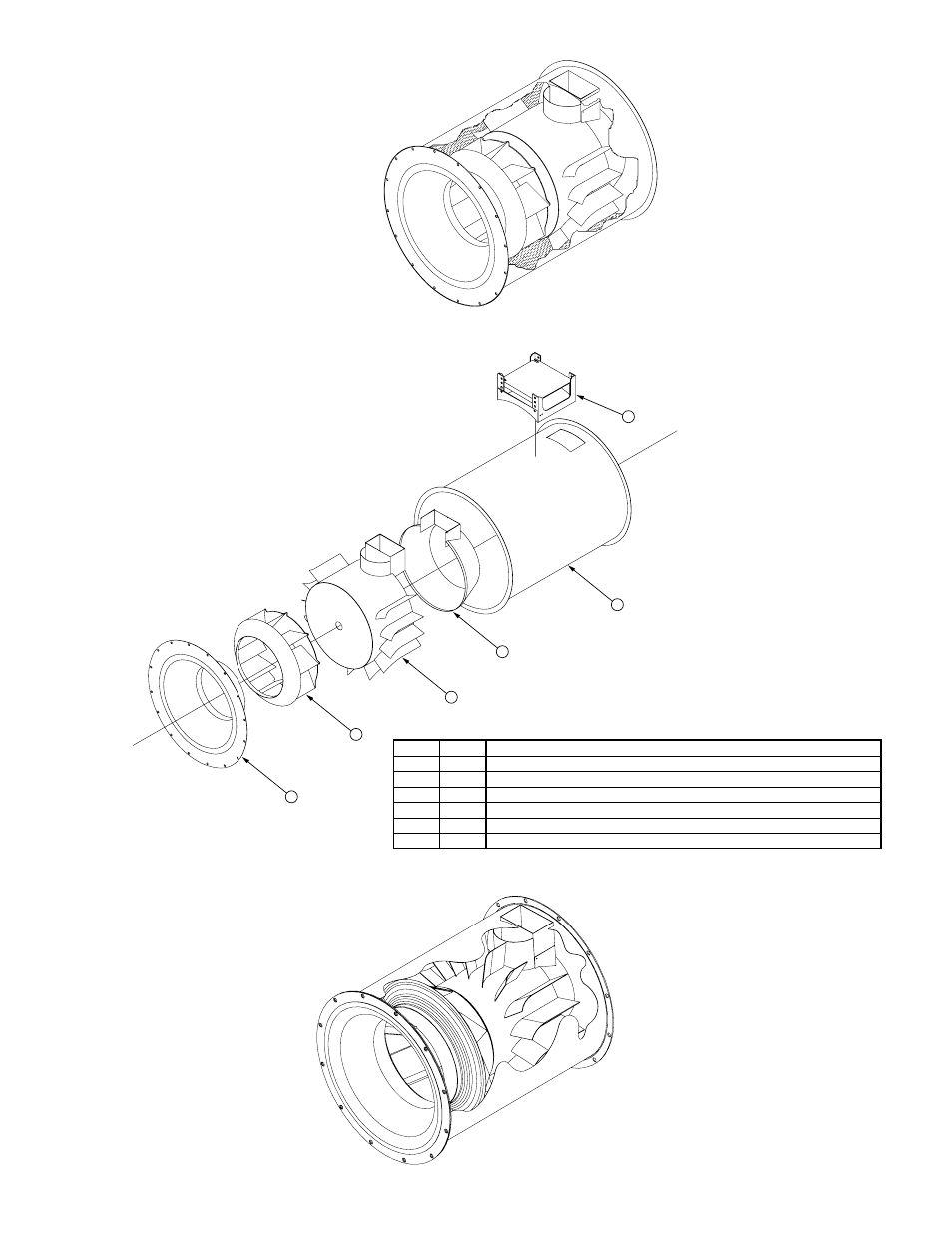

Figure 10. Exploded View of TSL Assembly
Figure 11. Cutaway View of QSL Assembly
Figure 9. Cutaway View of TSL Assembly
