Page 3-3
3.2 KEYBOARD
The keyboard is composed of soft keys, operator keys, numeric keys and shortcut keys.
For more information on shortcut keys see section 5.1.

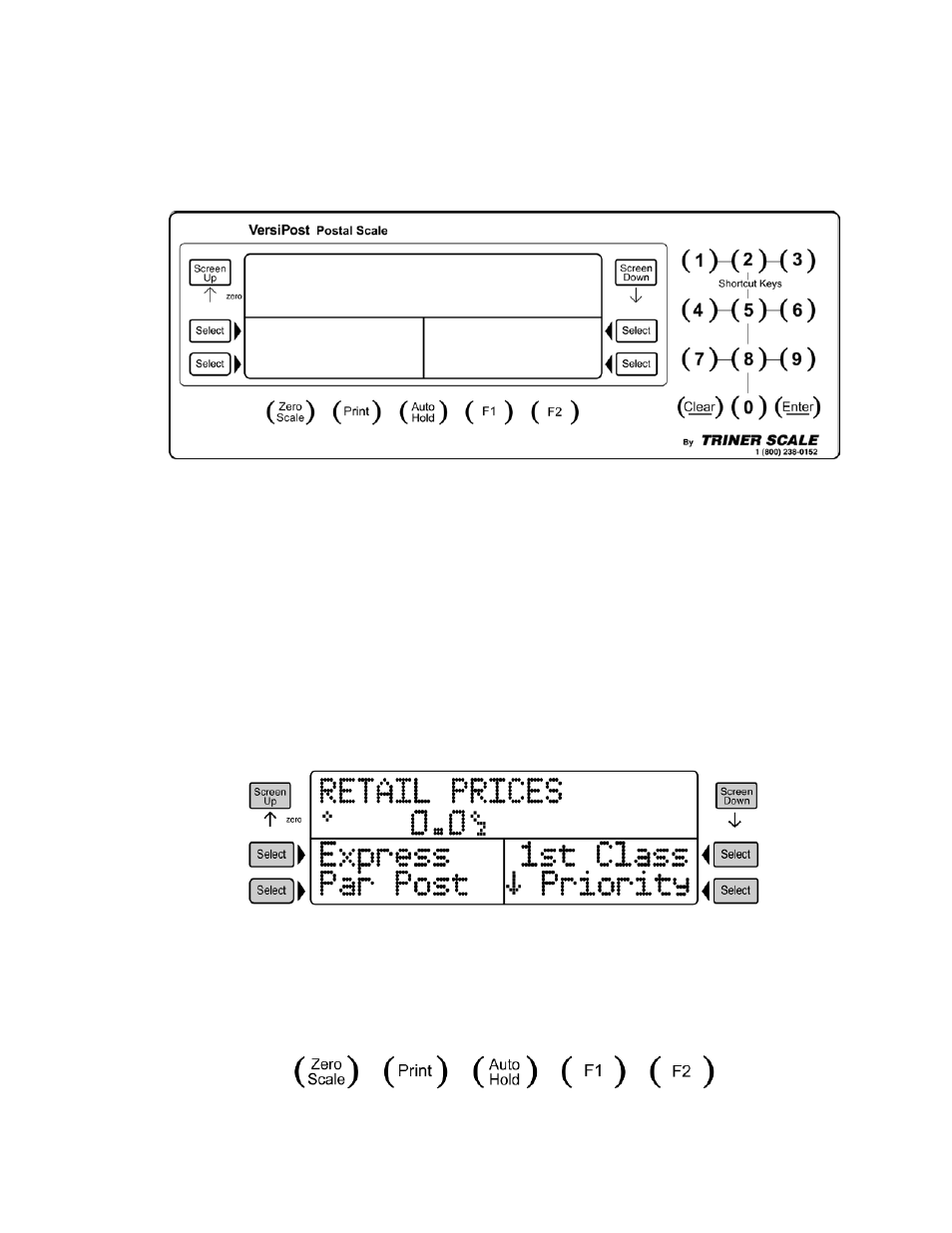

FIGURE 3-6: VP-70 Front Panel and Keyboard
3.2.1 SOFT KEYS
The LCD and the six bright green keys located next to the LCD make up the Soft
Keys. The soft keys are used to navigate through the menus and make
selections.
• Use the SCREEN DOWN key to scroll the selection page down. If more
screens are available a down arrow (‚) will appear in the lower middle of
the screen.
• Use the SCREEN UP key to scroll the selection page up. If more screens
are available an up arrow () will appear in the lower middle of the screen.
• Use the SELECT keys to make your selection.
FIGURE 3-7: Soft Keys Layout
3.2.2 OPERATOR KEYS
The operator keys access certain scale functions. Pressing an operator key will
activate the chosen function or access additional functions.
FIGURE 3-8: Operator Keys Layout
