3
❏ Remove the cover plate at the back of the machine. (See dimen-
sions (E)).

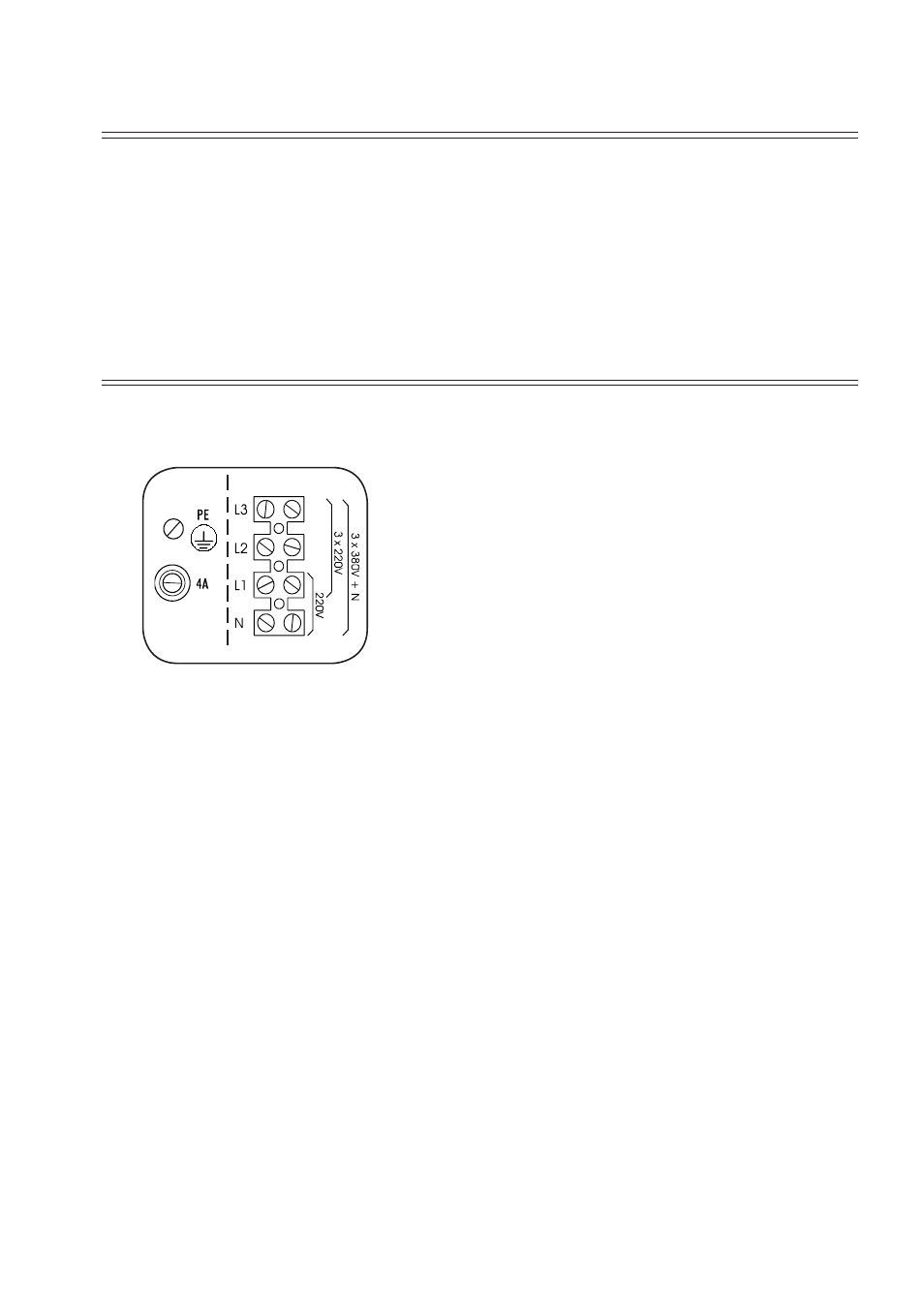

❏ Connect the power cable to the connectors.
220V 3AC
220V 3 phase (3AC) should be connected to the connectors
“L1,L2,L3”.
The green/yellow grounding clamp has to be connected to the
grounding wire “PE”.
380 V 3AC + N
380 V 3 phase (3AC + N) has to be connected to the connectors
“L1,L2,L3”, the blue neutral to the “N” connector.
The green/yellow grounding clamp has to be connected to the
grounding wire “PE”.
❏After connection, check the spin direction. The cylinder must
spin in the direction of the arrow, showed on the sticker on the
door window (clockwise).
❏ A wrong spin direction can damage the motor, and can also
cause water to spurt from the soap dispenser.
Electrical Connection
The machine is equipped with a drain valve (HF150-185) with 2" ou-
ter diameter (50mm) (HF234) 3" outer diameter (80 mm). This drain
valve should be connected to the drain by means of the drain elbow
which is delivered with the machine.
❏ The diameter of the main drain should be adapted to the water
fl ow and the number of machines. It should be suffi cient to handle
at least 160L/min. per machine.
❏ It is necessary to connect the main drain at least on one side to
an open air-brake to allow ventilation.
❏ When the main drain has not been suffi ciently deodorized, eve-
ry machine should be installed seperately with a deodorizer.
Water drain
machine with steam heating or boiler fed machines without ad-
ditional electrical heating
Power of the breaker plugs:
220V 3AC 380V 3AC + N
9kw 25A 16A
12 kW 40 A 20 A
15 kW 50 A 25 A
18 kW 50 A 32 A
21 kW ---- 40 A
24 kW ---- 40 A
machine with electrical heating
220V 3AC 380V 3AC + N
16 A 16 A
