Dimensions – Cissell HF234 User Manual
Page 6
1375.5
1348
780
565
680
50
50
86.5
88
220
HF150 = 733 - HF185 = 833
HF150 = 665 - HF185 = 765
34
34
HF150 = 753 - HF185 = 853
1181.5
1066.5
935
1141.5
703.5
L
K
185
170
332
267
202
105
D
C
B
A
200
155
H
E
I
G
F
35
❏ A. Ventilation soap dispenser
❏ B. Liquid soap connetions
❏ C. Hard water connections 3/4"
❏ D. Warm water connections 3/4"
❏ E. Soft water connections 3/4"
❏ F. Connections clamps
❏ G.Electrical connections
❏ H.Emergency button
❏ I. Ventilation tub
❏ K. Drain valve
❏ L. Steam connections

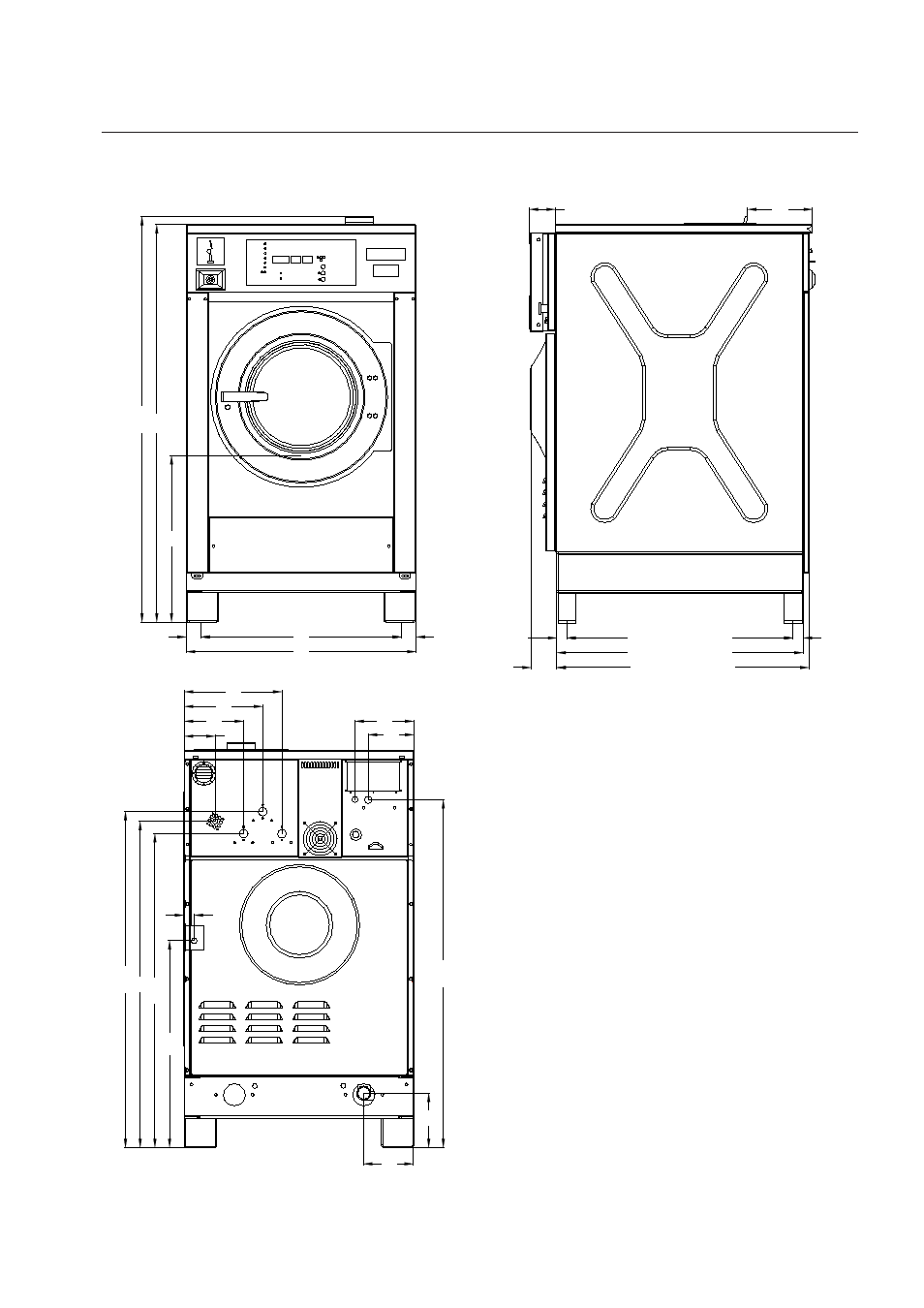

Dimensions
2
HF150 - 185
