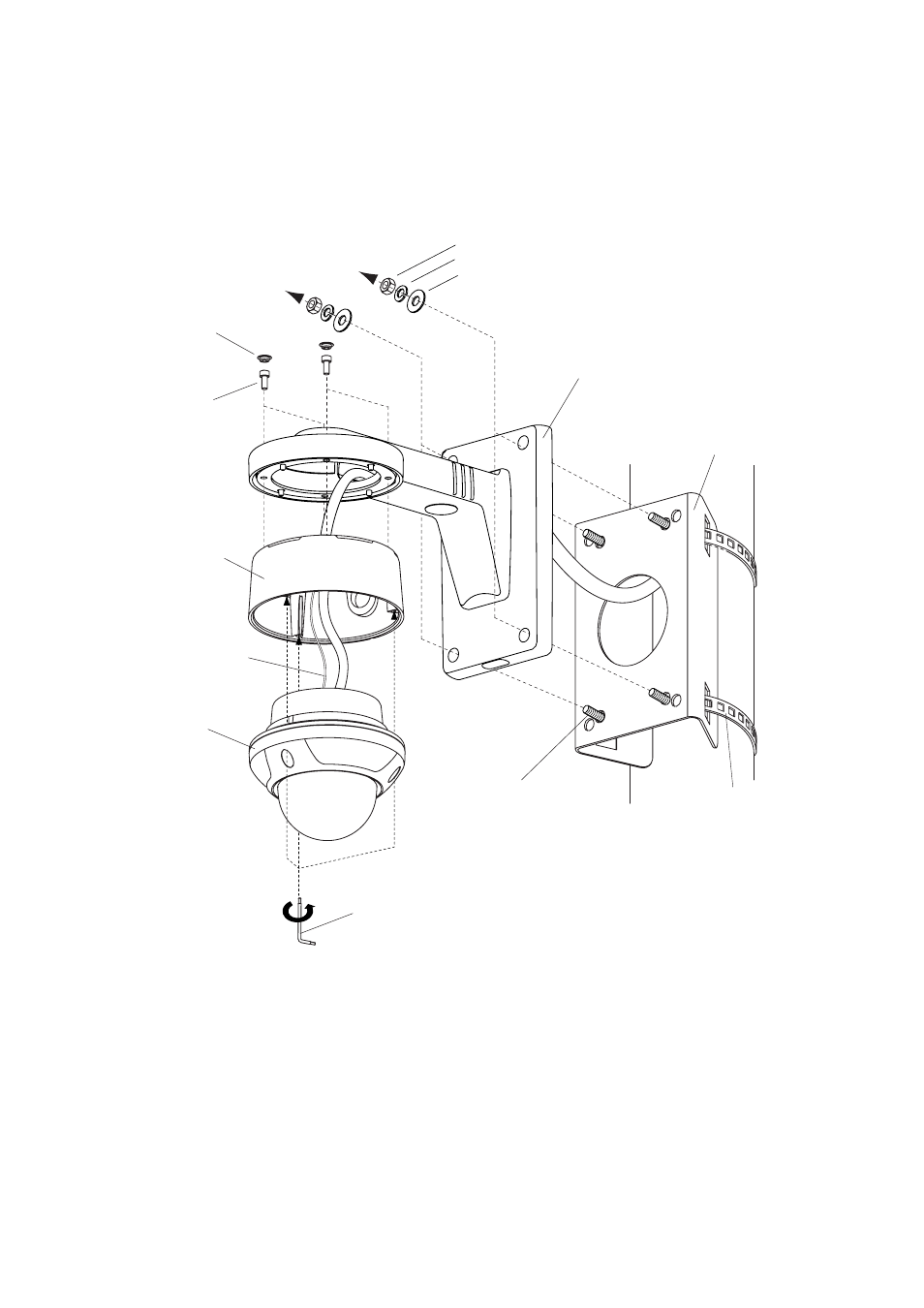

4.2. Installing the Combination Camera C-CC704
Use the C-BC704W which has been waterproofed and through which cables have been routed. Mount the
C-CC704 to the C-BC771PM with help of the C-BC704W as illustrated below.
For details, refer to the instruction manual enclosed with the C-BC704W and C-CC704.
Torx wrench
Water-resistant cap
supplied with the C-BC704W
Hexagon socket bolt
supplied with the C-BC704W
C-CC704 Case
Camera Unit
Nut *
2
Washer *
2
Spring washer *
2
Camera Wall Mounting Bracket
C-BC704W (optional)
Camera Pole Mounting Bracket
C-BC771PM
Safety wire
for camera unit *
1
Hexagon head bolt *
2
(M8, M10 or W 3/8)
YS-60B
Mounting Band
(optional)
Notes
*
1
Be sure to attach the Camera after hanging the safety wire.
*
2
Washers, spring washers, nuts and hexagon head bolts are not supplied and should be acquired
separately.
