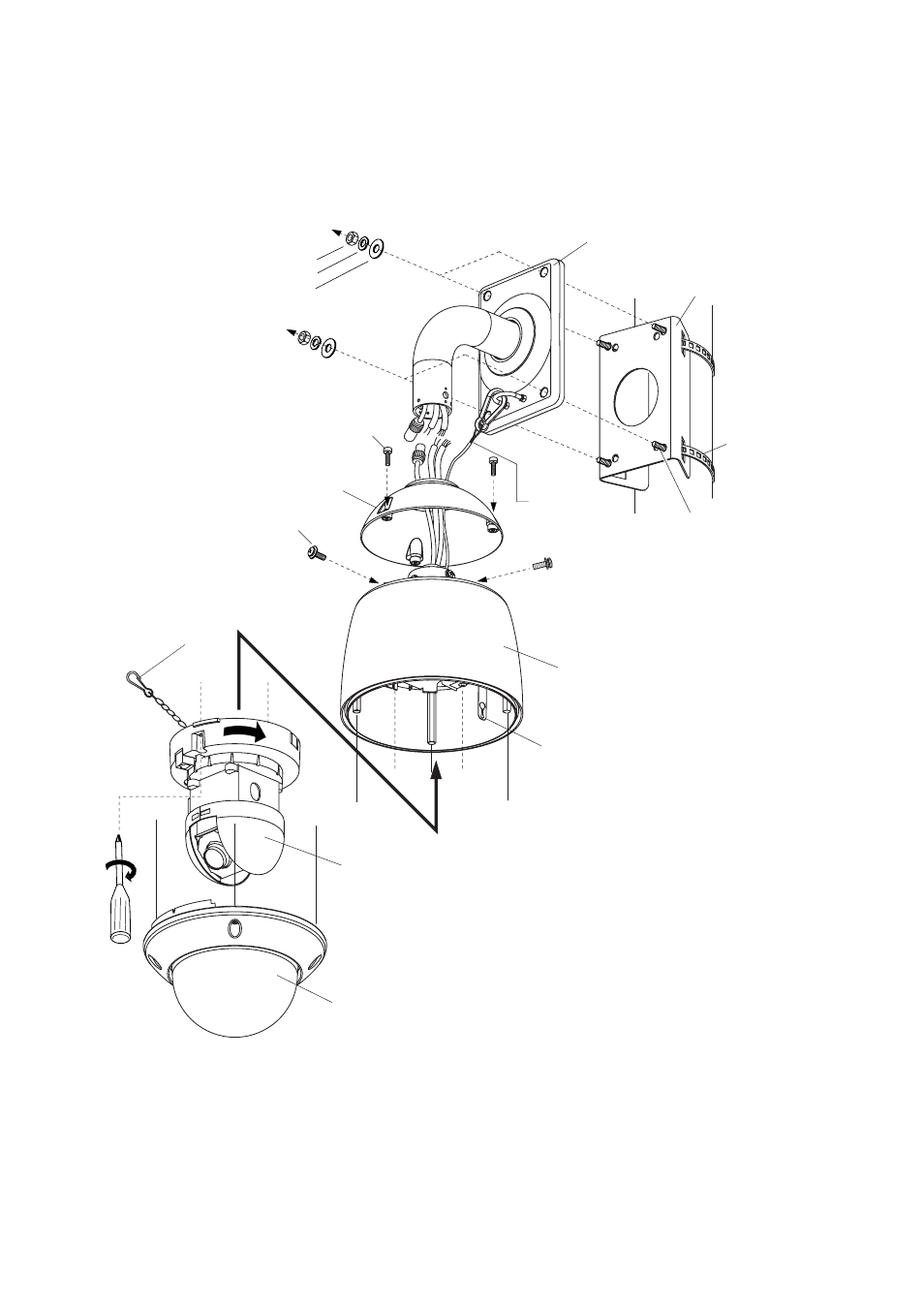

Safety wire *

1

Hexagon socket bolt

YS-60B
Mounting Band
(optional)

Wall Mounting Bracket
C-BC711W (optional)

Housing

Top cover

Camera unit

Dome cover

Safety wire
for camera unit *

1

Screws supplied
with the C-BC711W
Wall Mounting Bracket

Safety wire
for dome cover *

1

Camera Pole Mounting Bracket
C-BC771PM

Nut *

2

Washer *

2

Spring washer *

2

Hexagon head bolt *

2

(M8, M10 or W 3/8)

Notes
*

1

Be sure to attach the Housing and the Camera after hanging the safety wire.

*

2

Washers, spring washers, nuts and hexagon head bolts are not supplied and should be acquired
separately.

4. INSTALLATION

4.1. Installing the Outdoor Combination Camera C-CC714, C-CC764 or C-CC774

Be sure to refer to the instruction manual supplied with the Camera.
