Toa CMB-31 - Manual

Indicates a potentially hazardous situation which, if mishandled,
could result in death or serious personal injury.
WARNING
Indicates a potentially hazardous situation which, if mishandled,
could result in moderate or minor personal injury, and/or
property damage.
CAUTION
• CMB-31/CMB-31W
Suspension bracket
Horizontal angle
adjustment screw
Horizontal angle
adjustment screw
Vertical angle adjustment screw
Square socket
head screw* Safety pin
Bracket base
Mounting hole (6.8 mm dia. x 6)
Speaker cable hole
(8.8 mm dia. x 2)
61 mm
150 mm
Horizontal angle
adjustment screw
Suspension bracket
Horizontal angle adjustment screw
Safety pin
Vertical angle adjustment screw
Bracket base
Mounting hole
(6.2 mm dia. x 4)
Speaker cable hole (10 mm dia. x 2)
80 mm
61 mm
Square socket head screw*
• WCB-31/WCB-31W
OPERATING INSTRUCTIONS
SPEAKER MOUNTING
BRACKETS WCB-31 (BLACK)
WCB-31W (WHITE)
CMB-31
(BLACK)
CMB-31W (WHITE)
1. SAFETY PRECAUTIONS
• Be sure to read the instructions in this section
carefully before use.
• Make sure to observe the instructions in this
manual as the conventions of safety symbols
and messages regarded as ver y impor tant
precautions are included.
• We also recommend you keep this instruction
manual handy for future reference.
Install the mounting bracket only in a location that can structurally
support the weight of the speaker and the mounting bracket.
Doing otherwise may result in the speaker falling down, causing
personal injury and/or property damage.
Caution
Do not stand or sit on, nor hang down from the mounted speaker as
this may cause it to fall down or drop, resulting in personal injury
and/or property damage.
Prohibition
• Symbols
Prohibition Caution
Caution action Prohibited action
2. GENERAL DESCRIPTION
These TOA speaker mounting brackets are designed for indoor use exclusively with the
F-240 series speaker systems. The WCB-31 and WCB-31W can be used for mounting a
speaker on both a wall or ceiling, and the CMB-31 and CMB-31W for mounting it on a
ceiling. Speaker angle can be changed freely to your desirous direction according to the
speaker location.

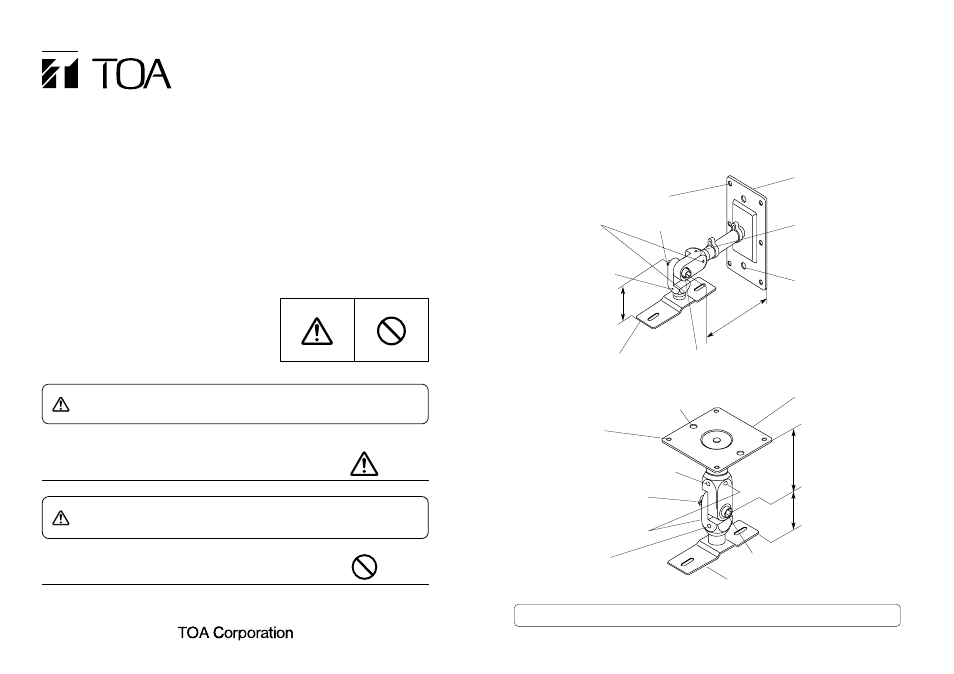

3. NOMENCLATURE AND DIMENSIONS
Caution: * Never loosen two square socket head safety screws for falling-out prevention.
