4

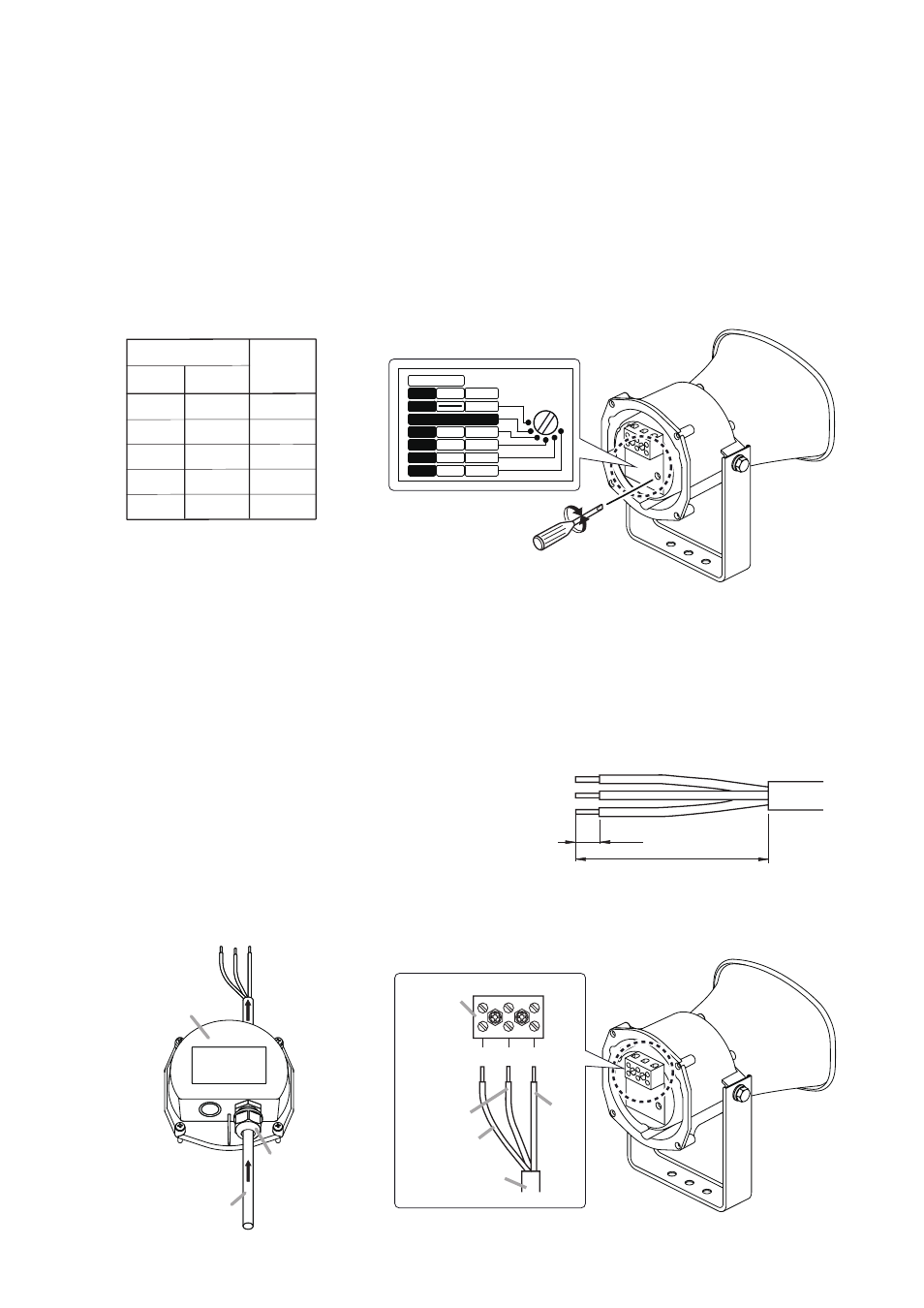

3. IMPEDANCE CHANGE

Input impedance is factory-preset to 670 Ω.
To change the impedance, change the rear panel-mounted rotary switch position using a standard
screwdriver.

Notes
• This speaker is designed to be used for high impedance applications (70 V/100 V). Never connect the

speaker to low impedance line.

• No sound is output from the speaker when the switch is set to the OFF position.

Caution
Never set the switch to "–" position for 100 V line operation, as doing so may result in damage to the speaker.

100 V

70 V

Imp.

330 Ω

670 Ω

1 kΩ

2 kΩ

3.3 kΩ

15 W

10 W

5 W

3 W

15 W

7.5 W

5 W

2.5 W

1.5 W

Line Voltage

Bold figures represent factory-preset values.

LINE VOLTAGE

70V

100V

IMP.

15W

7.5W

5W

2.5W

1.5W

3W

5W

10W

15W

330Ω

670Ω

OFF

1kΩ

2kΩ

3.3kΩ

4. WIRING

The terminal cover is not mounted to the speaker unit when shipped from the factory.

Note
To complete speaker installation, be sure to attach the terminal cover after finishing cable connections.
If the unit is left without the terminal cover attached, water or moisture may get inside the speaker, causing the
unit malfunction.

4.1. When No Bridge Connection is Required

Step 1. Strip the speaker cable jacket as shown at right.

Step 2. Run the speaker cable through the cable gland.

Step 3. Connect the speaker cable according to the polarity indication at the screw terminal.

55 (2.17)

8

(0.31)

Unit: mm (in)

Terminal cover

Speaker cable

Cable gland

2

EARTH HOT COM

COM

HOT

EARTH

Screw
terminal

Speaker cable

3
