Toa CS-64U - Manual (Page 2)

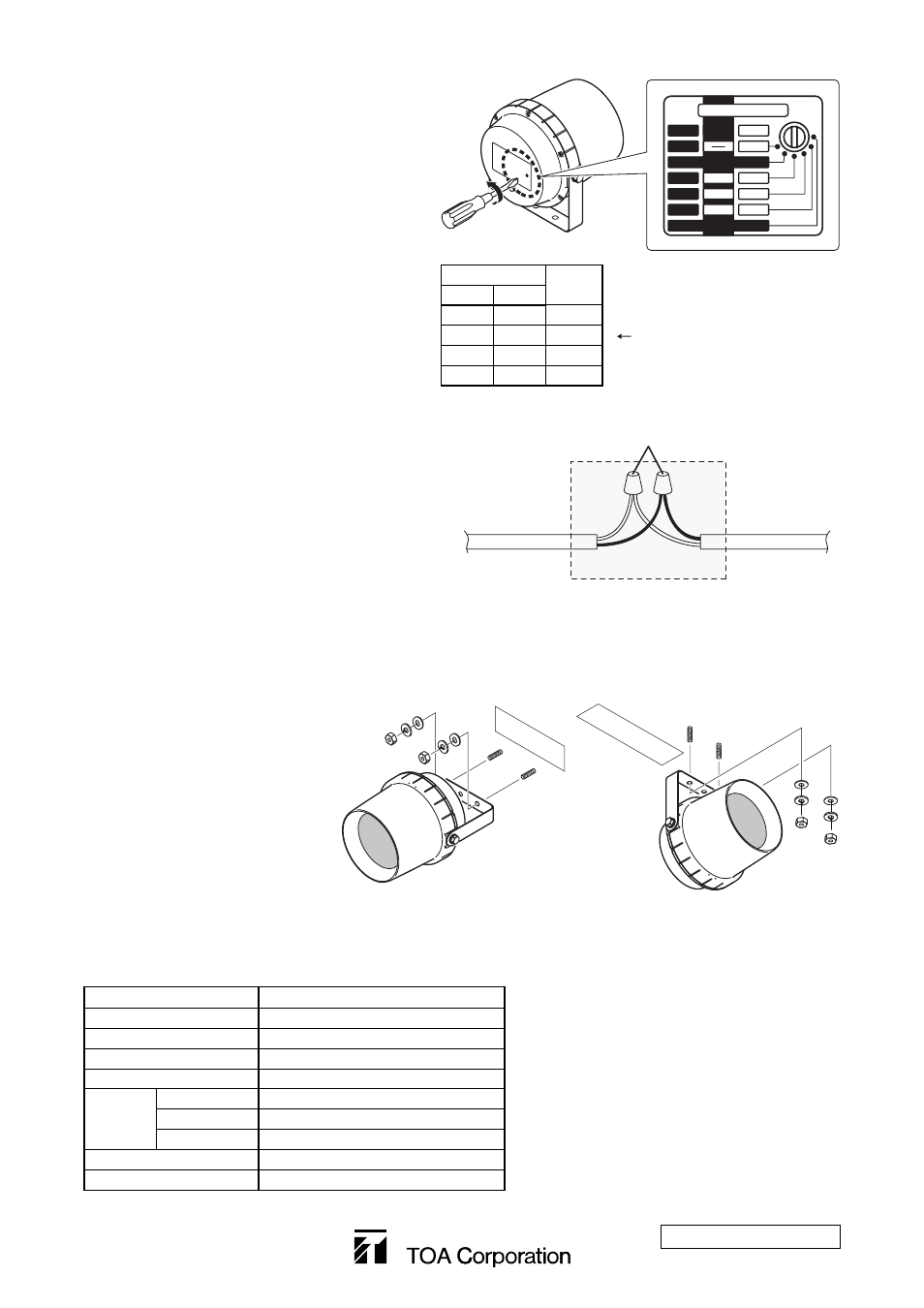

5. IMPEDANCE CHANGE
The input impedance is factory-preset to 1.7 kΩ.
To change the impedance, change the rear
panel-mounted rotary switch position to the
desired impedance (wattage) using a standard
screwdriver.
Notes
• This speaker is designed to operate on a 70 V
or 100 V line. Do not connect it to the
amplifier's low impedance line.
• No sound is output when the switch is set to
the OFF position.
Caution
Never set the switch to "–" position for 100 V
line operation, as doing so may result in damage
to the speaker.
8. SPECIFICATIONS
* Impedance for 70 V line
Note
The design and specifications are subject to
change without notice for improvement.
Speaker Component 12 cm cone speaker
Rated Input 6 W
Impedance (830 Ω)*, 1.7 kΩ, 3.3 kΩ, 10 kΩ
Frequency Response 130 – 13,000 Hz
Sensitivity 96 dB (1 W, 1 m)
Finish Body ABS resin, off-white, paint
Bracket Stainless steel
Net Zinc-coated steel, gray, paint
Dimensions 233 (w) x 224 (h) x 208 (d) mm
Weight 1.5 kg
Line Voltage
Imp.
70 V 100 V
6 W – 830 Ω
3 W 6 W 1.7 kΩ
1.5 W 3 W 3.3 kΩ
0.5 W 1 W 10 kΩ
Factory-preset values
OFF
OFF
1W
3W
6W
100V
0.5W
1.5W
3W
6W
70V
10kΩ
3.3kΩ
1.7kΩ
830Ω
IMP.
LINE VOLTAGE
Ceiling surface
Wa
ll surface
• Be sure to direct the speaker
down towards the ground.
Otherwise, rain floods the
speaker, causing its failure.
• No mounting hardware such
as bolts and nuts is supplied
with the speaker.
Use commercial mounting
hardware appropriate for the
installation environment.
• Please install only with either
flexible conduit or flexible
wiring.
7. INSTALLATION
[Mounting on the Wall] [Mounting under the Eaves
or on the Ceiling]
6. CONNECTION
Make the connections using marrets (wire nuts)
inside a UL Listed junction box.
Note
This product shall be installed in accordance with
the National Electrical Code, ANSI/NFPA 70.
UL Listed Junction Box
Marrets (wire nuts)
From Speaker From Amplifier (–)
(–) (+)
(+)
533-06-110-5B
