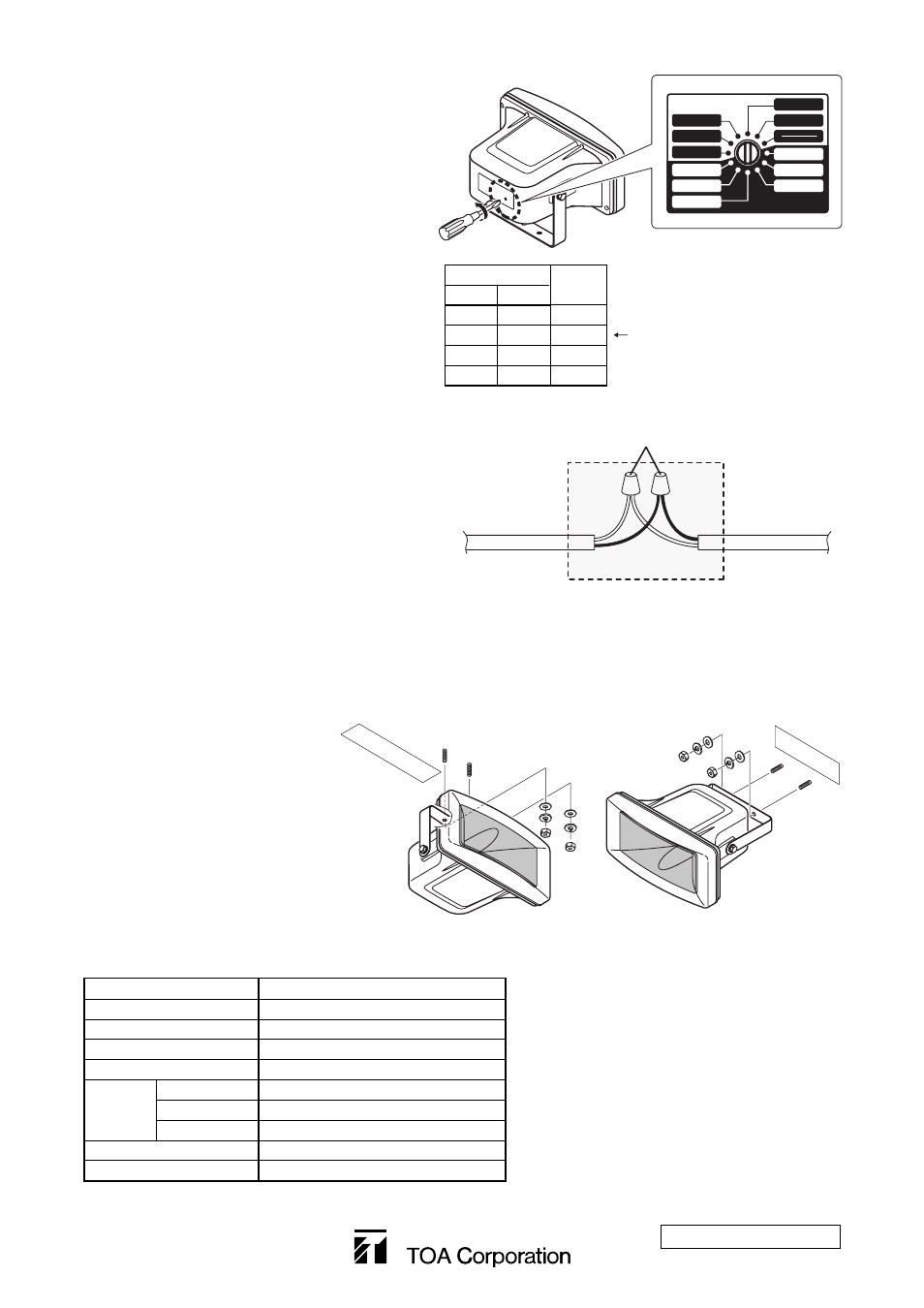

5. IMPEDANCE CHANGE
Input impedance is factory-preset to 330 Ω.
To change the impedance, change the rear
panel-mounted rotary switch position to the
desired impedance (wattage) using a standard
screwdriver.
Notes
• This speaker is designed to operate on a 70 V
or 100 V line. Do not connect it to the
amplifier's low impedance line.
• No sound is output when the switch is set to
the OFF position.
Caution
Never set the switch to "–" position for 100 V
line operation, as doing so may result in damage
to the speaker.
8. SPECIFICATIONS
* Impedance for 70 V line
Note
The design and specifications are subject to
change without notice for improvement.
20W 500Ω
30W 330Ω
OFF
OFF
5W 1kΩ
70V LINE
100V LINE
10W 1kΩ
OFF
OFF
30W 170Ω
15W 330Ω
10W 500Ω
Line Voltage
Imp.
70 V 100 V
30 W – 170 Ω
15 W 30 W 330 Ω
10 W 20 W 500 Ω
5 W 10 W 1 kΩ
Speaker Component 12 cm cone speaker
Rated Input 30 W
Impedance (170 Ω)*, 330 Ω, 500 Ω, 1 kΩ
Frequency Response 120 – 15,000 Hz
Sensitivity 98 dB (1 W, 1 m)
Finish Body ABS resin, off-white, paint
Bracket Stainless steel
Net Aluminum, gray, paint
Dimensions 366 (w) x 230 (h) x 272 (d) mm
Weight 3.1 kg
Wa
ll surface
Ceiling surface
• Be sure to direct the speaker
down towards the ground.
Otherwise, rain floods the
speaker, causing its failure.
• No mounting hardware such as
bolts and nuts is supplied with
the speaker.
Use commercial mounting
hardware appropriate for the
installation environment.
• Please install only with either
flexible conduit or flexible wiring.
7. INSTALLATION
[Mounting on the wall] [Mounting under the eaves
or on the ceiling]
6. CONNECTION
Make the connections using marrets (wire nuts)
inside a UL Listed junction box.
Note
This product shall be installed in accordance with
the National Electrical Code, ANSI/NFPA 70.
UL Listed Junction Box
(–)
(–) (+)
(+)
Marrets (wire nuts)
From Speaker From Amplifier
Factory-preset values
533-06-112-9A
