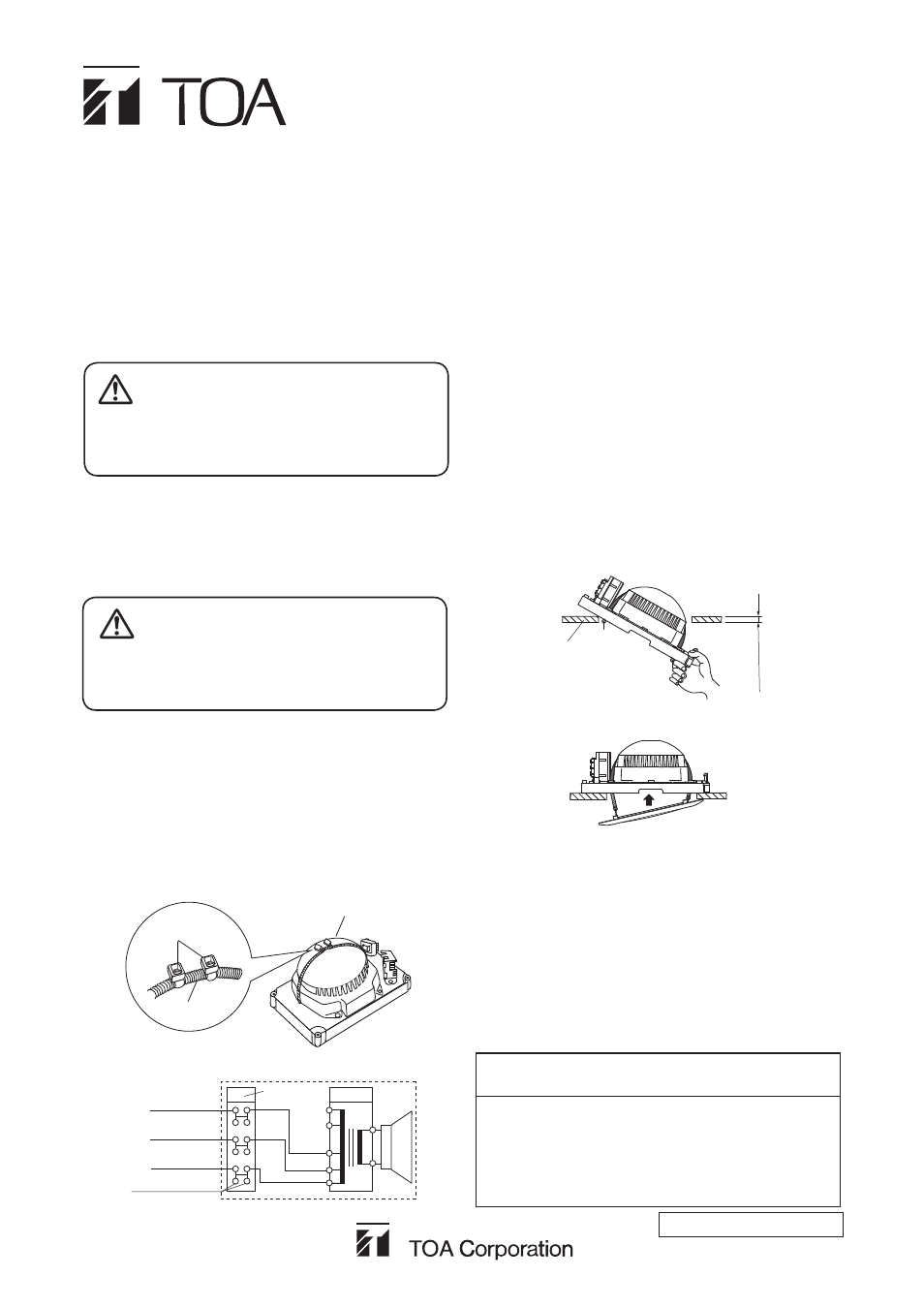

Toa CM-960 User Manual

Ceiling mount speaker, Warning, Caution

background image

Install the unit only in a location that can structurally

support the weight of the unit and the mounting

bracket. Doing otherwise may result in the speaker

falling down and causing personal injury and/or

property damage.

CM-760, CM-960

CEILING MOUNT SPEAKER

INSTALLATION MANUAL

13 kΩ

MT

6.7 kΩ

(BRN)

(BLK)

(WHT)

3.3 kΩ

3 W (3.3 kΩ)

6 W (1.7 kΩ)

COM

Bridging terminal

Terminal

1.7 kΩ

COM

Max. 50 mm

Ceiling

533-06-083-2B

URL: http://www.toa.jp/

Please follow the instructions in this manual to obtain the optimum results from this unit.

We also recommend that you keep this manual handy for future reference.

WARNING

Indicates a potentially hazardous situation which,

if mishandled, could result in death or serious

personal injury.

CAUTION

Indicates a potentially hazardous situation which,

if mishandled, could result in moderate or minor

personal injury, and/or property damage.

1. SAFETY PRECAUTIONS

Before installation or use, be sure to carefully read all the

instructions in this section for correct and safe operation.

4. APPLICAbLE SPEAKER PANELS

• CM-760: CP-73, CP-77

• CM-960: CP-93, CP-97

3. WIRING DIAGRAM

Do not operate the speaker for an extended period

of time with the sound distorting. This is an indication

of a malfunction, which in turn can cause heat to

generate and result in a fire.

Step 4. Connect springs to the speaker panel to attach it.

6. CONNECTIONS

Cables connectable to the push-in terminals are IV or HIV

cables (solid wire of ø0.8 – 1.2 mm or stranded-conductor

of 0.75 – 1.25 mm

2

).

Step 1. Trim a cable jacket about 9 mm. (Use the strip

gauge provided at the terminal block.)

Step 2. Fully insert the cable into the hole in the terminal

according to the cable indications on the terminal.

To remove the cable, press the terminal button,

then pull the cable.

Coil spring

Wire ties

Speaker

2. INSTALLATION PRECAUTION

Never cut off the wire ties attached to the coil spring as

shown below since they serve to prevent the speaker

panel from falling off if the coil spring accidentally beaks.

5. INSTALLATION

Step 1. Make a hole with the following diameter in the

ceiling.

[Mounting hole diameter]

• CM-760: ø150 mm ±3

• CM-960: ø200 mm ±3

Step 2. Connect the speaker cables to the push-in terminal

block. (Parallel-branch connections can be made.)

Step 3. Mount the speaker in the ceiling. Usable ceiling

boards are those which are up to 50 mm thick.

Traceability Information for Europe

Manufacturer:

TOA Corporation

7-2-1, Minatojima-Nakamachi, Chuo-ku, Kobe, Hyogo, Japan

Authorized representative:

TOA Electronics Europe GmbH

Suederstrasse 282, 20537 Hamburg, Germany
