11. SPEAKER STACKING
23
Mount casters of the following specifications, which function as the feet of the rigging frame. Prepare the
casters and caster mounting bolts separately.
[Caster Specifications]
Diameter:
Over 100 mm
Mounting pitch: 71 mm x 71 mm
Mounting bolt (diameter): M10
Mounting plate dimensions: 95 mm x 95 mm
Load-bearing capacity: Over 50% x total weight (rigging frame weight + speaker weight) per caster
Must be equipped with a stopper.
Recommended model:
K52S-100 made by Takigen
11.1. Stack System Outline
It is possible to stack the line array speakers using the SR-RF8 Rigging Frame. Up to eight speakers can be
stacked, noting that each line array speaker is calculated as 1 unit and each SR-C15B sub-woofer as 2 units.

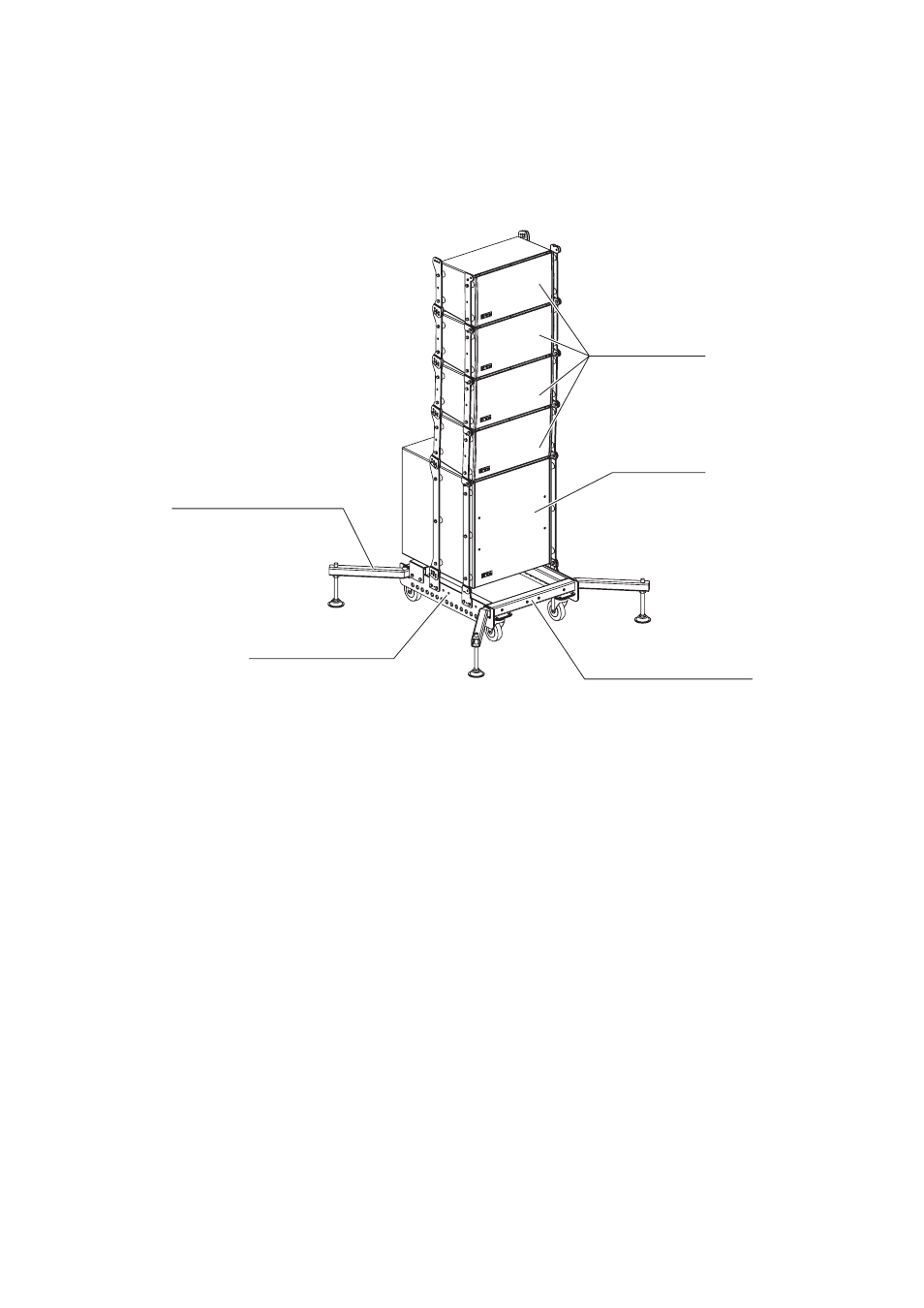

Shown below is a basic stack system. Note that casters must be prepared separately.
Rigging support bracket
SR-SB8
SR-C8L
SR-C15B
Casters
(Prepare separately.)
Rigging frame
SR-RF8
