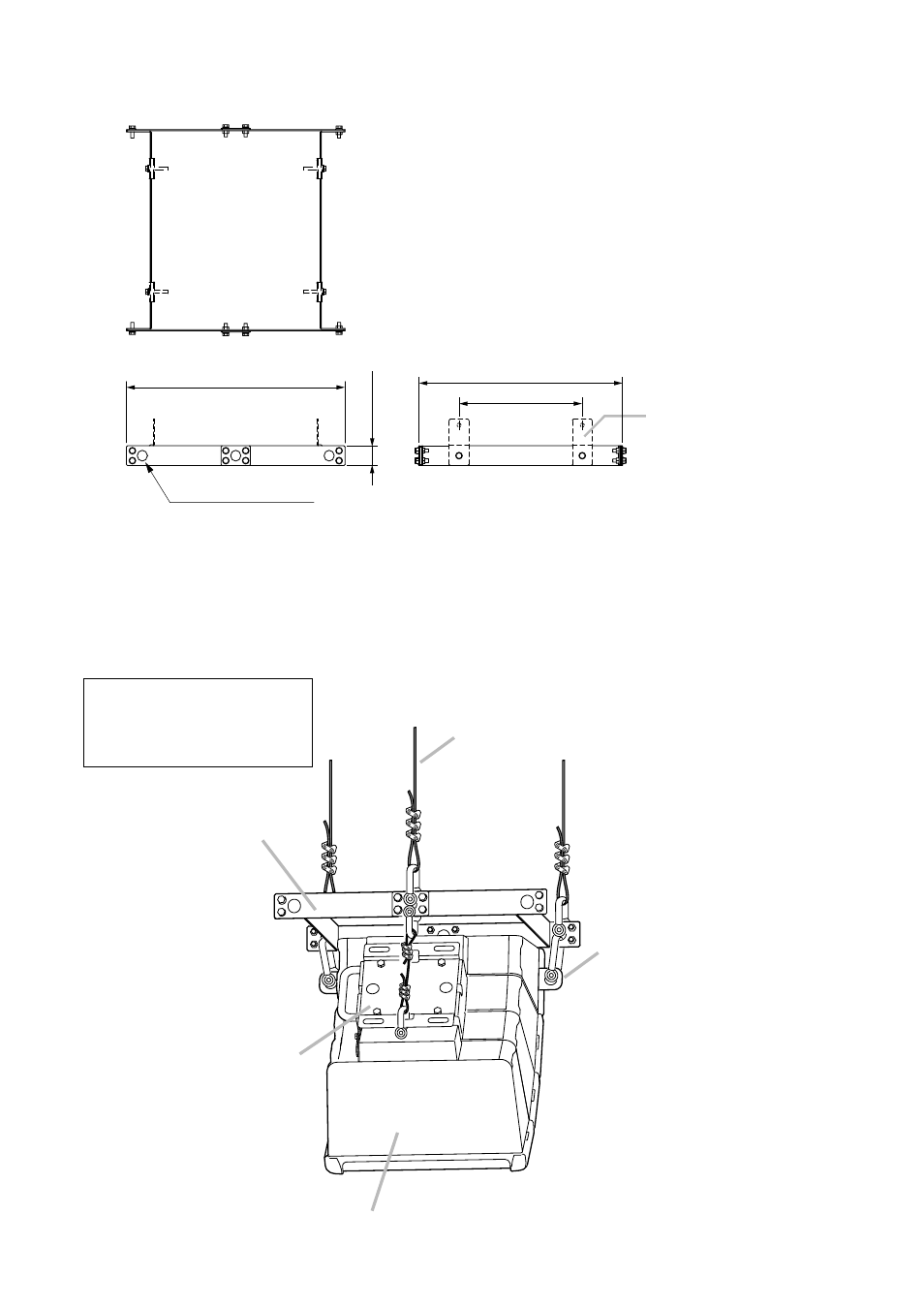

3. DIMENSIONAL DIAGRAM
Subwoofer fixing bracket
(HY-PF1B and HY-PF1W
only, accessory)
550 (21
21
/
32
)
512 (20
5
/
32
)
310 (12
13
/
64
)
50 (1
31
/
32
)
Suspension hole
6-25 x 27 (6-
63
/
64
x 1
1
/
16
)
Unit: mm (inches)
Note
The holes to use for suspension
differ depending on the way of
speaker suspension.
4. SUSPENSION
4.1. When Suspending Only HX-5 Series Speaker Systems
When suspending only HX-5 series with the HY-PF1 series, use chains, wires, or carabiners.
[Example of HX-5 series vertical suspension]
Rear plate
HY-PF1 series
(suspended at 3 points)
HX-5 series (suspended at 3 points)
Use 3 wires for suspension from the ceiling.
1
2
Suspend the HX-5 series at
the same 3 suspension holes
as in step 1.
Note
If the HX-5 series is suspended
horizontally, change the
orientation of the rear plate.
More particularly, refer to the
instruction manual supplied
with the HX-5 series.
A stack of up to 4 HX-5 series
can be suspended vertically.
Only 1 HX-5 series can be
suspended horizontally.
