Note : Do not leave hexagon bolts excessively loose

when installing them temporarily.

4. Fit the two temporarily-installed bolts into the temporary-

fixing slot of both Brackets L and R.

Temporarily-installed bolt with
its spring and plain washers

Plain washer

Spring washer

Hexagon bolt

Nut A (one each on top
and bottom panels)

4-5 mm

Speaker

• Wall mounting

Temporary-fixing slot

5. Move the speaker to install hexagon bolts in Nut B (two

places).

• Horizontal wall mounting

• Ceiling mounting

• Vertical wall mounting

Downward facing
angle of 15

°- 75°

Maximum 509

463

446

Downward facing
angle 45

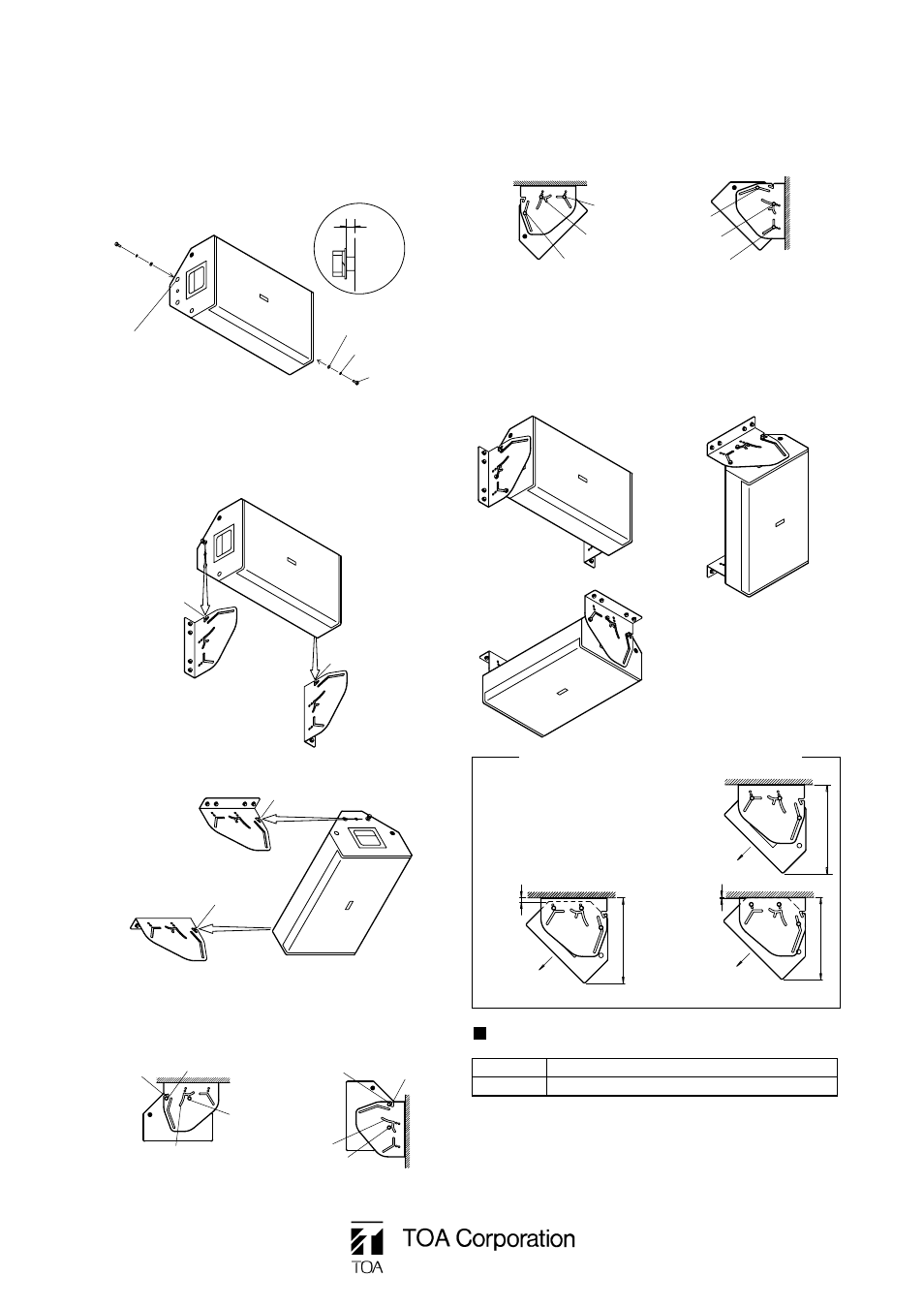

Adjustable Speaker Mounting Angle Range

Unit: mm

Adjustable angle range differs
depending on the bracket's slot
or hole to use.

3. Run the bolt through its spring washer and plain washer,

and temporarily install it in Nut A on each speaker panel
as shown below. (In this case, do not fully tighten the
bolt but leave a gap of 4 to 5 mm between plain washer
and speaker panel to permit the bracket to be inserted.)

Temporary-fixing slot

• Ceiling mounting

• Wall mounting

Temporary-
fixing slot

Angle adjustment
slot B

Nut B

Nut A

• Ceiling mounting

6. Remove bolts from Nut A (two places). Move the

speaker again, and install a plain washer, a spring

washer and a hexagon bolt in Nuts A and C.

• Wall mounting

Nut C

Nut B

Nut A

Nut C

Nut B

Nut A

• Ceiling mounting

Note : When removing the hexagon bolt from Nut A,

ensure another hexagon bolt is installed securely
in Nut B, and support the speaker while removing
the bolt.

7. Adjust the speaker angle, then tighten all hexagon bolts

securely.

SPECIFICATIONS

Note : The design and specifications are subject to change

without notice for improvement.

• Accessories

Hexagon bolt W3/8"

.............................................

Spring washer (W3/8")

........................................

Plain washer (W3/8")

...........................................

Finish

Rolled steel plate, paint, black, semi-mat

Weight 5.5
