35
The EP-059R in Building B's remote control unit corresponds with the EP-029-10 of address 3 in the main
rack (system), while Building C's EP-059R corresponds with the main rack's EP-029-10 of address 5.
In installations like this example, because the EP-059R's zone numbers are 10, the corresponding expansion
control panel in the main rack must also be of the 10-zone type (EP-029-10).

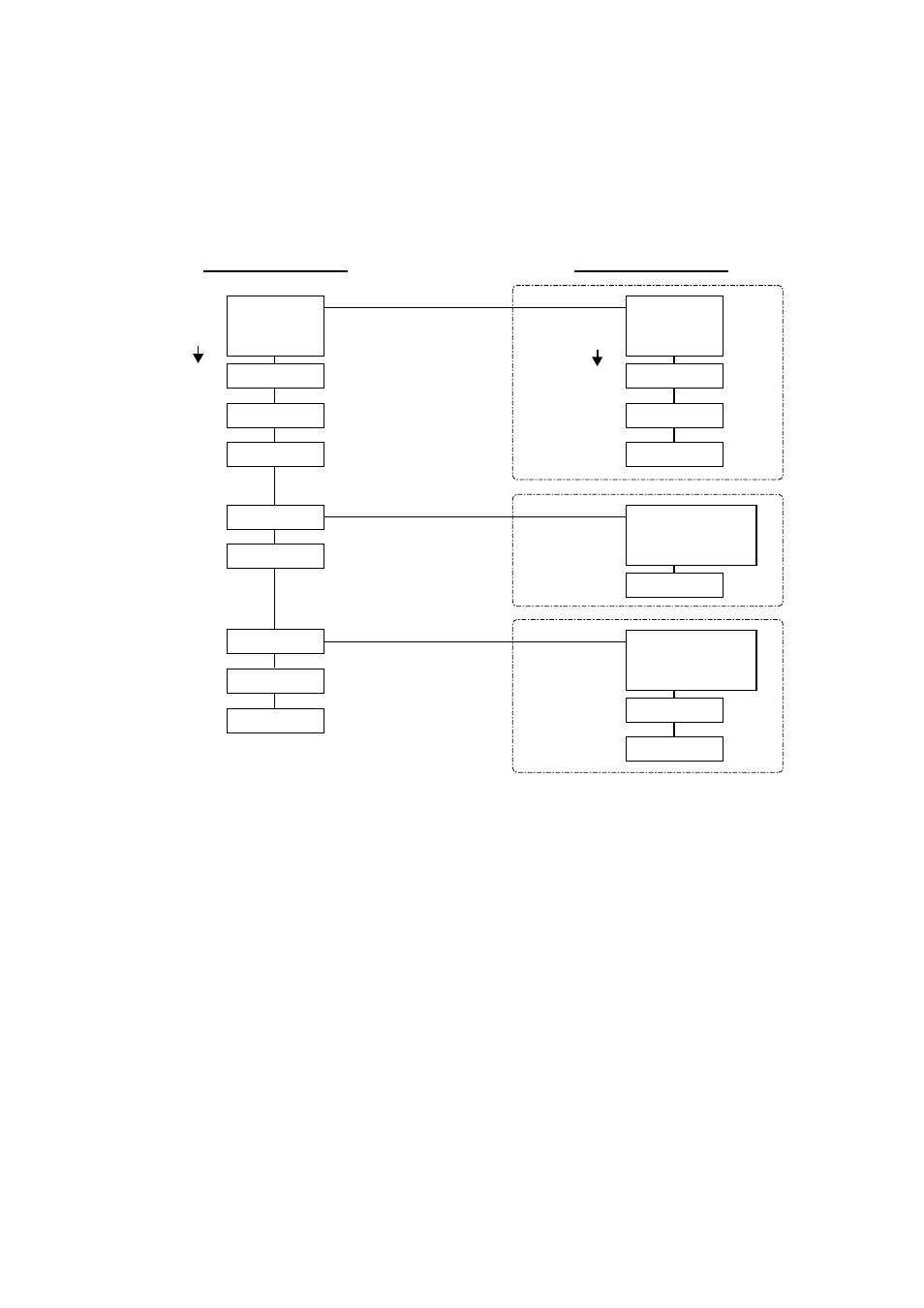

[Conceptional diagram]
EP-0510
EP-029
Address No.
EP-029-10 0
EP-029-20 1
EP-029-10 2
EP-059R
EP-029
Address No.
EP-029-10 0
EP-029-20 1
EP-029-10 2
Main rack (system) Remote control unit
EP-029-10 3
EP-029-10 4
EP-029-10 5
EP-029-20 6
EP-029-10 7
EP-029-20 6
EP-029-10 7
Building A
EP-059R
Shift address 3
EP-029-10 4
Building B
Building C
EP-059R
Shift address 5
