32

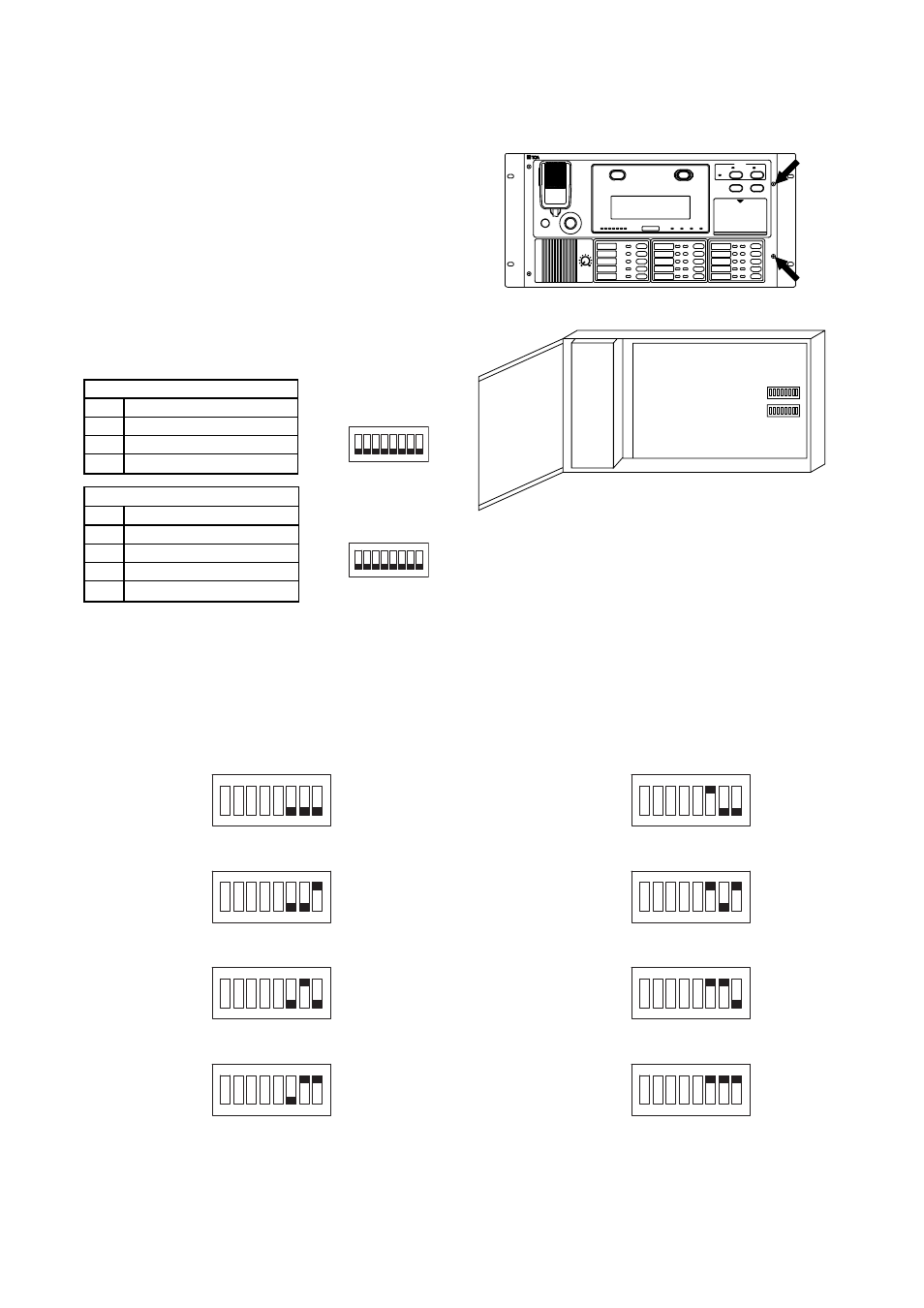

8.5. Remote Control Unit's DIP Switch Settings
Open the door of the Integrated Control Panel EP-
059R by removing its two screws shown in the figure
on the right.
• Set DIP switches SW201 and SW202 on the internal
circuit board.
ON
OFF
6 7 8
First unit Address 0
ON
OFF
6 7 8
Second unit Address 1
ON
OFF
6 7 8
Third unit Address 2
ON
OFF
6 7 8
Fourth unit Address 3
ON
OFF
6 7 8
Fifth unit Address 4
ON
OFF
6 7 8
Sixth unit Address 5
ON
OFF
6 7 8
Seventh unit Address 6
ON
OFF
6 7 8
Eighth unit Address 7
SW201
SW202
SW201
No. Setting Function
1-4 EP-029 shift switch
5 Always OFF
6-8 EP-059R address
SW202
No. Setting Function
1 Remote control mode
2 Voice operation guide
3 EP-029 shift switch
4-8 EP-029 unit numbers
SW201
ON
OFF
1 2 3 4 5 6 7 8
SW202
ON
OFF
1 2 3 4 5 6 7 8
8.5.1. EP-059R address setting
Use SW201's switches No. 6 - No. 8 to set the remote control unit's address. When only one remote control
unit is connected, set its address for "0". The EP-059R's address is set for "0" at the factory.
