Toa RM-971 User Manual

Page 29

background image

EP-059R's terminal plate

To main rack

Main rack

Jumper wire

EP-059R's terminal plate

29

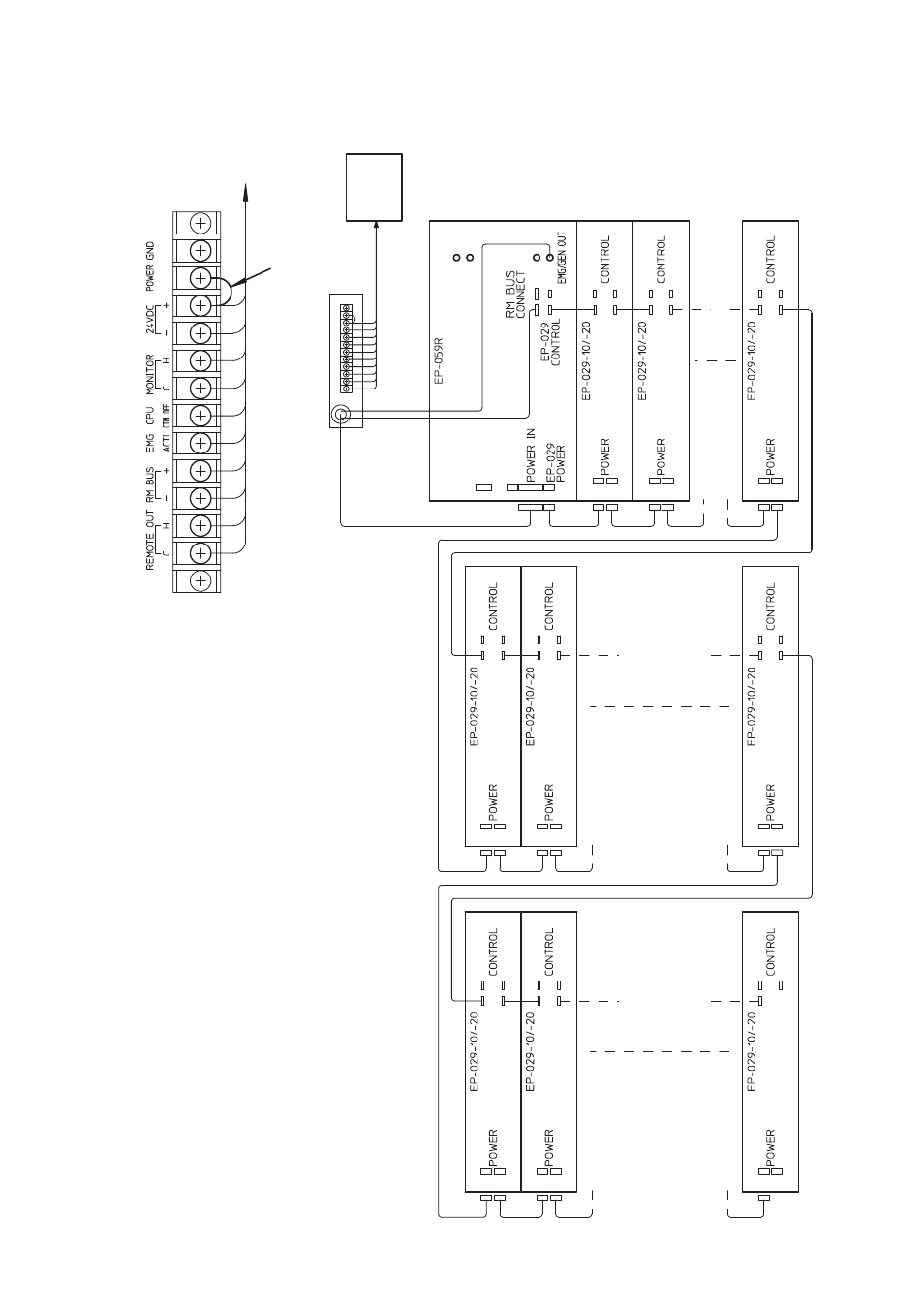

8.3. Inter-panel Connections (RM-971 type)

Note

:

When the length of control connector cable and power

connector cable is insufficient, use the optional Cable Set

YR-932.

YR-932's cable composition

1. EP-EP Control Connector Cable (5 m) x 1

2. EP-EP Power Connector Cable (5 m) x 1
