• Broadcast remains silent
after microphone
announcement completion.
• Check the site and manually
broadcast Evacuation
Announcement or False
Alarm Announcement or
give evacuation instructions
using the PA microphone.
5. DETAILS OF EMERGENCY BROADCAST OPERATIONS

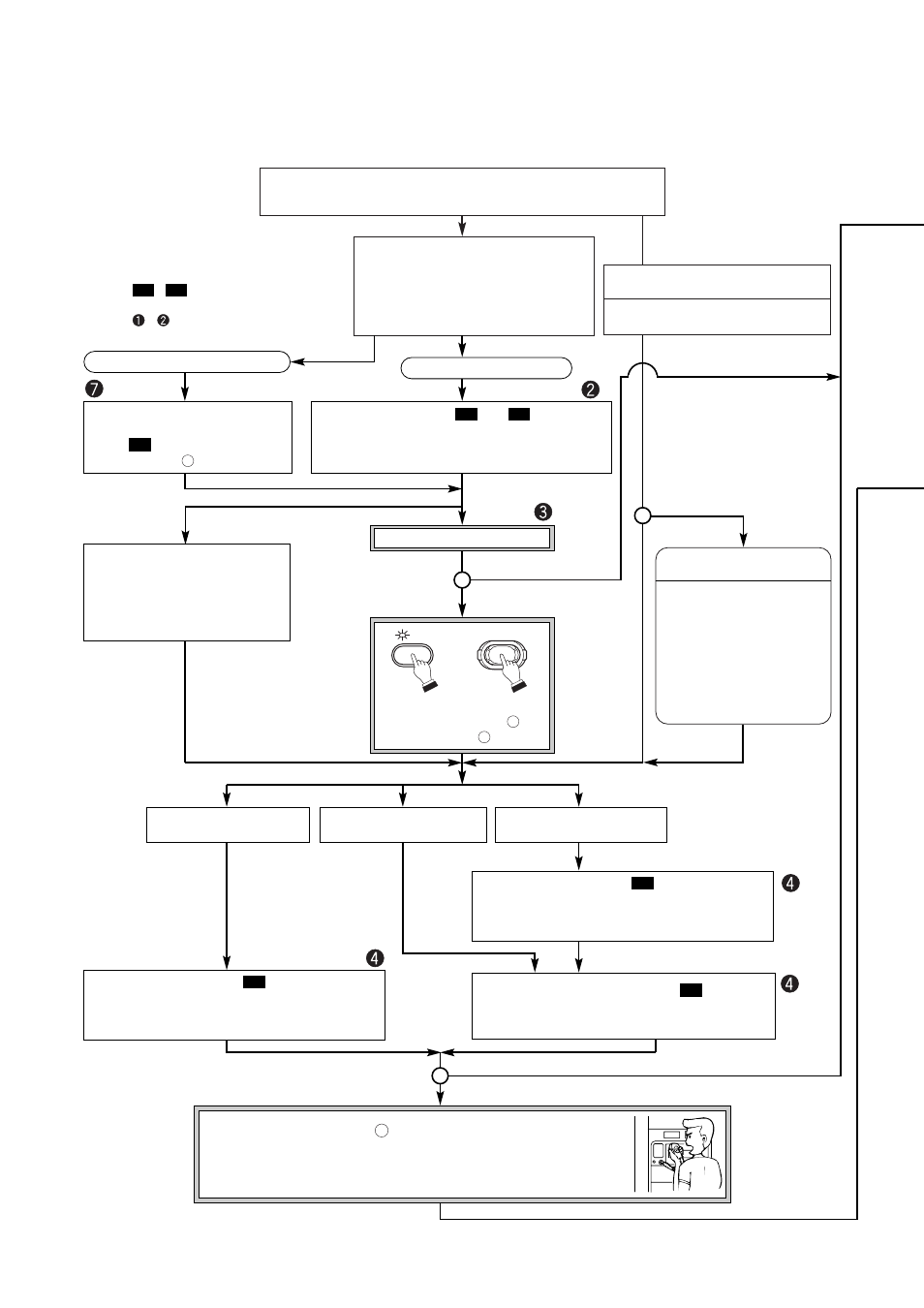

5.1. Emergency Broadcast by Activation of the Fire Alarm System Fire Detector
Activation of the Fire Alarm System's Fire Detector
(Current general-purpose broadcast stops.)
• Fire indicator lights.
• Fire floor indicator lights.
• Zone indicators of the fire floor and
interlock floor light. (Interlock mode)
• Zone indicators of all floors light. (All-
zone interlock mode)
Evacuation Announcement Interval
timer is activated.
*3
Evacuation Announcement Interval
time setting XX minute XX second
Warning Interlock mode
Warning Non-interlock mode
Visit and check the site.
Press the Evacuation
Announcement key
or
Emergency key . 4
7
Announcement using
the PA microphone Activation of one of the following *1
• Emergency telephone
• Fire button
• Other detector
• Fire confirmation signal from the
fire alarm system
All-zone Evacuation Announcement ( ) *2,*4
Broadcasting floor: All floors
Information on the floor first alarm activating is included.
M2
Evacuation Announcement ( ) *2
Broadcasting floor: Fire floor and interlock floor
(Interlock mode) or all floors (All-zone interlock mode)
Information on the floor first alarm activating is included.
M2
• Using the PA microphone , make appropriate announcements for
evacuation. After the microphone announcement is completed, only the
"Second signal" warning tone is repeated.
• Select other floors as well as required. *4
1
EVACUATION EMERGENCY ON
Warning Announcement is not made.
A fire signal tone and voice operation
guide (
) are provided from the
monitor speaker . 24
M6
• Key numbers are those shown in "4.
NOMENCLATURE AND FUNCTIONS" on
p. 7.
• Marks , ....in this section represent
voice alarms or voice operation guides. (p. 17)
• Marks , ....represent the indications to
be displayed on the screen. (p. 18)
M2 M1
Fire
False Alarm Announcement
Time is up.
Time is up.
All-zone Broadcast
Interval timer [Off] All-zone Broadcast
Interval timer [0 minute] Time setting for All-zone
Broadcast Interval timer
All-zone Broadcast Timer starts.
Time is up.
Evacuation Announcement ( ) *2
Broadcasting floor: Fire floor and interlock floor
(Interlock mode) or all floors (All-zone interlock mode)
Information on the floor first alarm activating is included.
M2
Fire
False Alarm Announcement
Warning Announcement ( and )
Broadcasting floor: Fire floor and interlock floor
(Interlock mode) or all floors (All-zone interlock mode)
Information on the alarm activating floor is included.
M5 M1
