Supplied Connection Cables
Power cord, parallel vinyl covered cable, dual phone plug balanced cable
Dual phone plug balanced cable
Dual phone plug balanced cable, PP-JP control/power connector cable
EP-EP control connector cable, EP-EP power connector cable
Power cord, parallel vinyl covered cable (long cable x 1, short cable x 3), junction connector cable
JP-EP control connector cable, JP-EP power connector cable
JP-JP control connector cable, JP-JP power connector cable
21
9. RACK INTER-PANEL CONNECTION

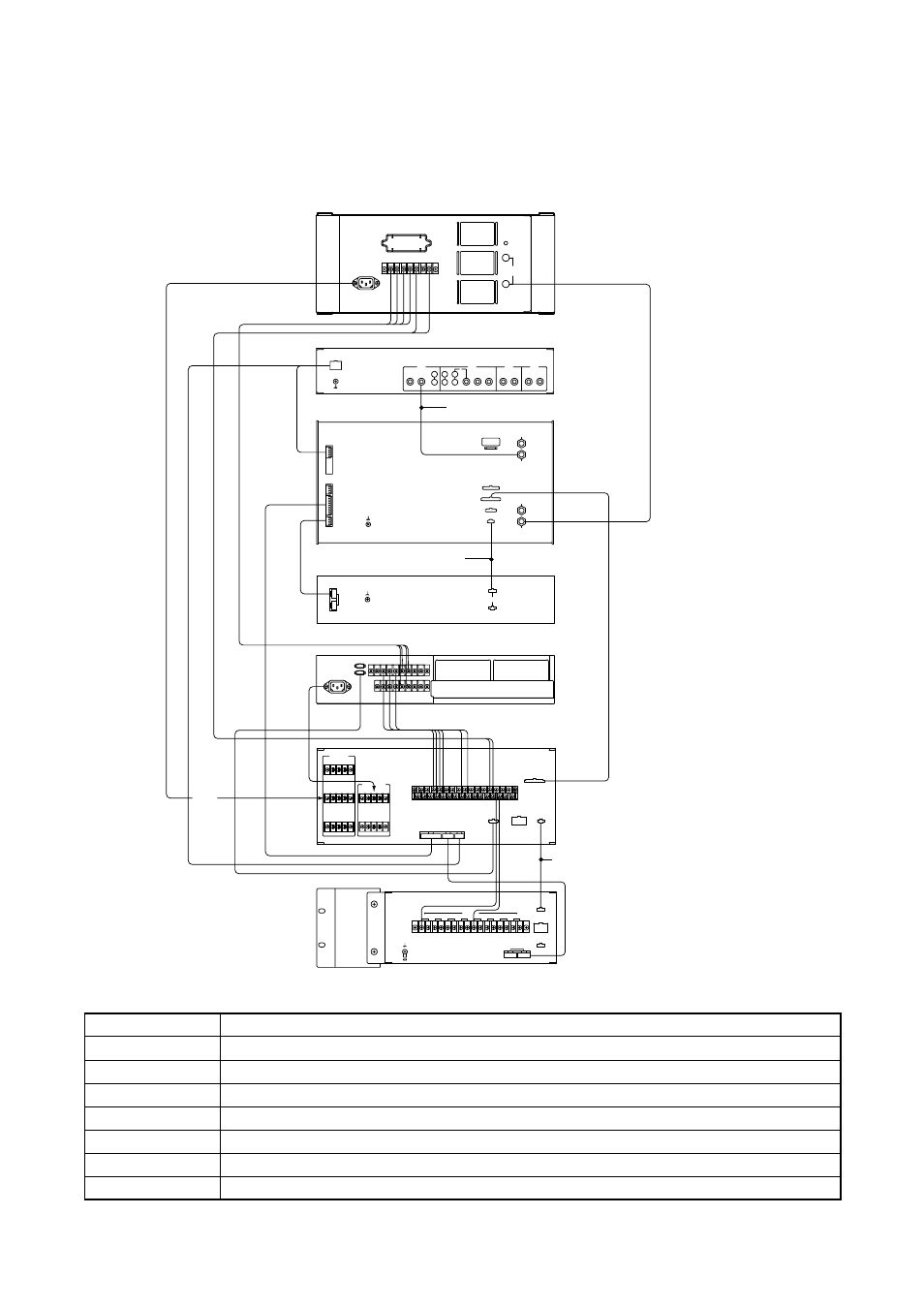

9.1. FS-971 System Panel Connection Diagram
Component Model No.
PA-3640B
PP-025B
EP-0510
EP-029-20
DS-029B
JP-0410
JP-039-20
Supplied with DS-029B.
Supplied with PA-3640B.
connector cable> Supplied with JP-039.
Supplied with DS-029B.
Supplied with DS-029B.
cable> Supplied with EP-029.
Supplied with PA-3640B.
Supplied with EP-0510E.
Supplied with PA-3640B.
Supplied with DS-029B.
Supplied with PP-025B.
Supplied with JP-0410.
cable> Supplied with EP-029.
Supplied with EP-0510.
Supplied with JP-0410.
PA-3640B
PP-025B
EP-0510
EP-029-20
DS-029B
JP-0410
JP-039-20
connector cable>
Supplied with JP-039.
FS-971-36NA
