Toa WA-1822C - Manual (Page 21)

21

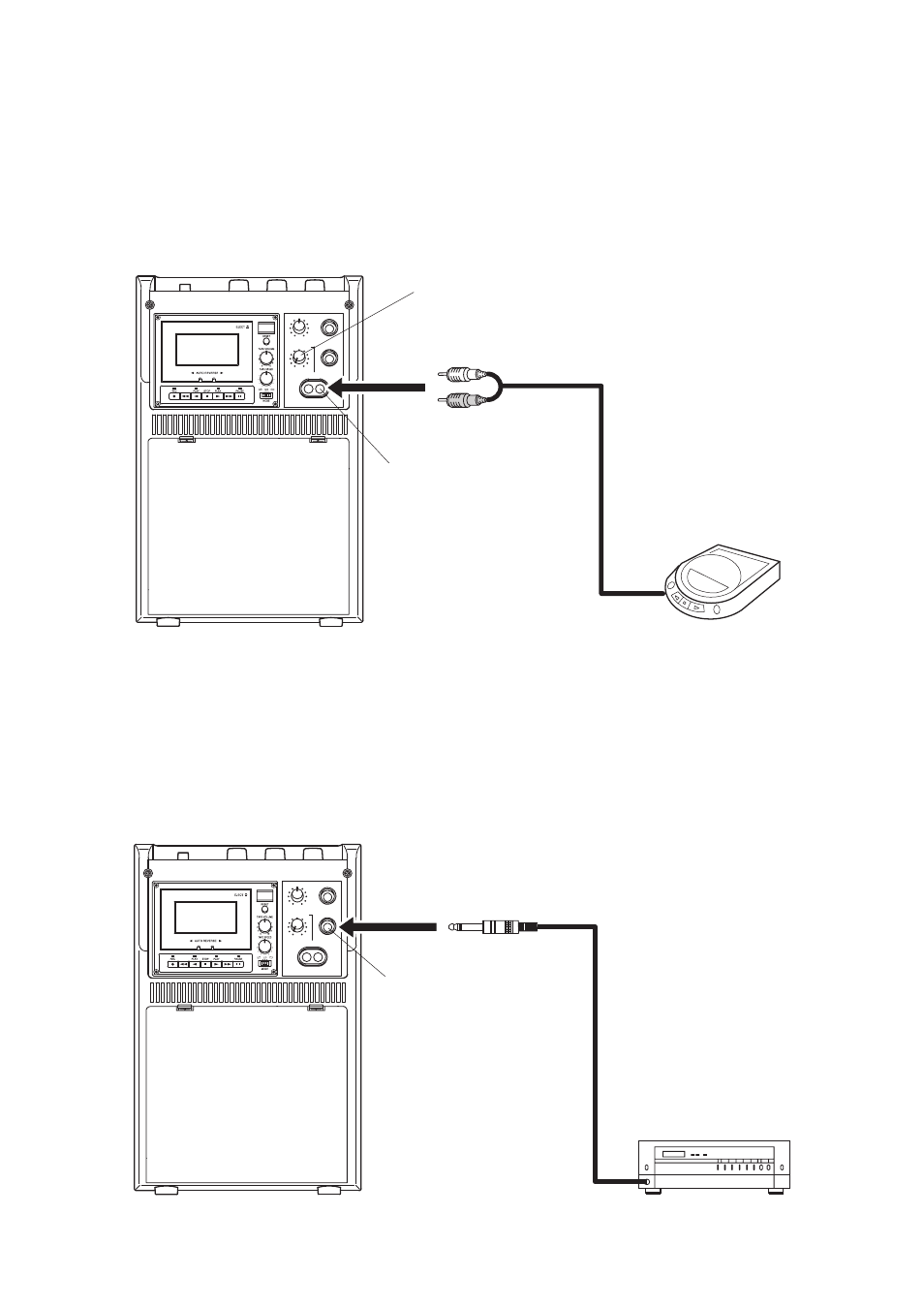

12.2. Using an External CD Player or Cassette Deck (for Playback)
Step 1. Connect the CD player or cassette deck line output to the unit's External Input terminal using a pin
cable. Input sensitivity is –20 dB, 10 kΩ. (0 dB = 1 V)
Step 2. Adjust the volume with the External Input Volume control.
Note
The External Input is monaural. Even if the input signal is stereo, it is played back in single-channel monaural.
0 10
LINE OUT AUX IN
LOW
AUX IN (MONO)
HIGH
WIRED MIC TONE
External input volume control
External input terminal
Pin cable
2
1
CD player or
other sound source
Figure shows the WA-1822C.
12.3. Using an External Amplifier or Cassette Deck (for Recording)
Step 1. Connect the unit's External Output terminal to the external amplifier's AUX terminal or the cassette
deck's Line Input terminal using a phone plug cable. Output sensitivity is – 10 dB, 1 kΩ. (0 dB = 1 V)
0 10
LINE OUT AUX IN
LOW
AUX IN (MONO)
HIGH
WIRED MIC TONE
External output terminal
Phone plug cable
1
External amplifier, etc.
Figure shows the WA-1822C.
