Toa WA-1822C - Manual (Page 20)

20
12. ABOUT EXTERNAL EQUIPMENT
12.1. Using External Speaker
[Recommended External Speaker and Stand]
Speaker: A rated input of 20 W or more, and impedance of 8 – 16 Ω.
Stand:
Mount the speaker on the TOA ST-16, or other stand.
Notes
• Note the correct polarities when connecting an external speaker.
• Take care that the External speaker terminals are not shorted during connection.
OFF
ON
EXT SP
LINE OUT AUX IN
LOW
AUX IN (MONO)
HIGH
WIRED MIC TONE
0 10
OFF
ON
1 2

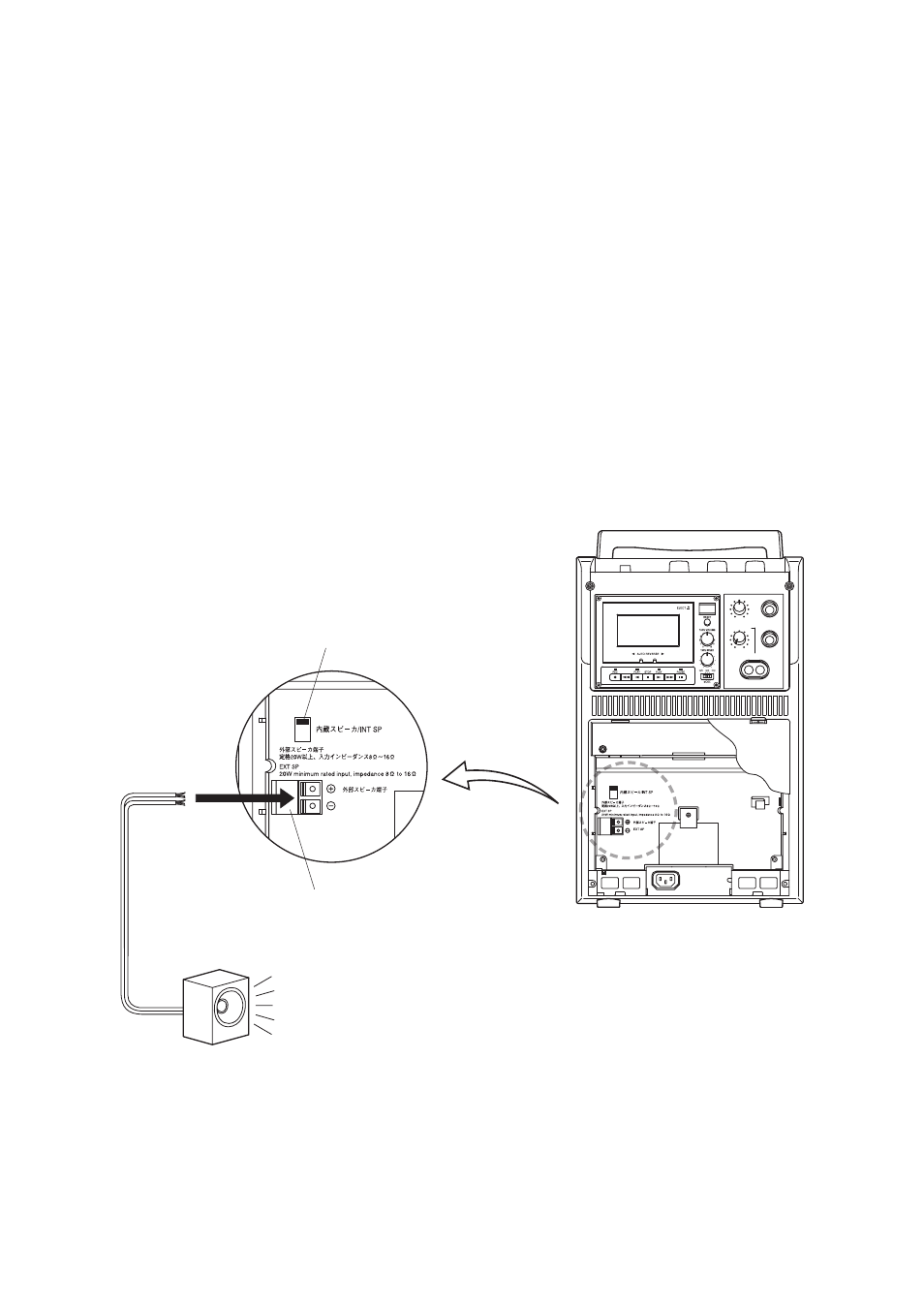

External speaker
External speaker terminal
Figure shows the WA-1822C.
Internal speaker ON/OFF switch
1
2
Step 1. Connect the external speaker to the External speaker terminal.
Step 2. Using the Internal speaker ON/OFF switch, enable or disable the internal speaker.
• ON: Enables the internal speaker.
• OFF: Disables the internal speaker.
Note
The External speaker terminal is always ON regardless of the Internal speaker ON/OFF switch
setting.
