Vector Dynamics System
for Concrete Applications
Instructions (3 of 3)
Single Longitudinal System
#59036
Double Longitudinal System
#59046

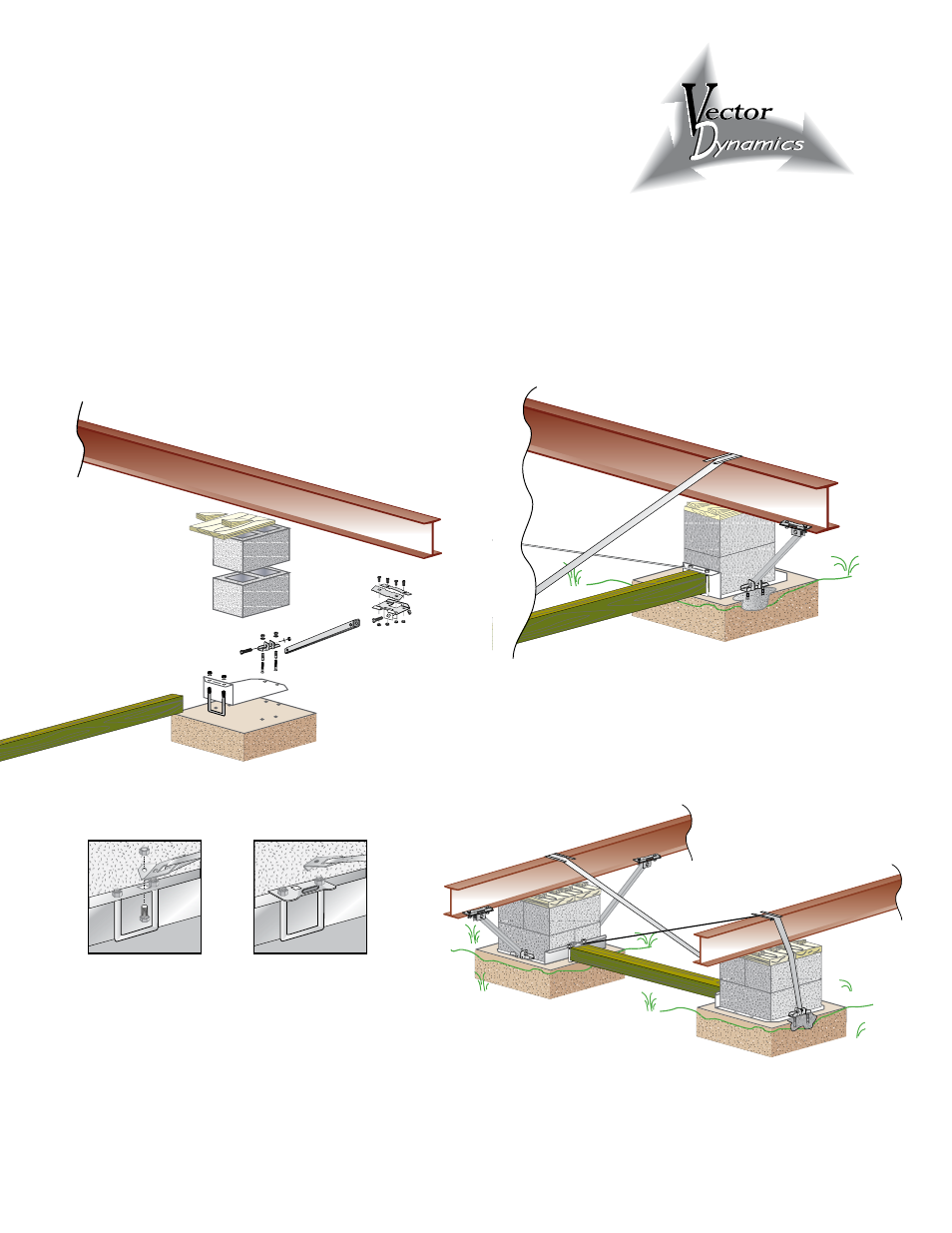

18. Install longitudinal frame brackets to I-beam (do not tighten).
19. Attach longitudinal strut to frame bracket and vector pad.
20. Pull frame bracket clamps with fastened strut outward to remove any slack.
21. Tighten all nuts and bolts on struts and beam clamps.
3/4"
17/32"
from end
Strut
or Swivel Strap
Connection
Frame Tie
Connection
Struts can be cut
to any size needed
3/4"
17/32"
from end
Strut
or Swivel Strap
Connection
Frame Tie
Connection
Struts can be cut
to any size needed
3/4"
17/32"
from end
Strut
or Swivel Strap
Connection
Frame Tie
Connection
Struts can be cut
to any size needed
3/4"
17/32"
from end
Strut
or Swivel Strap
Connection
Frame Tie
Connection
Struts can be cut
to any size needed
12 Revised: 8/19/08
