Tie Down Xi2 "IBC 2009 90 mph Exposure C Foundation System" - Manual (Page 4)

Lateral
Longitudinal
Beam Clamp
Bracket
J-Bolt
Nut & Washer
1-1/2" Tube
Lateral Struts
1-3/4" Tube
4 - #12 x 1"
Tek Screws
I-Beam
Lateral
Longitudinal
Beam Clamp
Bracket
J-Bolt
Nut & Washer
1-1/2" Tube
Lateral Struts
1-3/4" Tube
4 - #12 x 1"
Tek Screws
I-Beam

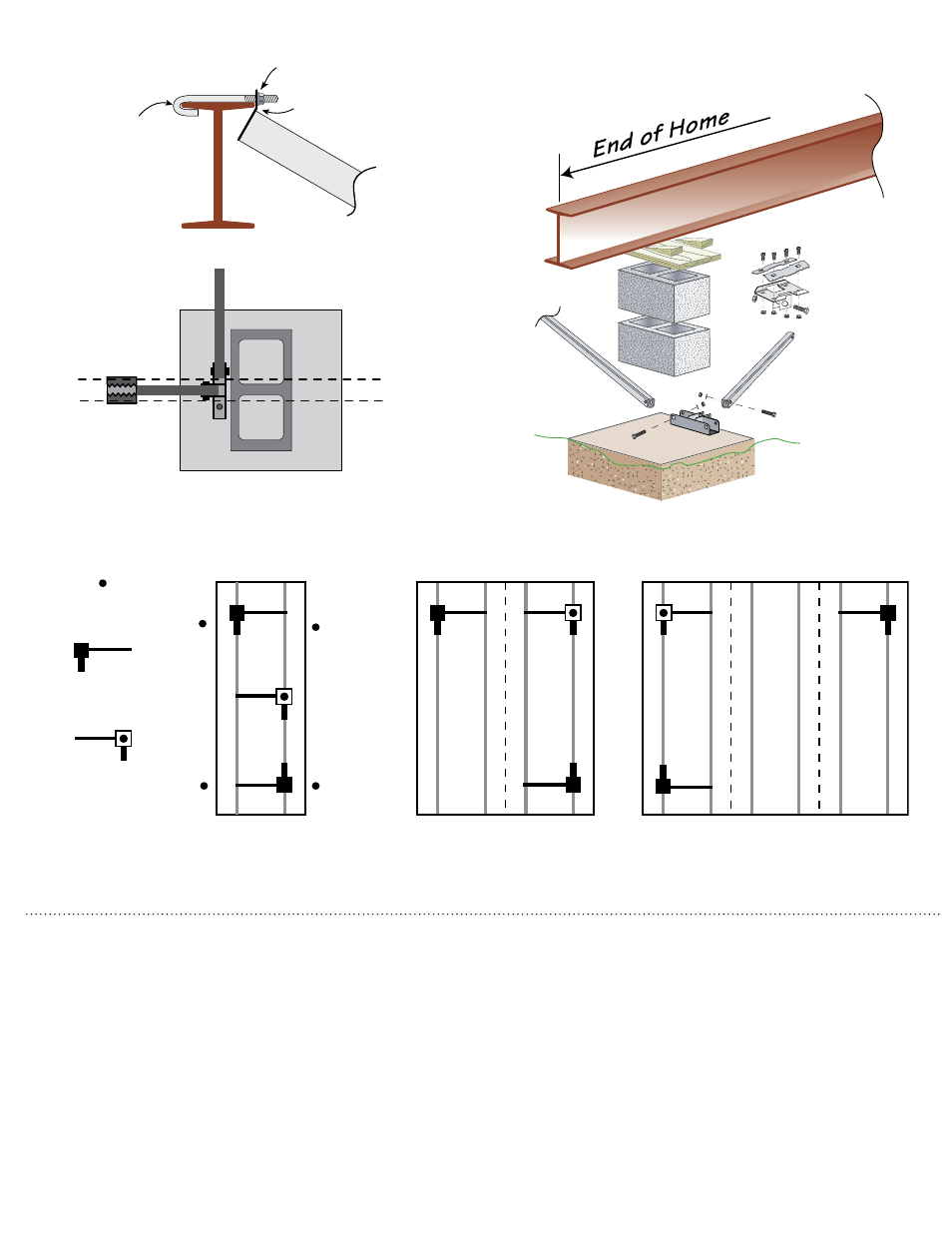

Xi2 Installation Placement
Lateral
Longitudinal
Beam Clamp
Bracket
J-Bolt
Nut & Washer
1-1/2" Tube
Lateral Struts
1-3/4" Tube
4 - #12 x 1"
Tek Screws
I-Beam
Figure 1
Single Section* - WZ I
0 -80’ Box 2 Xi2 Systems
Double Section - WZ I
0 - 80’ Box 2 Xi2 Systems
Triple Section - WZ I
0 - 80’ Box 2 Xi2 Systems
Xi2 Stabilization Pier Placement for Ground or Concrete
Up to 12’
Wall Height
Number of Xi2 Systems Required
14’
Wall Height
0 - 72’ Box 2 Xi2 Systems
76’ - 80’ Box 3 Xi2 Systems
0 - 72’ Box 2 Xi2 Systems
76’ - 80’ Box 3 Xi2 Systems
0 - 72’ Box 2 Xi2 Systems
76’ - 80’ Box 3 Xi2 Systems
30” Anchor*
Xi2 Pier
Placement
3rd System
Placement
(When Needed)
* - 30” anchor with vertical strap or frame tie with stabilizer plate, within 10’ of end of unit on single sections.
NOTE: Wall heights are the eave height for a building without solid skirting. If solid skirting is installed, add the
skirting height and use that sum as the wall height. Tear away skirting such as vinyl is not considered solid skirting.
Diagram represents single section up to 16’ width, double section up to 32’ width, and triple section up to 48’.
For multiple section of units, determine the number of systems based on each group of 3 modules, with the
remainder based on a double or single section (without anchors).
