Mounting base stand – Tie Down Base - Stand Mounting User Manual
Page 2
TIE DOWN ENGINEERING • 255 Villanova Drive SW • Atlanta, GA 30336
www.tiedown.com (404) 344-0000 Fax (404) 349-0401
022213,A1308

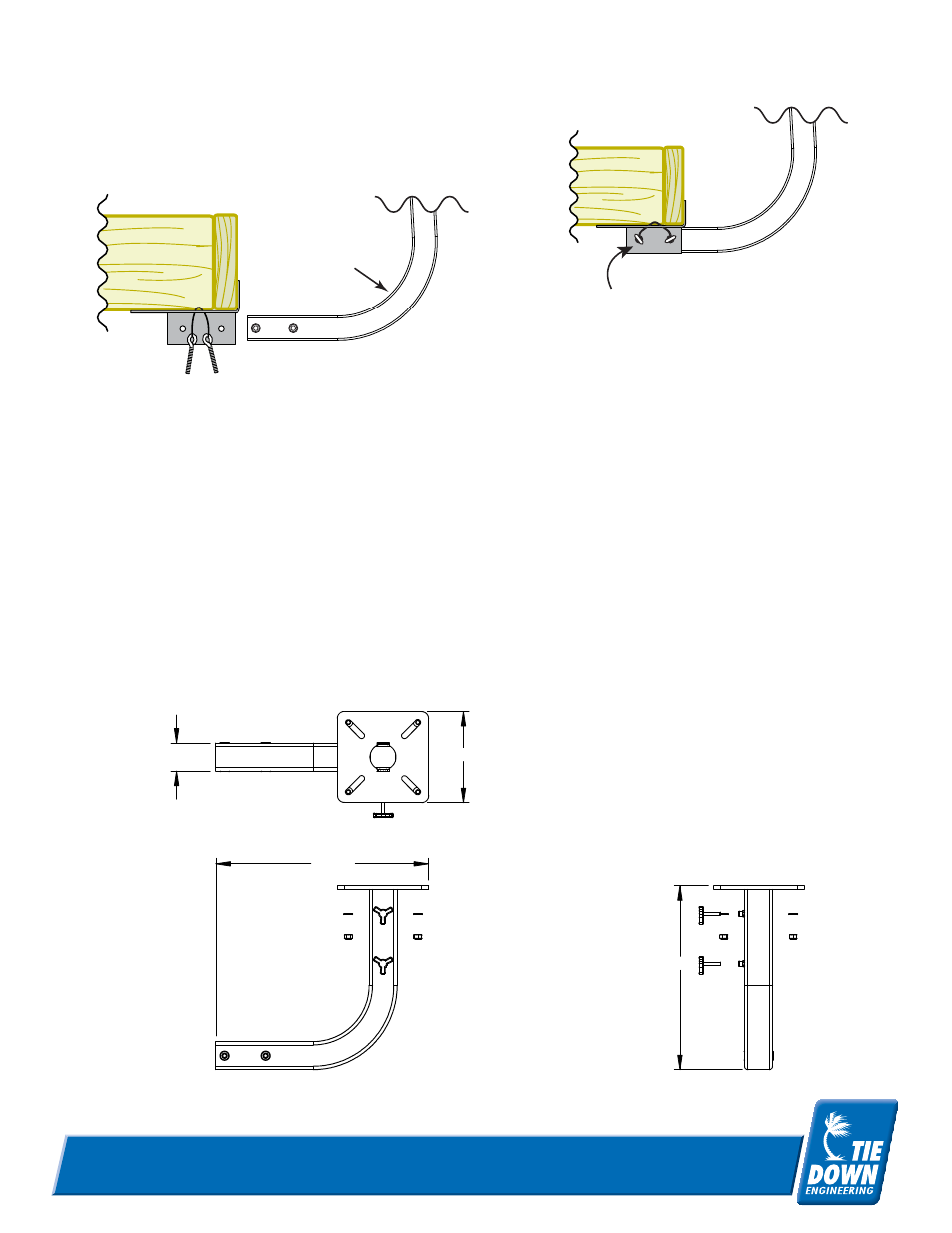

Mounting Base Stand
GalvX #86911 / Galvanized #86929
Eye bolts secure the
receiver to the base.
Once the holes are aliened
hand tighten all eye bolts.
1
6.50
2.00
13.19
15.25
Assembly Instructions:
1 Slide base of support tube into receiver until threaded holes align with holes in receiver.
2 Slide eye bolts through receiver side holes and screw into theaded holes in accessory base. Hand tighten all
eye bolts and then use screw driver shaft to tighten one half turn.
3 Use knob to secure pole type accessories to mounting base.
4 Following directions from accessory manufacturer, bolt accessory to mounting base.
5 Double check and tighten all bolts after installing accessories onto Base Stand.
