Tie Down Bench Structure - Manual (Page 2)

Bench Structure
GalvX #86910 / Galvanized #86928
Assembly Instructions:

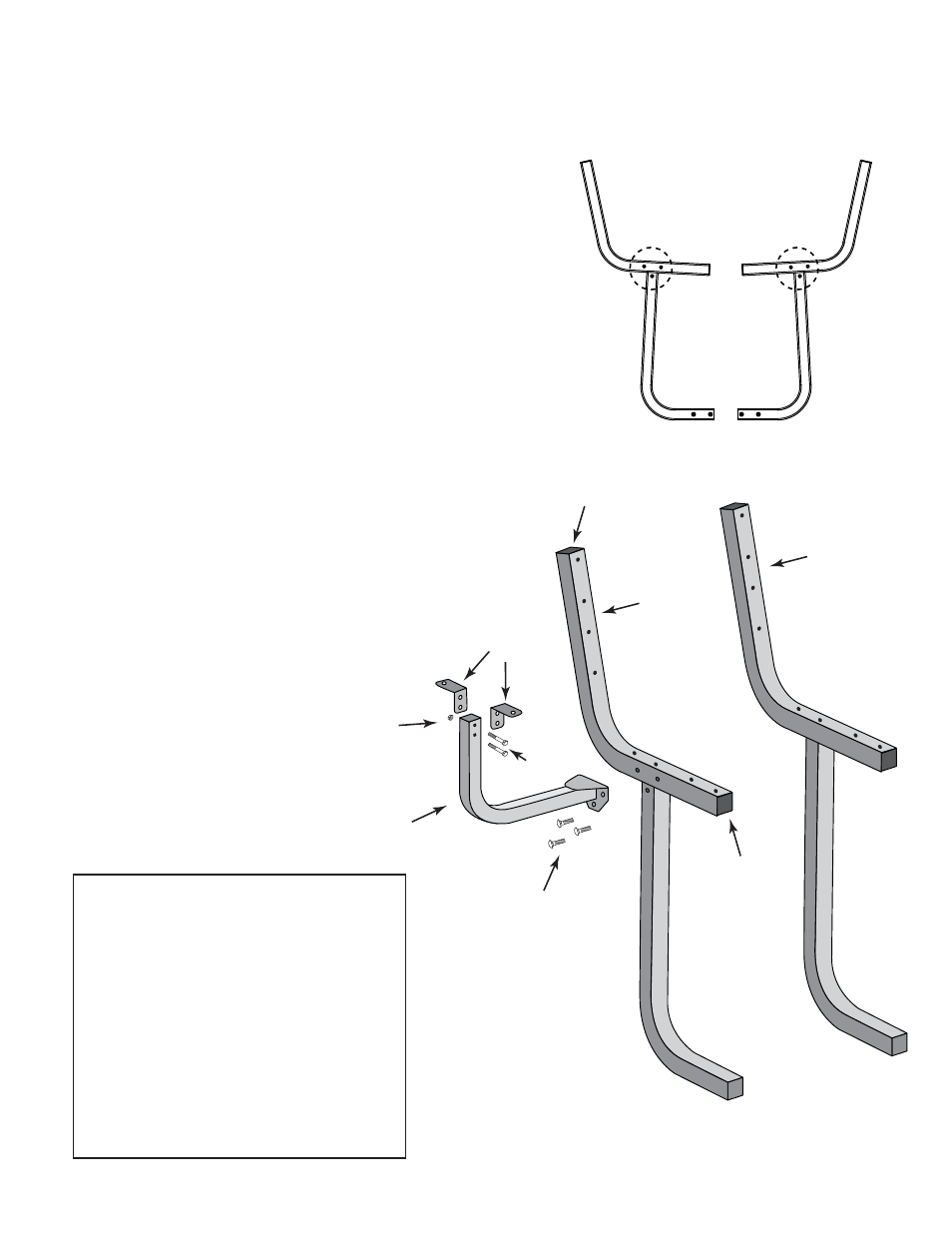

1. Place both Bench Frames (Left and right) on a flat
survice. Position the frames so that they face each
other (see right) with arm rest mounting holes on top.
2. Attach the Arm Rest Mounts (3) to Bench Frame
left (1) and right (2) using 3 - 1/4" x .75" bolts (5).
Bench Structure Parts List
# Description
1 Bench Frame Left
2 Bench Frame Right
3 Arm Rest Mount
4 Arm Rest Bracket
5 1/4" x .75" Hex Bolt, Zinc
6 1/4" x 2.25" Hex Bolt, Zinc
7 1/4" Nyloc Nut
8 2" Sq. Tube Plug
1
2
3
3. Attach the Arm Rest Brackets (3) to
the Arm Rest Mounts using
2 - 1/4" x 2.25" bolts (6).
5
8
1 2
Arm Rest Mounting
holes
8
4
6
7
