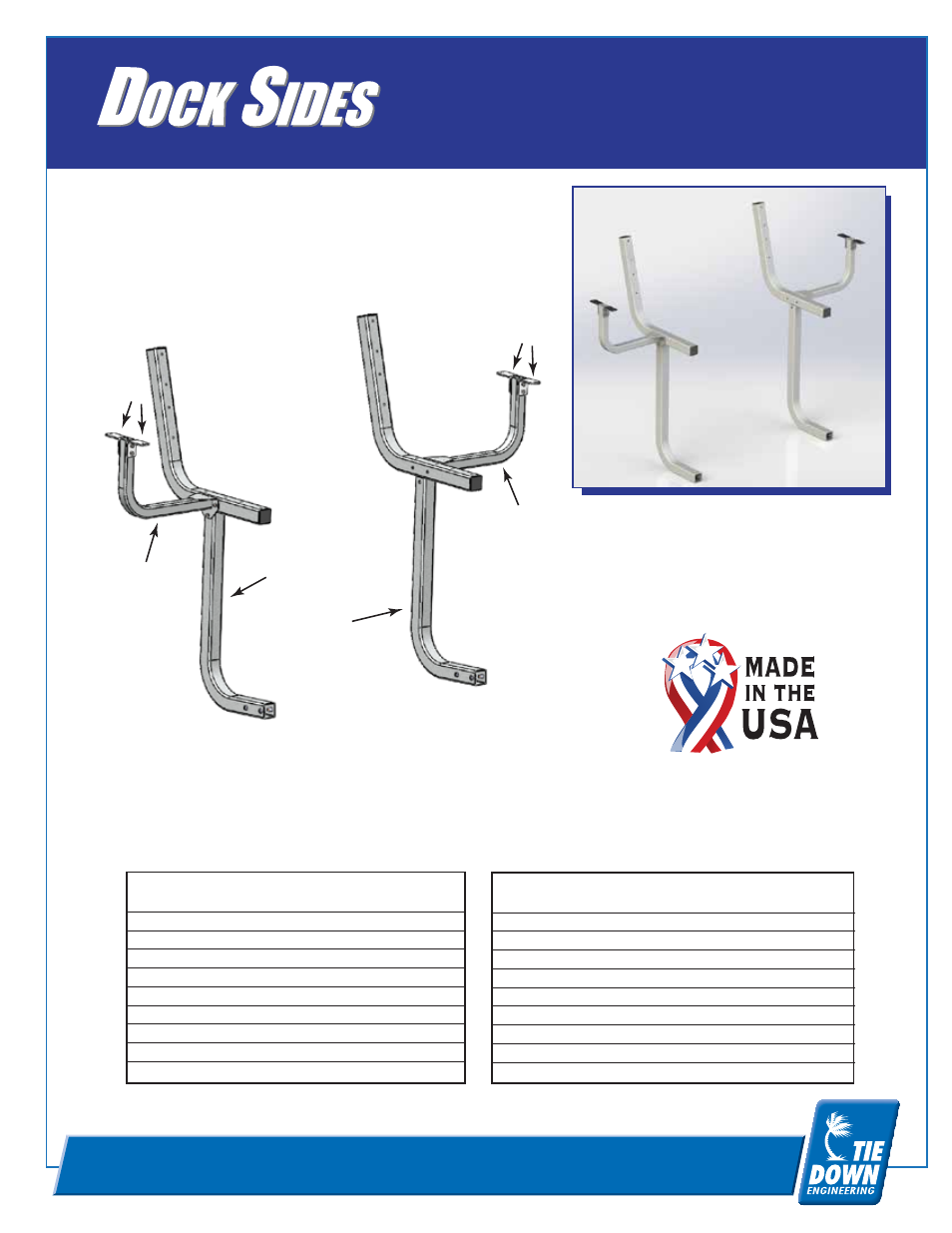

Bench Structure
GalvX #86910 / Galvanized #86928
MAKE YOUR DOCK A DESTINATION
Instruction Sheet #08189
Warnings
Caution should be used when operating electrical tools near
water. Failure to use caution can result in injury or death.
Tools Required:
2 - 7/16 Wrenches or Sockets
GalvX Dual Coat Finish - #86910 Parts List
#
Part #
Qty Description
1 86910-1LA 1
Bench Frame Left
2 86910-1RA 1
Bench Frame Right
3 86910-2
2
Arm Rest Mount
4 86910-3
4
Arm Rest Bracket
5
10518
6
1/4" x .75" Hex Bolt, Zinc
6
10522
4
1/4" x 2.25" Hex Bolt, Zinc
7
10656
4
1/4" Nyloc Nut
8
17511
4
2" Sq. Tube Plug
Hot Dipped Galvanized Finish - #86928 Parts List
#
Part #
Qty Description
1 86928-1LA 1
Bench Frame Left
2 86928-1RA 1
Bench Frame Right
3 86928-2
2
Arm Rest Mount
4 86928-3
4
Arm Rest Bracket
5
10518
6
1/4" x .75" Hex Bolt, Zinc
6
10522
4
1/4" x 2.25" Hex Bolt, Zinc
7
10656
4
1/4" Nyloc Nut
8
17511
4
2" Sq. Tube Plug
4
1
2
4
3
3
Parts List
1
2x6 by 5'
Wood or Composite Material (4)
2
1x4 by 12”
Wood or Composite Material (2)
3
1/4" x 2.75"
Flat Head Machine Screw (16)
4
1/4" x 1.5"
Flat Head Machine Screw (4)
5
1/4"
Nyloc Nut (20)
