Tie Down Single Kayak Rack - Manual (Page 2)

TIE DOWN ENGINEERING • 255 Villanova Drive SW • Atlanta, GA 30336
www.tiedown.com (404) 344-0000 Fax (404) 349-0401
012513,A1298
Single Kayak Rack
GalvX #86903 / Galvanized #86921

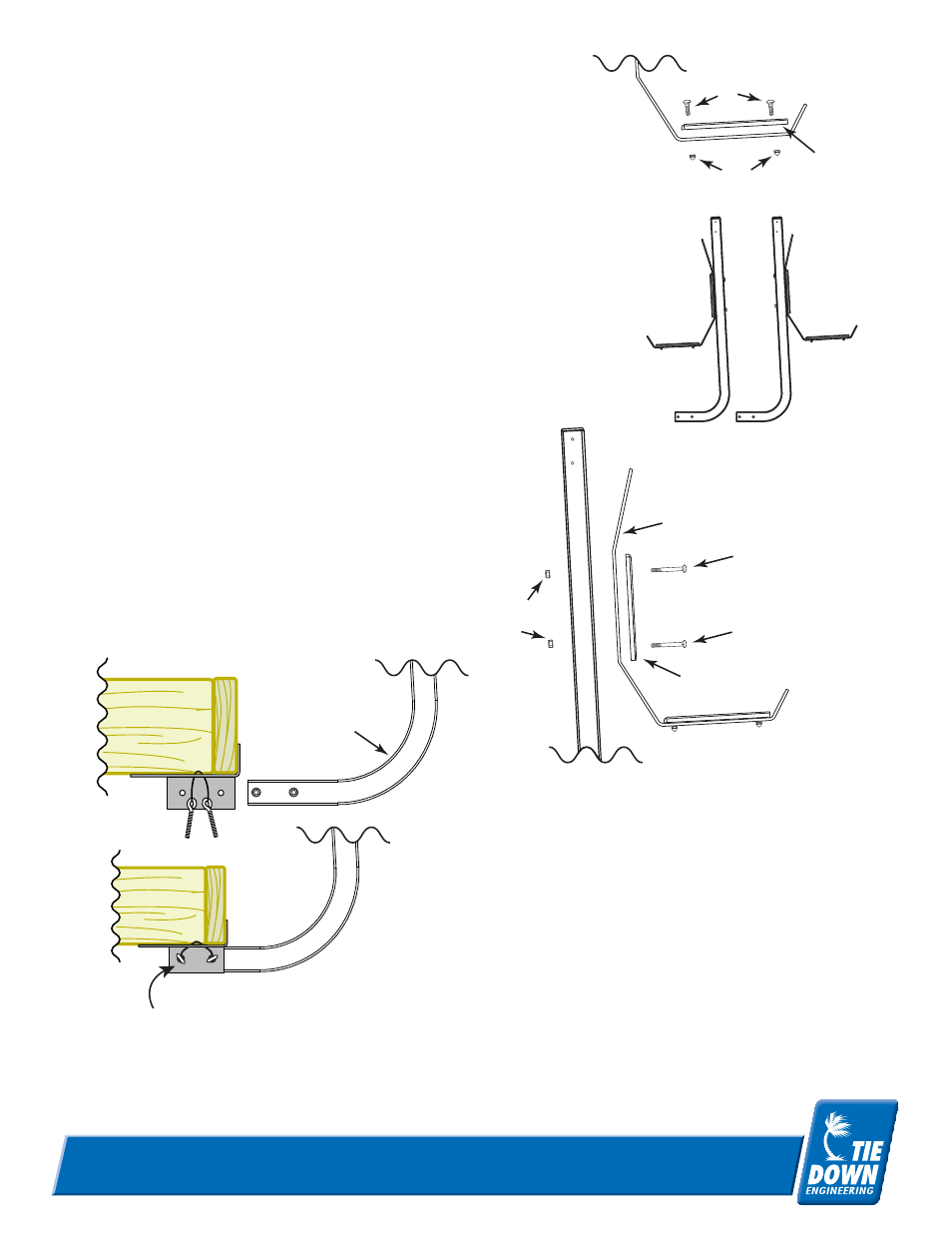

Eye bolts secure the receiver
to the kayak rack base.
Once the holes are aliened
hand tighten all eye bolts.
1
Assembly Instructions:
1. Using 2 - 1/4" x 0.5" pan head screws (5) and
2 - 1/4" acorn nuts (6) attach bracket pads (3) to
bottom of Kayak brackets (2). See exhibit 1
2. Kayak brackets can be mounted on either side of
accessory support tubes (facing toward dock or
away from dock). Determine which side you prefer
and proceed to step 3.
3. Slide 2 - 1/4" x 2.75" pan head screws (4) through
bracket pads (3) and then through vertical portion
of Kayak bracket (2), then secure bracket to
support tube stand (1) using 2 - 1/4" nyloc nuts (7).
See exhibit 3.
4. Repeat steps 1-3 for the remaining kayak rack.
Exhibit 2
Exhibit 3
Dock Side
Placement
Away Side
Placement
Exhibit 1
3
5
6
2
4
3
7
4
Installation Instructions:
1. Slide base of accessory tube into receiver until
threaded holes align with holes in receiver.
2. Slide eye bolts through receiver side holes and screw
into threaded holes in accessory base. Hand tighten all
eye bolts and then use screw driver shaft to tighten
one half turn.
3 Secure kayak to rack using 2 - 3' cam straps (9).
