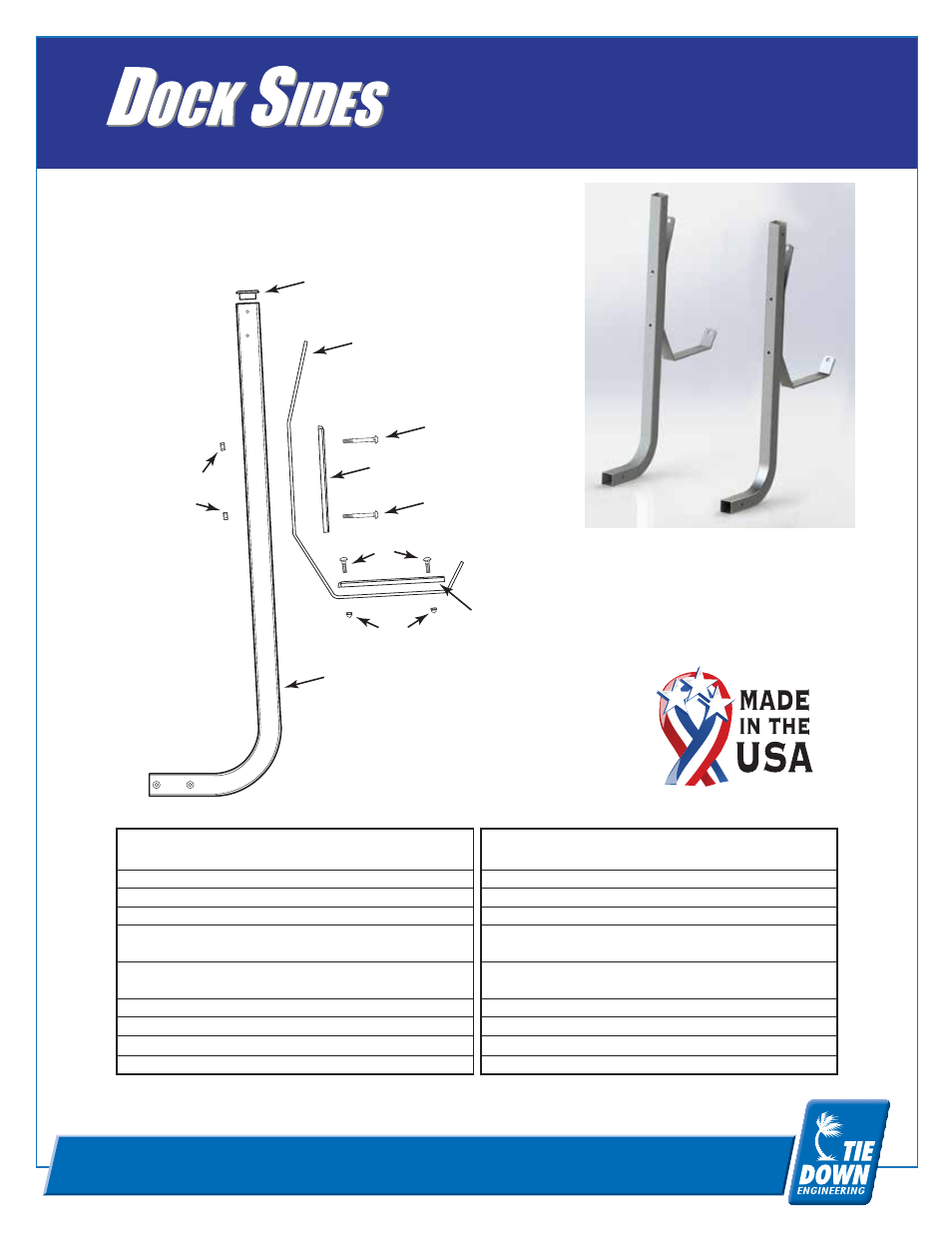

Single Kayak Rack
GalvX #86903 / Galvanized #86921
MAKE YOUR DOCK A DESTINATION
Instruction Sheet #08183
Warnings
Caution should be used when operating electrical tools near
water. Failure to use caution can result in injury or death.
Tools Required:
#2 Phillips Head Screw Driver
7/16” Wrench or Socket
8
1
2
4
3
3
7
4
5
6
GalvX Dual Coat Finish - #86903 Parts List
# Part #
Qty
Description
1 86909-1A
2
Accessory Support Tube
2 86904-2
2
Kayak Bracket
3 48668-C1
4
Bracket Pad
4 10964
4
1/4" x 2.75" Pan Head
Machine Screw, Zinc
5 10929
4
1/4" x 0.5" Pan Head Machine
Screw, Zinc
6 10029
4
1/4" Acorn Nut, Black Nylon
7 10656
4
1/4" Nyloc Nut
8 17511
2
2" Sq. Tube Plug
9 18256
2
2"x 3' Cam Strap
Hot Dipped Galvanized Finish - #86921 Parts List
# Part #
Qty
Description
1 86927-1A
2
Accessory Support Tube
2 86922-2
2
Kayak Bracket
3 48668-C1
4
Bracket Pad
4 10964
4
1/4" x 2.75" Pan Head
Machine Screw, Zinc
5 10929
4
1/4" x 0.5" Pan Head Machine
Screw, Zinc
6 10029
4
1/4" Acorn Nut, Black Nylon
7 10656
4
1/4" Nyloc Nut
8 17511
2
2" Sq. Tube Plug
9 18256
2
2" x 3' Cam Strap
