Cross Beam 28” Extension
GalvX #86916 / Galvanized #86934
Installation Instructions for 28” Cross Beam Extension :
1. For positioning follow the instructions included with the Clamp or Slotted Receivers.
2. Continue to follow the instructions for mounting the Slotted/Clamp Receivers and the Cross Beam
Mounting Plates.
3. Slide the 28” extension tube (1) over the cross beam. Align with the bolt holes and secure and tighten
the
1" bolts (2).
4. With the help of an assistant attach the cross beam and extension (#1) to the cross beam mounting plate,
following the instructions included with the Slotted/Clamp Receiver Instructions.
5. With the help of an assistant attach the cross beam and extension (#1) to the Slotted/Clamp Receiver,
following the instructions included with the Slotted/Clamp receiver instructions.
6. For Dock Side Accessories requiring two receivers with extensions, the bolts securing the receiver to the
bottom flange of the side panel may need to be loosened to allow proper alignment and insertion of
accessory support tubes.

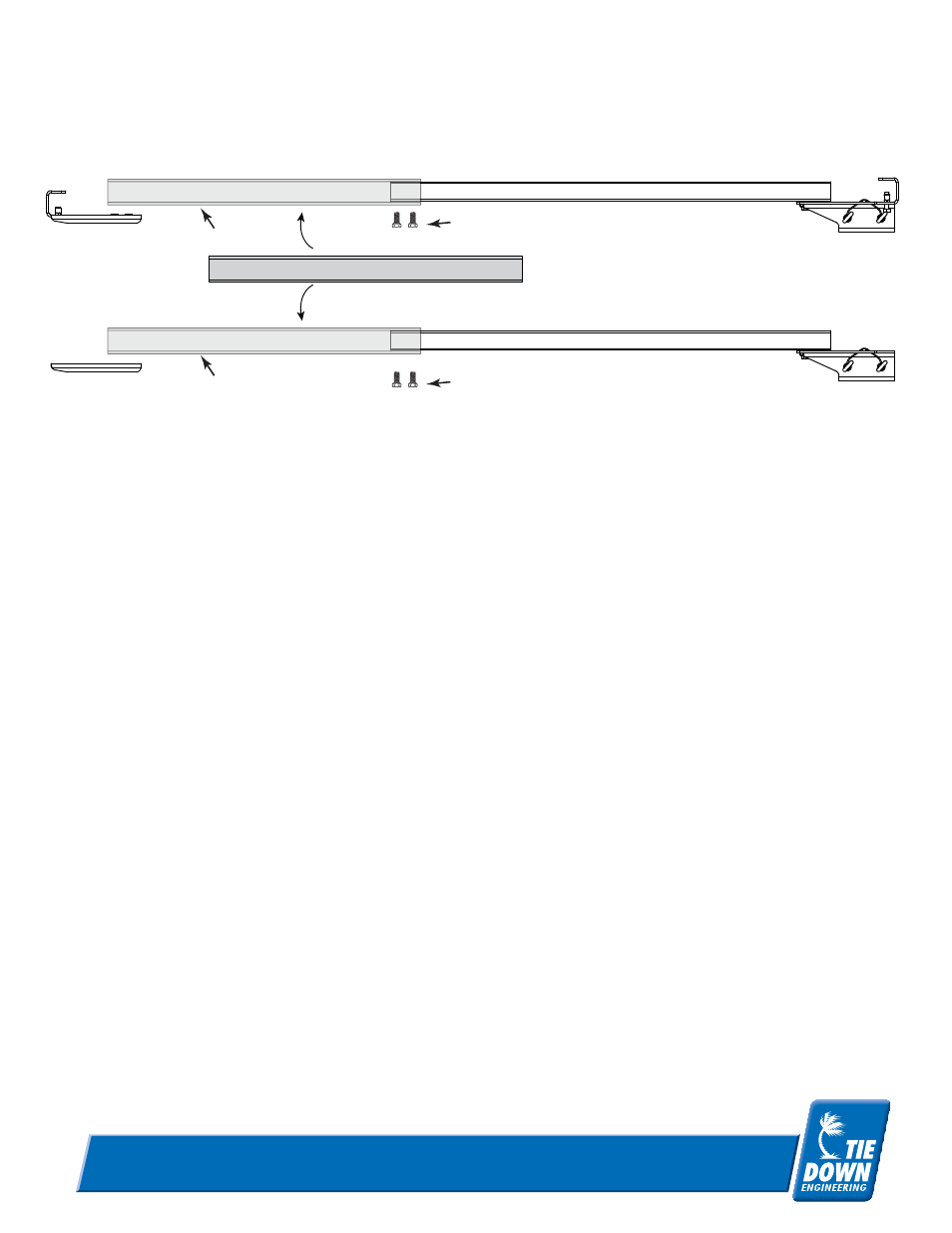

Slotted Receiver
Clamp Receiver
Cross Beam
Mounting Plates
39” Cross Beam
39” Cross Beam
Cross Beam 28” Extension
011713,A1293
Instruction Sheet #08180
2
1
1
2
