TIE DOWN ENGINEERING • 255 Villanova Drive SW • Atlanta, GA 30336

www.tiedown.com (404) 344-0000 Fax (404) 349-0401

011713,A1294

Cross Beam 28” Extension

GalvX #86916 / Galvanized #86934

MAKE YOUR DOCK A DESTINATION

Instruction Sheet #08180

Warning

Caution should be used when operating electrical
tools near water. Failure to use caution can result
in injury or death.

This Cross Beam 28” Extension is for extending standard 4 ft. cross beams to 6 ft. docks.
It is used with the Clamp Receiver with 4 ft. cross Beam part numbers 86918/86900
or Slotted Receiver with 4 ft. Cross Beam part numbers 86919/86901.

GalvX Dual Coat Finish - #86916 Parts List

#

Part # Qty Description

1

86916

1 28" Cross Beam Extension

2

10598

2 3/8" x 1" Bolt, Zinc

Hot Dipped Galvanized Finish - #86934 Parts List

#

Part # Qty Description

1

86934

1 28" Cross Beam Extension

2

10598

2 3/8" x 1" Bolt, Zinc

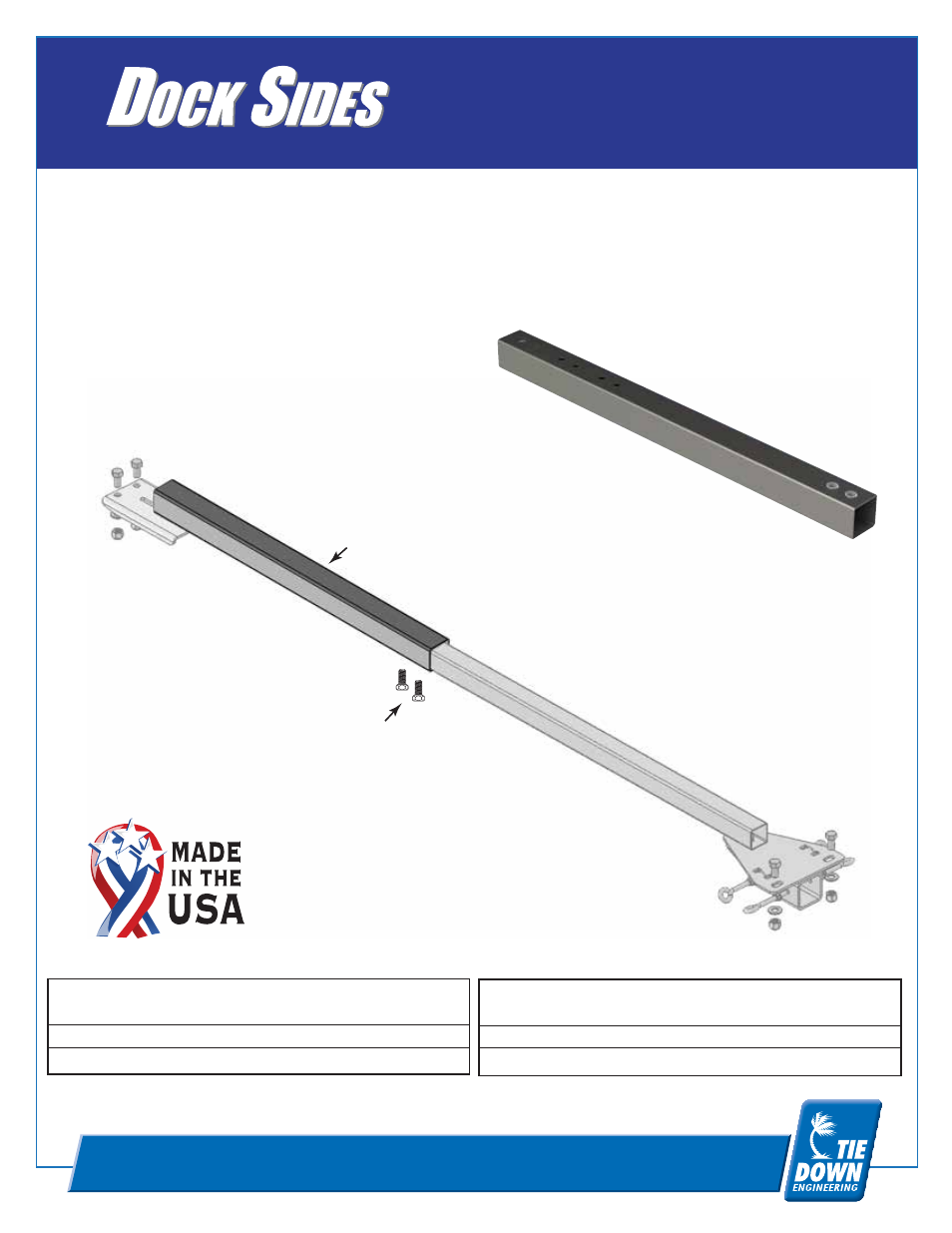

Top View

2

1

Tools Required:

9/16” Wrench or Socket and

assistance will be needed

to secure cross beam.
