Page 8

NOTE: If you have stainless steel wear sleeves, use the following instructions:

When installing turbo lube hubs on an existing axle that has stainless steel wear
sleeves, apply a high temperature silicone sealant like “RTV” (NOT INCLUDED) to the
inside and outside area where the seal meets the spindle surface. Allow sealant to
fully “CURE” before assembly. This must be done to prevent potential oil leakage under
the wear sleeve.

Fill Level - Bottom of file hole

Seal

Bearing

Cups

Spindle

Nut

Cotter

Pin*

Oil Plug

Turbo

Lube

Cap

O-Ring

Flange

Lock*

Thrust

Washer

* Hub kit contains either cotter

pin or flange lock

O-Ring

Oil Cap, View

current oil level

Oil filling plug, no

need to remove cap

Triple lip, spring

loaded oil seal

Completely sealed oil

reservoir chamber permits

maximum lubrication

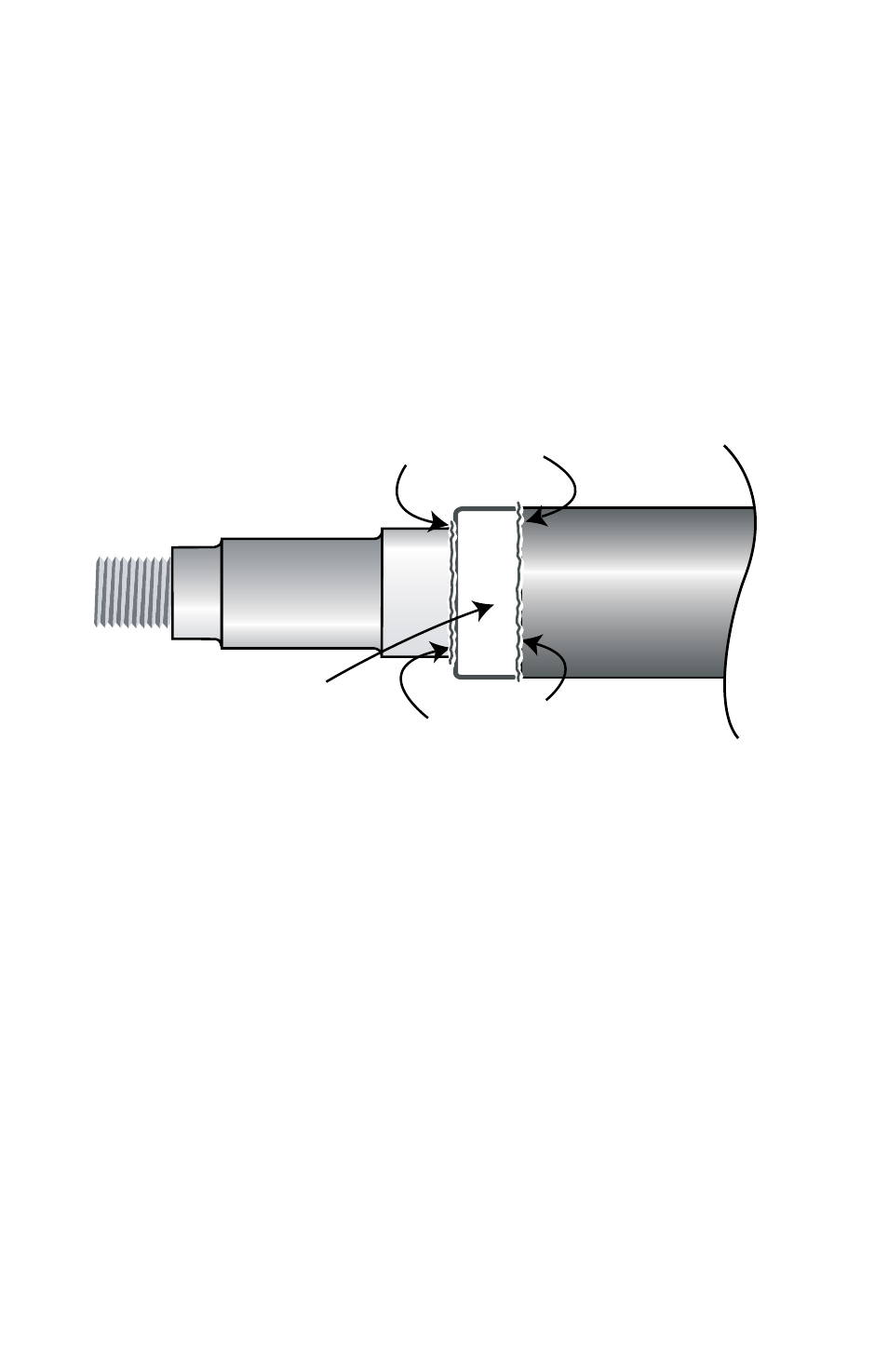

Apply Here

Stainless Steel

Wear Sleeve

Spindle

Stainless Steel Wear Sleeve Instructions
