Page 5

7
5
5
3
3
Jam Nut
Bushing
3
5
5
1
1
2
11
6
8
9
10
10
12
13

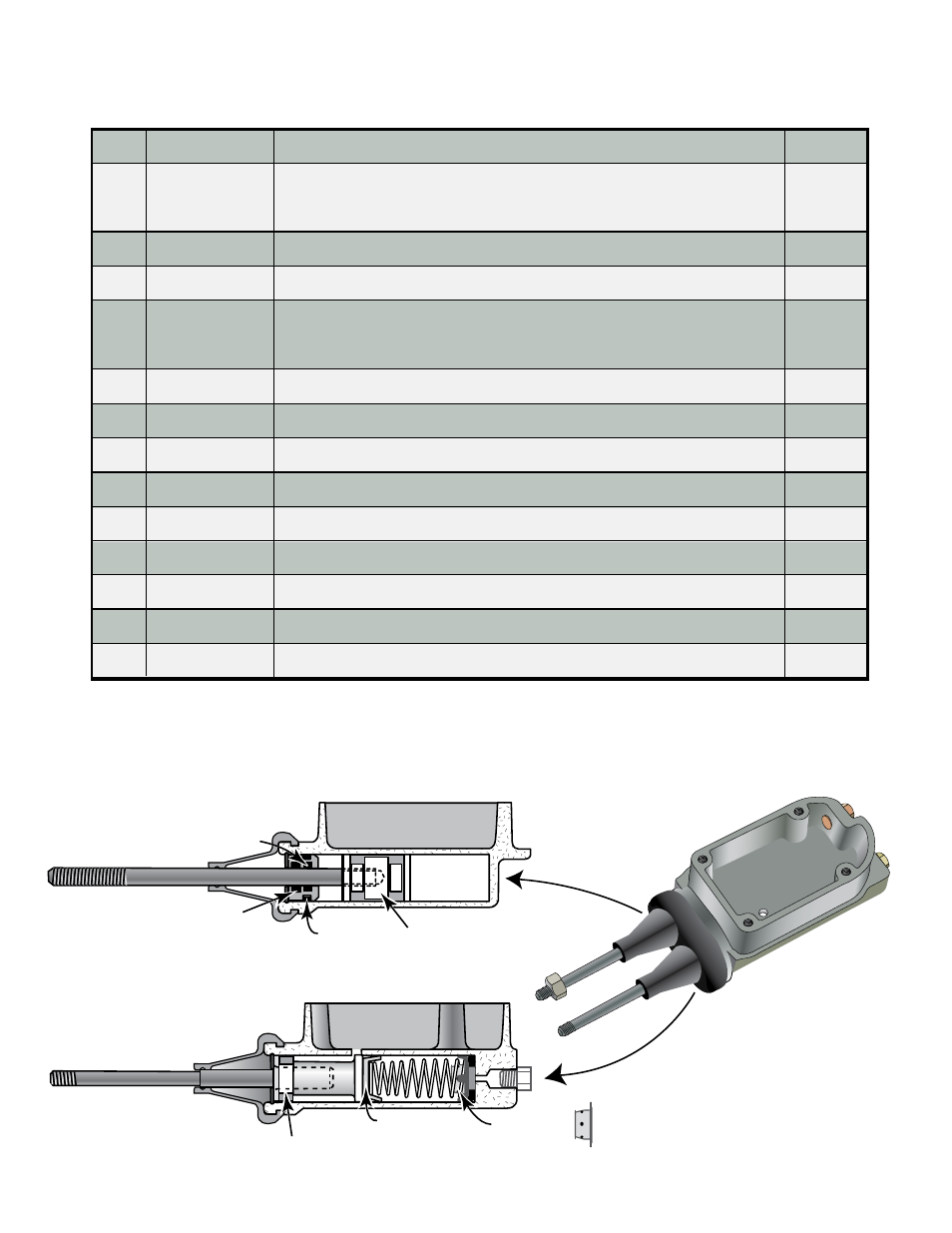

Model 75LP Actuator Parts List
Master Cylinder Cross Section
Dampener Cross Section
O-Ring
Wiper Seal
Damper Piston
O-Ring
Piston Seal
Piston Cup
Seal
Check Valve
See
Caution!
Caution!
NOTE: The jam nut has a lower profile, and
is thinner than a standard nut.
Caution! Do not use pneumatics with
medium or high torque ratings! Use
only low torque pneumatics, (1/4" drive
butterfly or ratchet wrench recommended)
Torque jam nylock nut to 15-20 ft/lbs
MAXIMUM.
050506,b866
050506,b866
Tie
Dow
n
Engineer
ing
Use Only
DO
T8
Fluid
4
4 - Coupler Assembly/Latch Kit
with Master Cylinder
Optional
Model 75LP
Trailer Actuator
Part Diagram
Note: The check valve has been
removed in "Disc Brake"
Models 47227 & 47228
Item
Part #
Description
Quantity
1 47267 (Disc*)
Master Cylinder Assembly - Includes all nuts, baffle, all seals,
O-rings, gaskets & seals (*check valve removed)
1
2 47259
Safety Stop & Spring
1
3 47254
Latch Kit Assembly Low Profile
1
4
17025
Coupler Housing & Latch Kit(3) Low Profile Assembly
1
47258
Coupler Housing & Latch Kit(3) with Master Cylinder Assembly(1)
5 47255
Roller Kit includes - Includes all rollers, pins, bushings & nuts
1
6
50304
Cable Assembly (Breakaway)
1
7 47256
Safety Pin Cable with bracket & screws
1
8 48804
Master Cylinder Fill Cap with internal bladder
1
9 48759
Fill Cap Cover
1
10
12138
Button Head Torx Screws 1/4"-20 x1"
4
11
48762
Actuator Housing
1
12
11253A
Solenoid with Return Tube (optional)
1
13
11262
Solenoid Return Tube
1
