Tie Down 70E User Manual
Page 8
111802,366
Instructions for Bleeding Tie Downs
Model 66, 70 & 80 Actuators
Normal Operation
Emergency Stop Position
TIE DOWN ENGINEERING • 255 Villanova Drive SW • Atlanta, GA 30336
www.tiedown.com (404) 344-0000 Fax (404) 349-0401
Tie Down's actuators feature a shock dampener that uses brake
fluid from the master cylinder. The dampener must be primed
before bleeding or using trailer. To prime the dampener, fill the
master cylinder with DOT 3 brake Fluid. Push the coupler into the
housing and slowly pull out 3 times, then refill master cylinder.

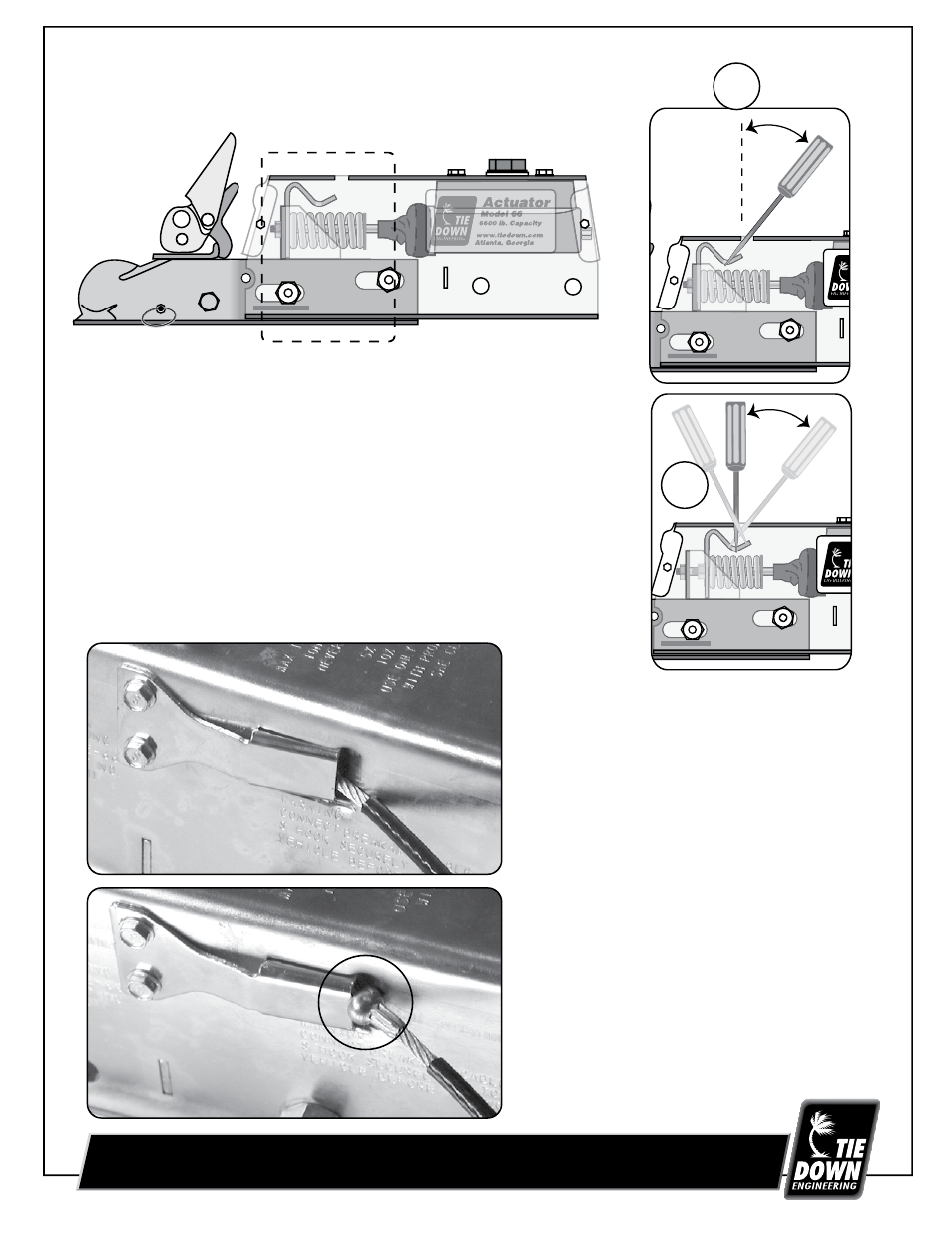

To pump master cylinder, insert a flat tip screwdriver into the round
hole near the front of the actuator cover. (picture 1) Screwdriver tip
will fit into the slot provided in the emergency brake bracket as
shown. Push the screwdriver forward and back to pump the master
cylinder. (picture 2).
1
2
WARNING: If button stop cable is showing
DO NOT TOW TRAILER
Release emergency stop cable by prying
spring out with a flat blade screw driver.
Botton Stop
