Tie Down 70E - Manual (Page 5)

2
2
2
2
2
2
2
4
4
1
1
6
5
8
7
8
9
11
13
12
10
4
3

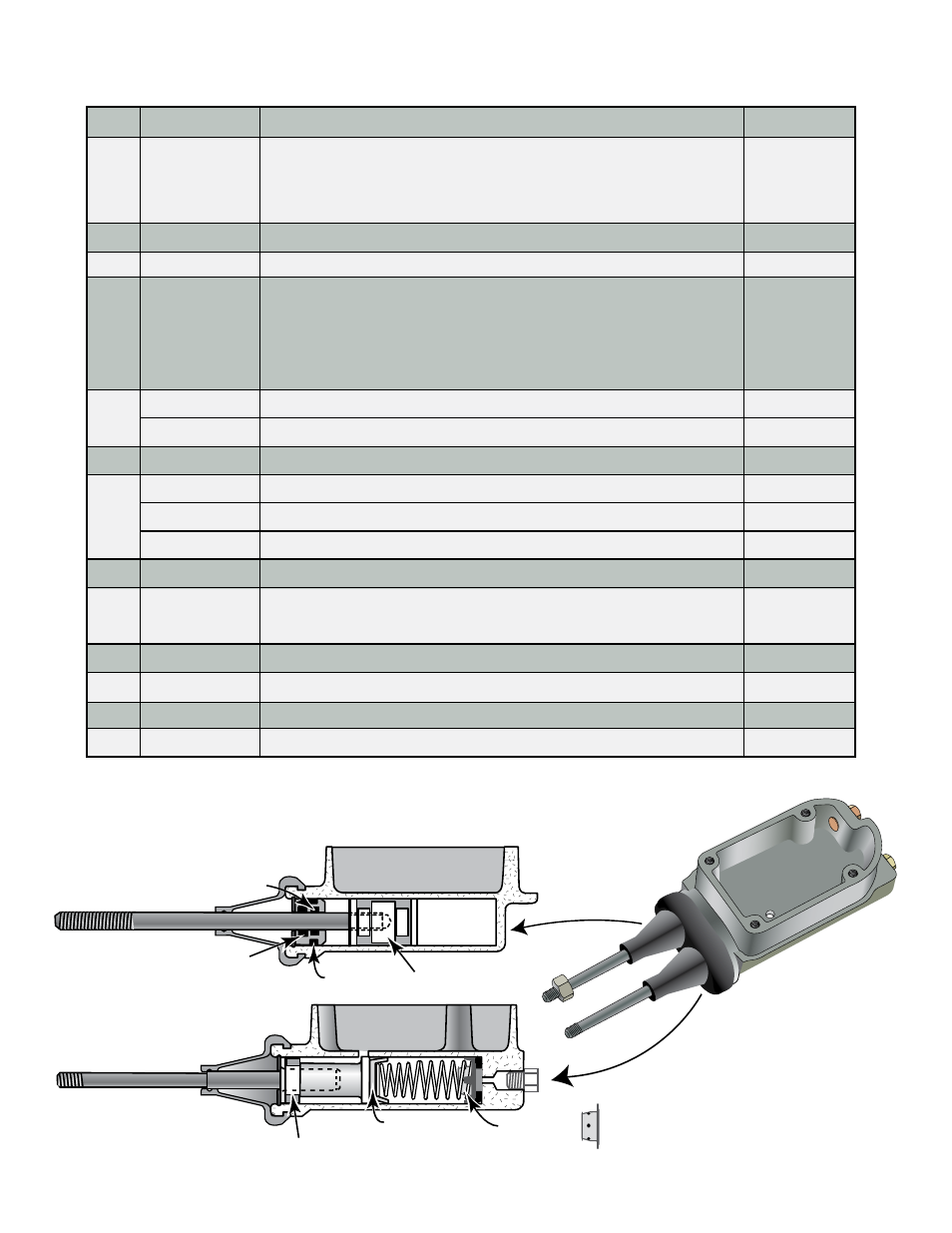

Master Cylinder Cross Section
Dampener Cross Section
O-Ring
Wiper Seal
Piston Seal
Damper Piston
Piston Cup
Seal
Check Valve
O-Ring
Note: The check valve has been
removed in "Disc Brake"
Models 47204 & 47205
Model 70, 70-3/4 & 70E Actuator Parts List
Item Part # Description Quantity
1 47268 (Drum) Master Cylinder Assembly - Includes all nuts, baffle,
47260 (Disc*) all seals, O-rings, gaskets & seal 1
* Check valve has been removed in models 47204, 47205 & 47213
2 47261 Latch Kit Assembly 1
3 48801-1A Coupler Housing 1
4 47263 Roller Kit includes: 1
1/2" X 4 Grade 5 Super Lubed Bolts (2)
1/2" Hex Center Lock Nut (2)
Rollers (2)
5 50305 Cable Assembly (Breakaway) with button stop 1
50302 Cable Assembly (Breakaway) (for serial #’s 16020 and below) 1
6 50301 Safety Pin Cable 1
7 48815 Actuator Assembly Housing Model 70 1
47213-1 Actuator Assembly Housing Model 70-3/4 1
48816 Actuator Assembly Housing Model 70E 1
8 47264 Actuator Covers Kit (front & back covers & 4 screws) 1
9 47265 Screw Kit, includes: 1
1/4" - 20NC X3/4" Hex Bolt (4)
10 48804 Master Cylinder Cap with internal bladder 1
11 48845 Safety Cable Spring with screws 1
12 11253A Solenoid & Return Tube (optional) 1
13 11262 Solenoid Return Tube 1
080907,C447
1
Latch
Coupler
Ball
Adjusting
Nut
Safety Lock
Hole
Note: When the coupler is placed on the ball,
the latch should close firmly. If it feels loose
or too tight, the adjustment nut should be
turned to correct the fit.
Tie Down
Engineerin
g
Use Onl
y
DOT8 Fluid
