8
CONFIGURING THE PTR/DTR

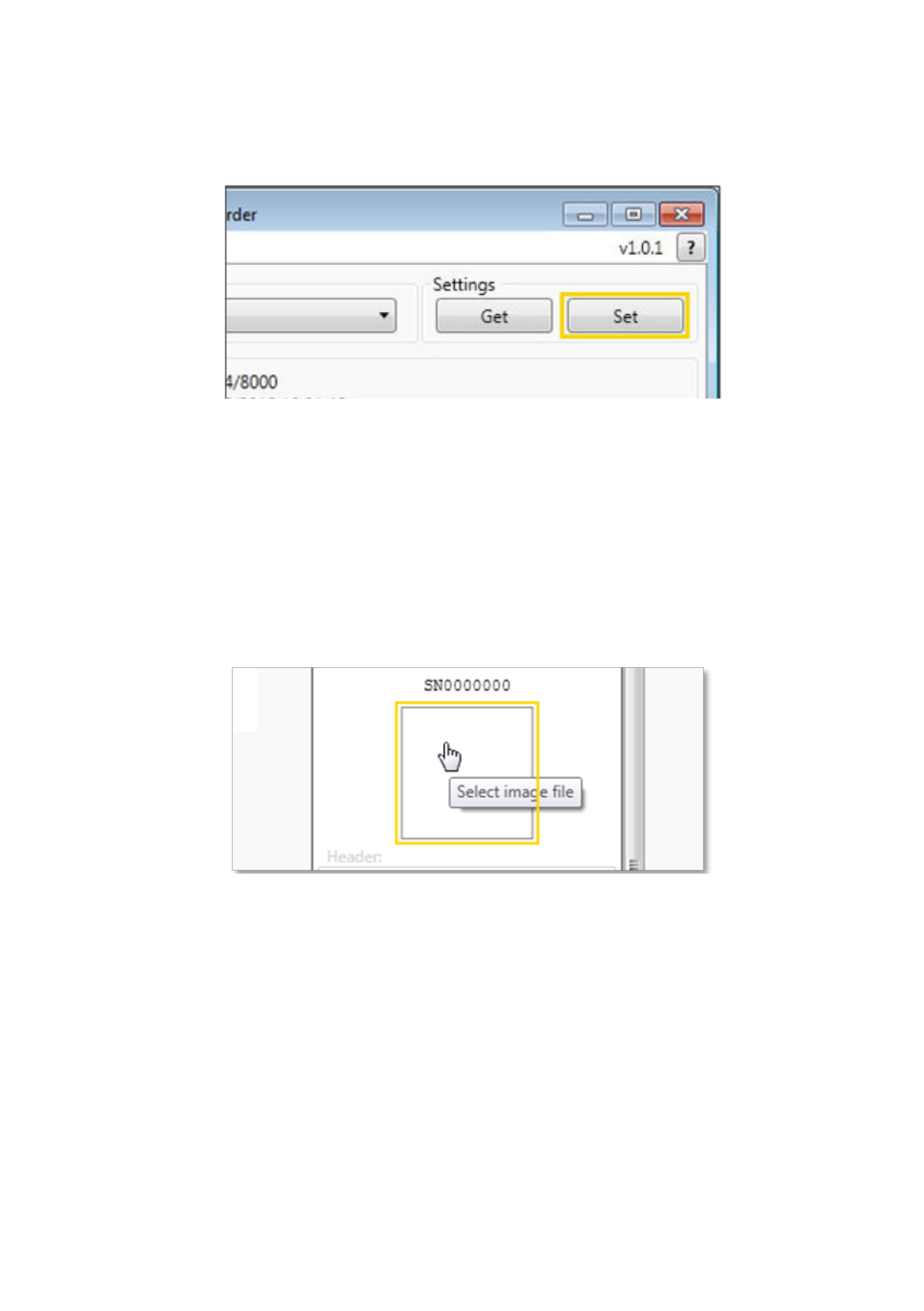

To configure the PTR/DTR with the current ticket layout and settings, click the
'Set' button in the 'Settings' section.
Do not disconnect device from the PC until operation complete.
MODIFYING THE TICKET LAYOUT
SELECTING AN IMAGE
To select an image to be displayed on the ticket, hover the mouse cursor over
the image area or existing image in the 'Ticket layout' section. The cursor will
change to a hand shape and clicking on the area or image will show the 'Select
image' dialogue box.
Select an image file from the PC and click 'Open'.
The PTR/DTR can only print black and white so the image will be converted
to black and white. If contrast adjustment is needed, use the slide control. To
make the image lighter slide the control to the left. To make the image darker
slide the control to the right.
