FieldPilot
®

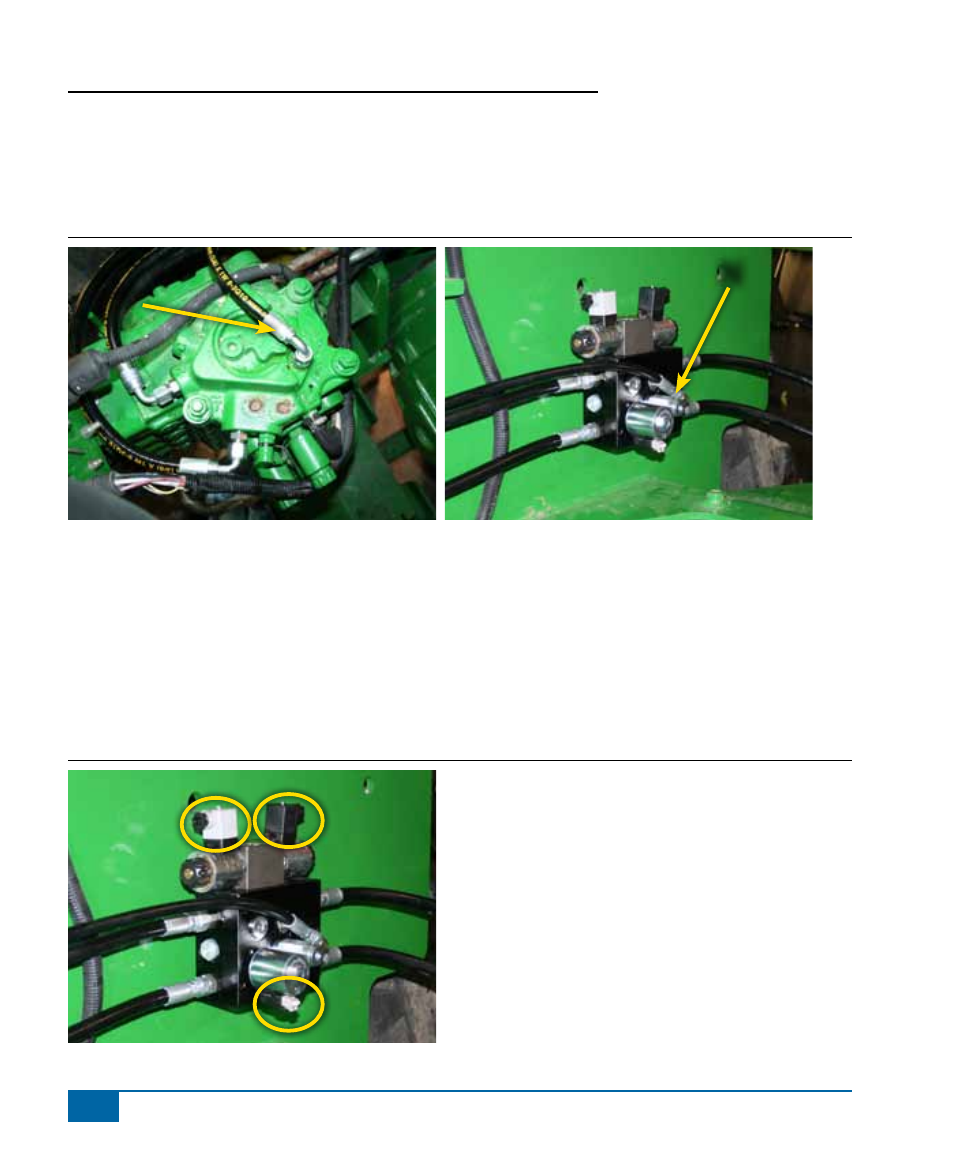

10. install the ls hOse
Attach the 90° end of the hose
(N)
to the LS port on the hydraulic stack. Connect the other end to the LS port on
the FieldPilot valve.
Figure 1-23: Installing the LS Hose
n
n
11. install the ValVe cOntrOl caBle
The valve cable exits the cab in the left rear through a grommet under the rear cab window. Install the electronic
valve control cable
(F)
at the FieldPilot valve by attaching the DIN connectors to the individual coils. Attach the
two position DT connector to the master solenoid.
NOTE: If the vehicle automatically steers the wrong way when it is tested, exchange the connector positions.
Route this cable through the rear window of the cab and forward along the floor. Secure with tie wraps as
necessary.
Figure 1-24: Installing the Valve Control Cable
NOTE: Be sure to leave enough slack in this cable
for the vehicle to articulate around its pivot
point without putting a strain on the cable, or
damage to the cable may result.
