FieldPilot ®
Specific Cautions
The two adapters (U & X) look almost identical and can be easily confused with each other. Adapter (X) has
metric threads and can be identified by the raised O-ring flange as indicated in the picture. If adapter (X) has a
metal washer included, it must be removed before installing adapter (X) .

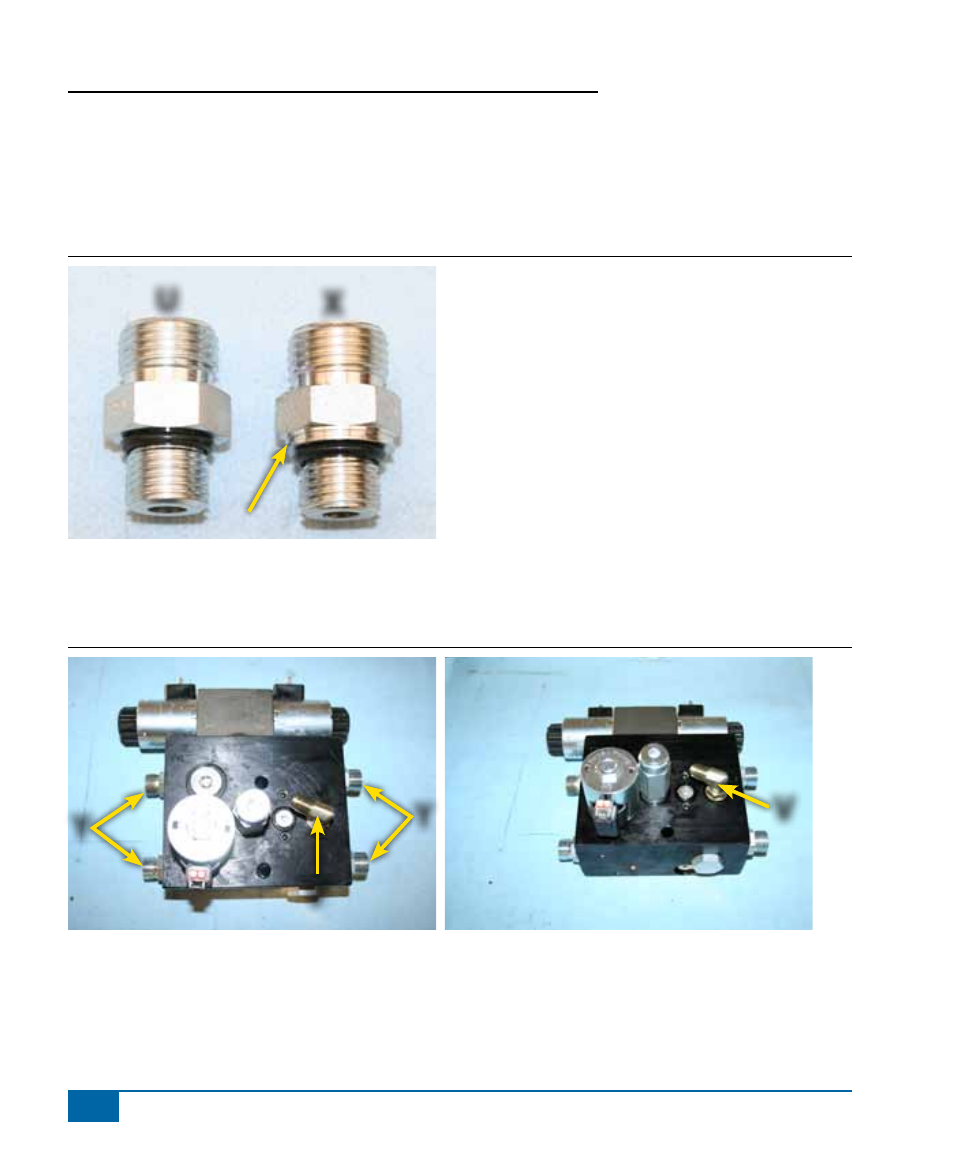

Figure 1-6: Preparing the FieldPilot Valve
U X
1. PrePare the FieldPilOt ValVe
Install adapter (Y) in the A, B, P and T ports of the FieldPilot valve. Install adapter (V) in LS port.
Figure 1-7: Preparing the FieldPilot Valve
Y
V
Y
V
