FieldPilot

®

98-05217 R3

Version Deluxe

Remove the plugs or test ports from the T, LS, and P ports. Install adapters

(X)

in the T, LS & P ports. Remove

the three bolts holding the SCV cover and remove the cover from the SCV stack. Install set screw

(I)

into the

threaded port as indicated. Then reinstall the cover on the SCV stack.

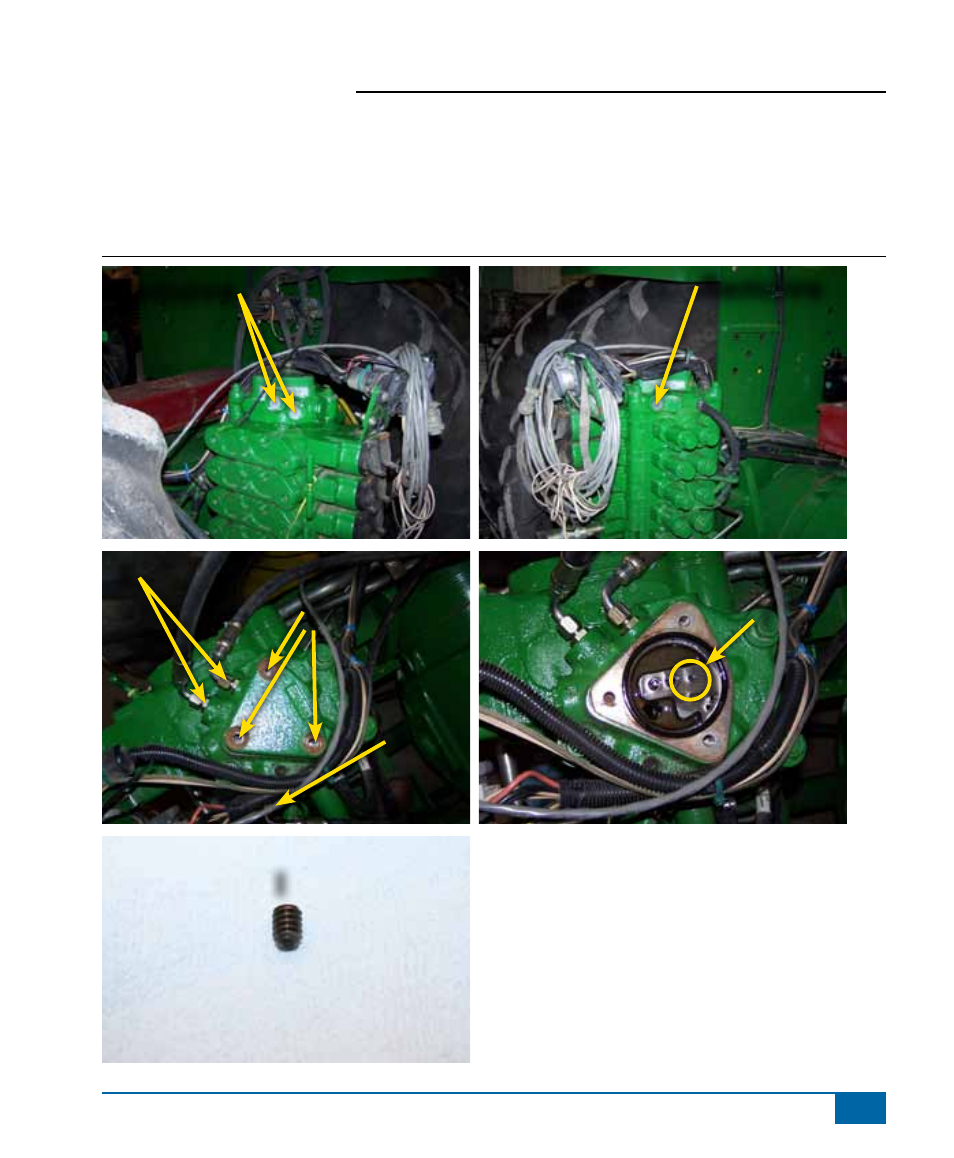

Figure 1-19: Preparing the SCV Stack

Remove

Remove

X

X

Remove

bolts

i

i
