FieldPilot

®

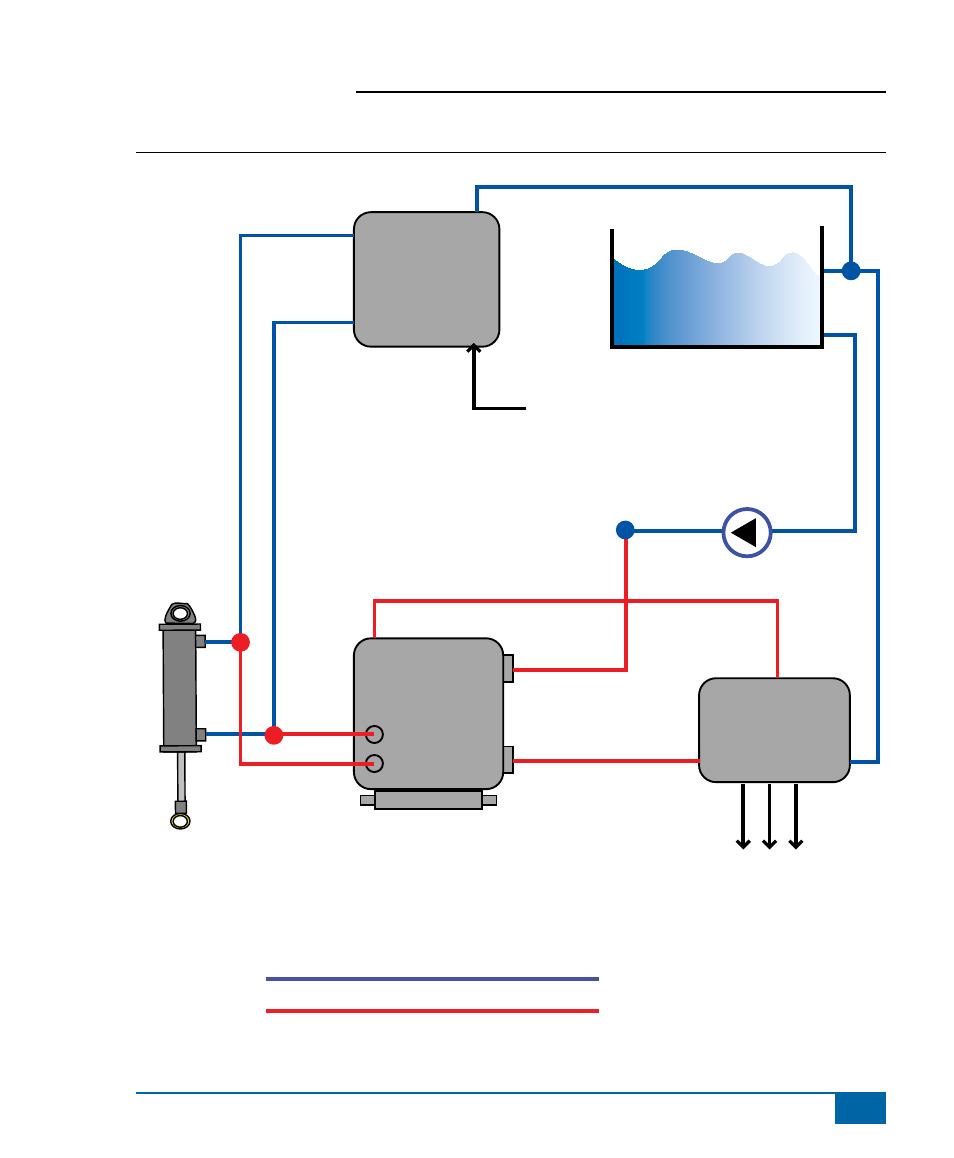

Figure 1-1: Hydraulic Diagram

Existing Hoses

Hoses From Kit

Hose M

Hose J or K

Pressure into Orbital

Out to

Boom Functions

Hose M

Hose I

Hose L

T

T

P

John

Deere

Manifold

L

T

R

P

Manual

Steering

Valve

A

T

P

EF

FieldPilot

Valve

B

Auxiliary

Pump

Tank
