Page 11: Mount the fieldpilot valve
www.teejet.com
9
FieldPilot
®
2. install the FieldPilot ValVe Bracket
The valve bracket will mount on the left side on the rear of the vehicle on the railing. Remove the two bolts
as shown and install bracket
(H)
using the original bolts.

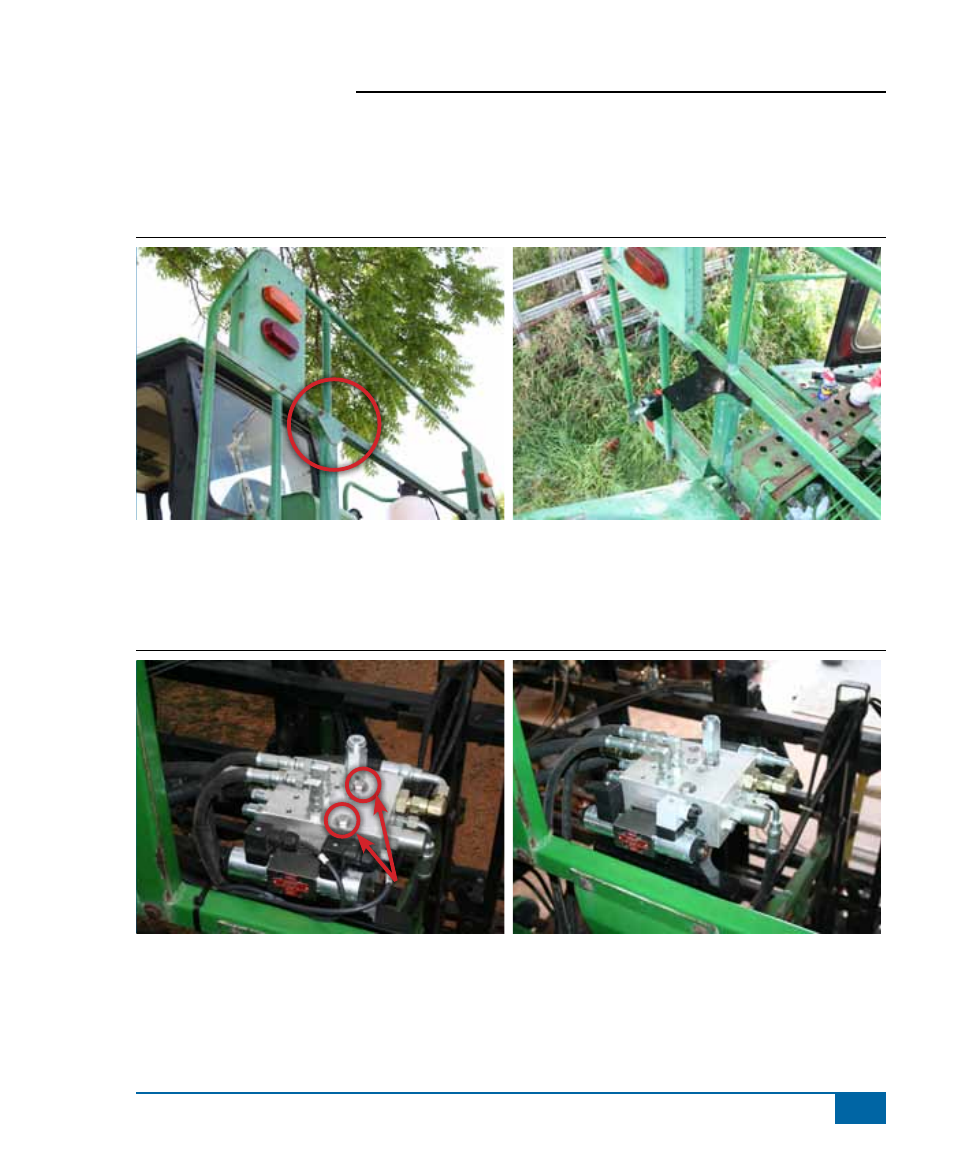

Figure 1-3: Install Mounting Bracket for FieldPilot Valve
3. Mount the FieldPilot ValVe
Mount the FieldPilot Valve to the bracket using parts
(B, F, & G)
. Mount it so that the P and T ports are
facing left and the EF port is facing right.
Figure 1-4: Mount the FieldPilot Valve
B, F, G
